Section 1867 (Automatic Transmission): Disassembly: Disassembly

WARNING: This page is about a different car, the 2006 Nissan Xterra. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: Do not disassemble parts behind Drum Support. Refer to "CROSS-SECTIONAL VIEW ".

Drain ATF through drain plug.

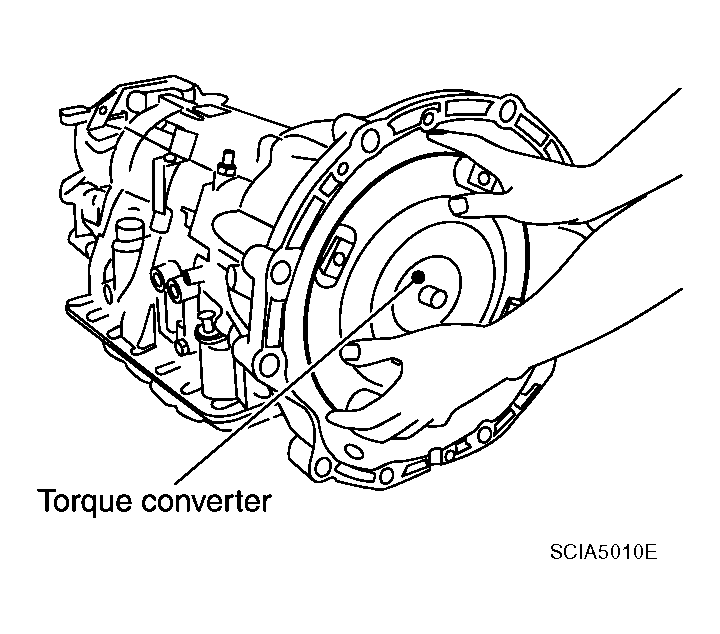

Remove torque converter by holding it firmly and turning while pulling straight out.

Fig 1: Removing Torque Converter
Courtesy of NISSAN MOTOR CO., U.S.A.

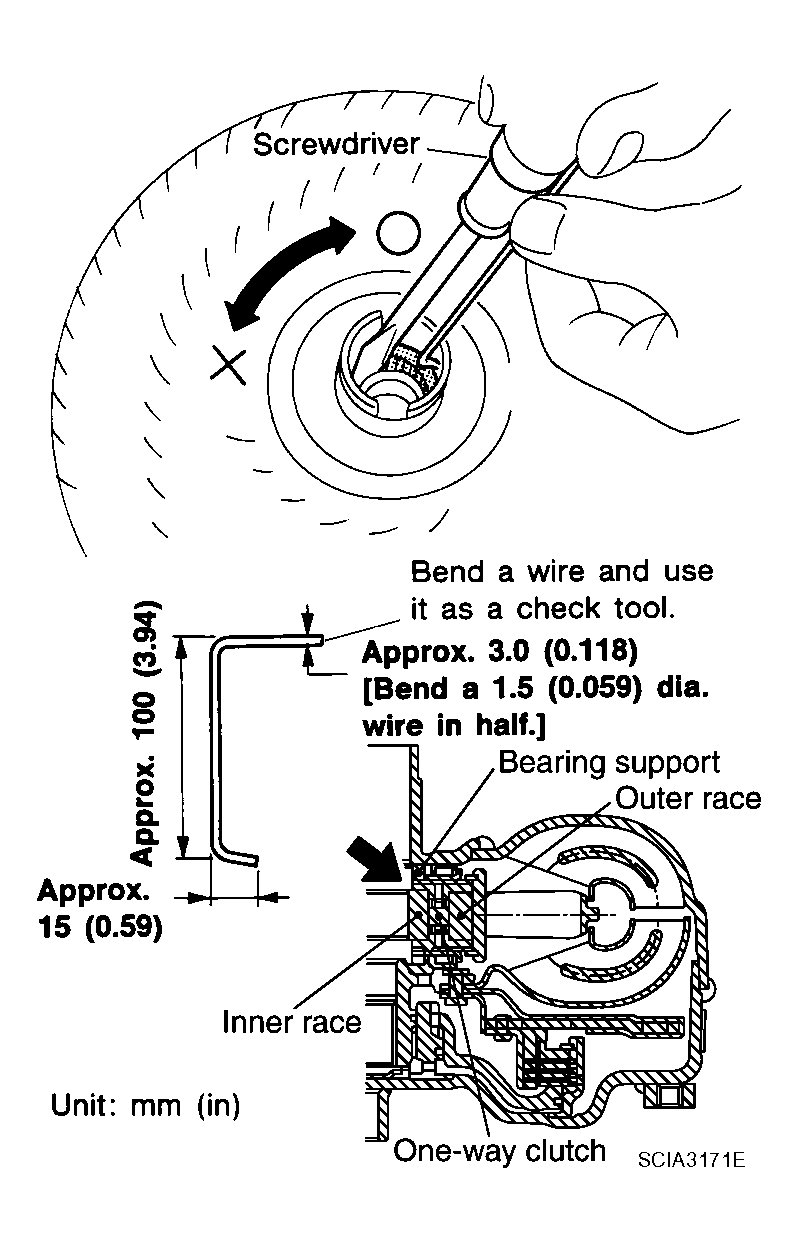

Check torque converter one-way clutch using a check tool as shown.
1. Insert a check tool into the groove of bearing support built into one-way clutch outer race.
2. When holding bearing support with a check tool, rotate one-way clutch spline using suitable tool.
3. Make sure that inner race rotates clockwise only. If not, replace torque converter assembly.
Fig 2: Inserting Check Tool Into Groove Of Bearing
Courtesy of NISSAN MOTOR CO., U.S.A.
Remove converter housing from transmission case.
CAUTION: Do not scratch converter housing.

Fig 3: Identifying Converter Housing From Transmission Case
Courtesy of NISSAN MOTOR CO., U.S.A.

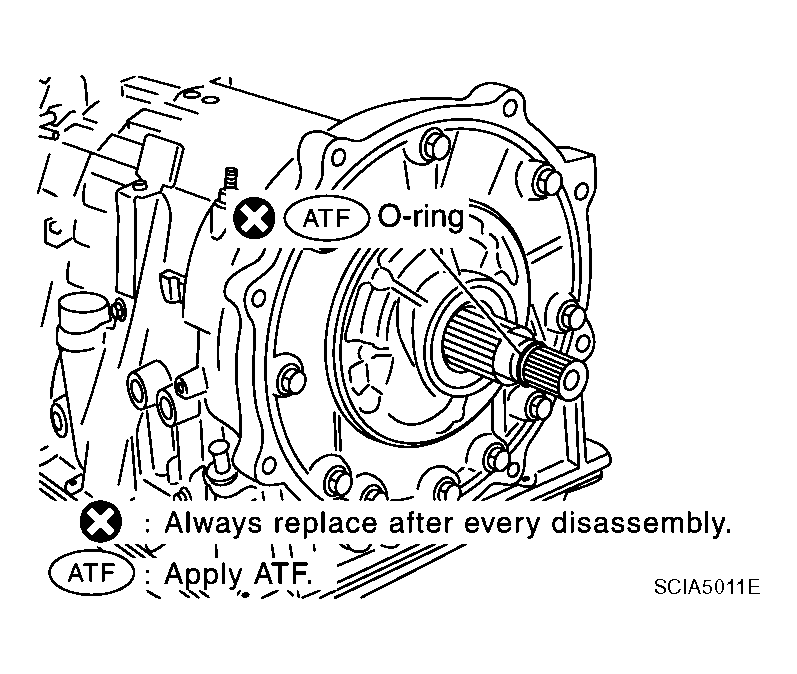

Remove O-ring from input clutch assembly.

Fig 4: Identifying O-Ring From Input Clutch Assembly
Courtesy of NISSAN MOTOR CO., U.S.A.
Remove bolts for oil pump assembly and transmission case.

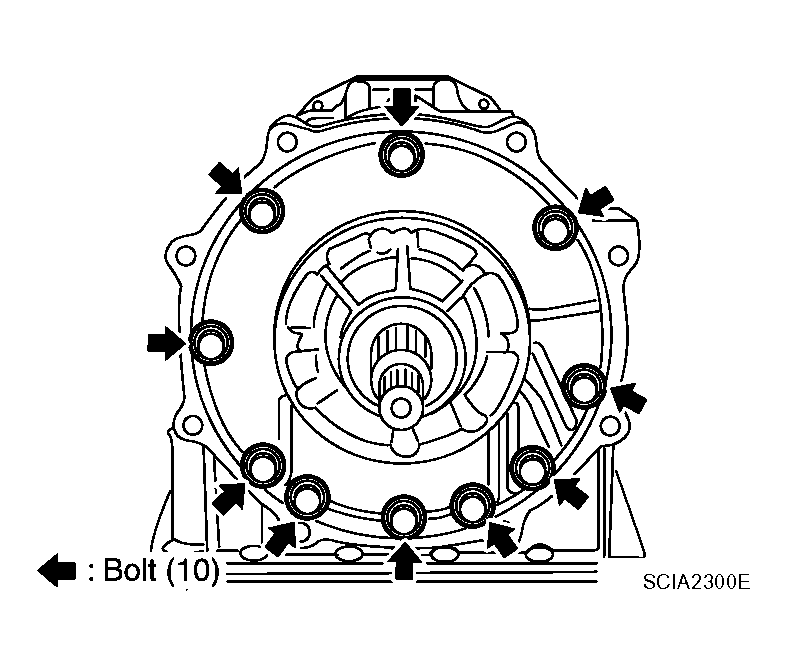

Fig 5: Identifying Bolts For Oil Pump Assembly And Transmission Case
Courtesy of NISSAN MOTOR CO., U.S.A.

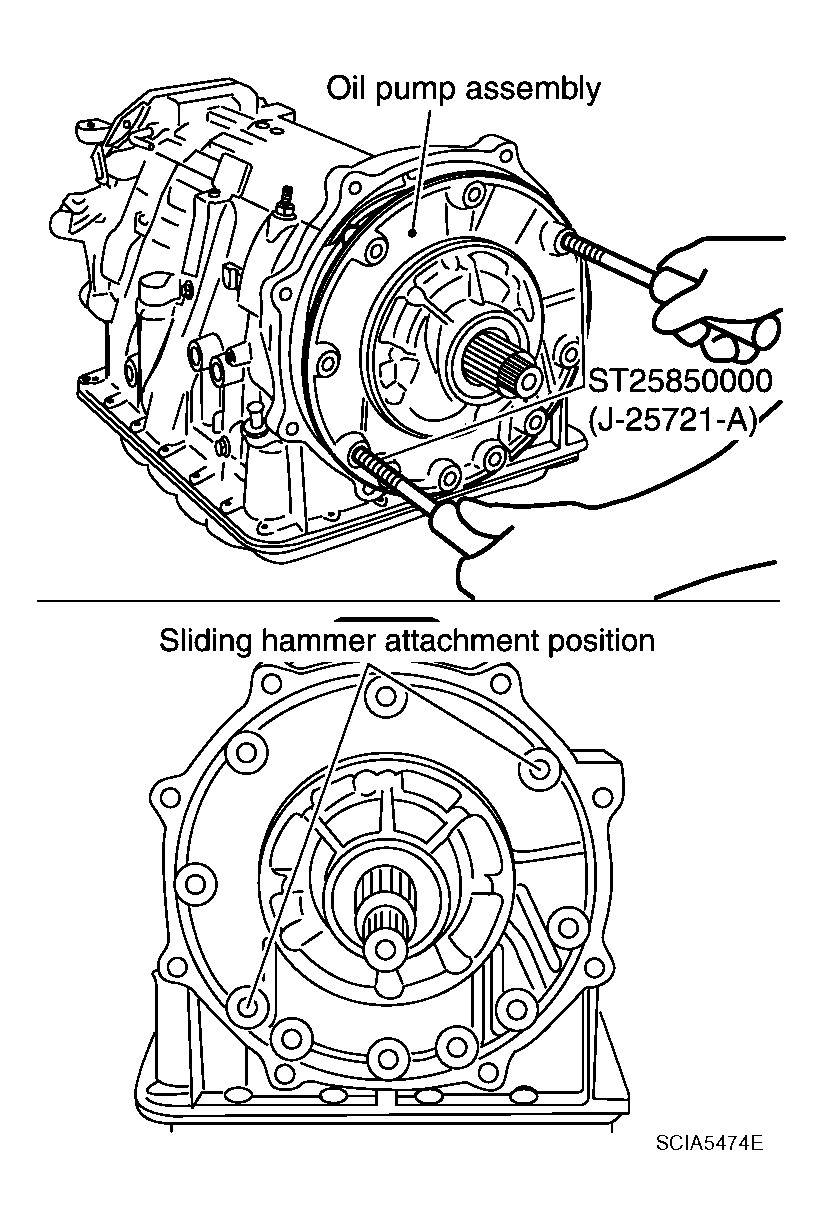

Attach the Tool to oil pump assembly and extract it evenly from transmission case.
Tool number: ST25850000 (J-25721-A)
CAUTION:
- Fully tighten the Tool.
- Make sure that bearing race is installed to the oil pump assembly edge surface.
Fig 6: Installing Tool To Oil Pump Assembly
Courtesy of NISSAN MOTOR CO., U.S.A.

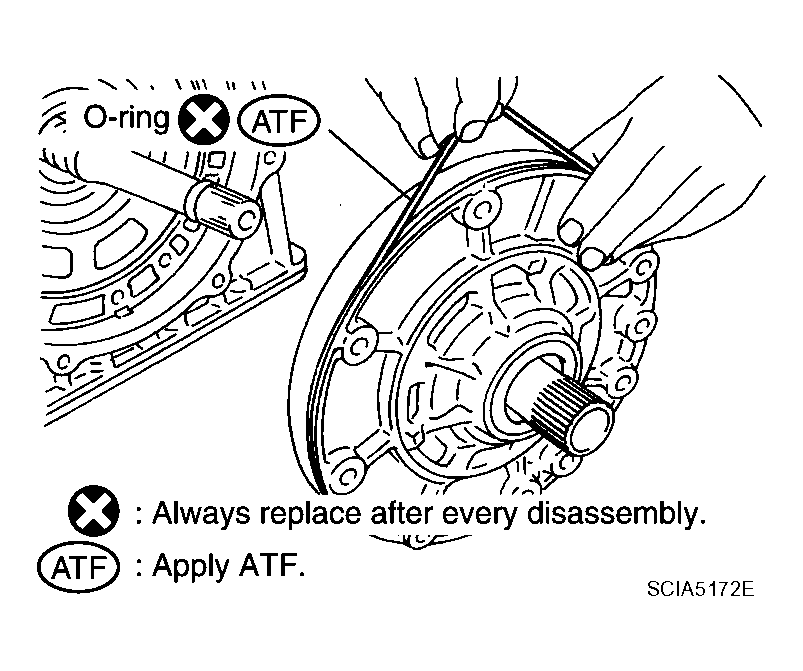

Remove O-ring from oil pump assembly.

Fig 7: Removing O-Ring From Oil Pump Assembly
Courtesy of NISSAN MOTOR CO., U.S.A.

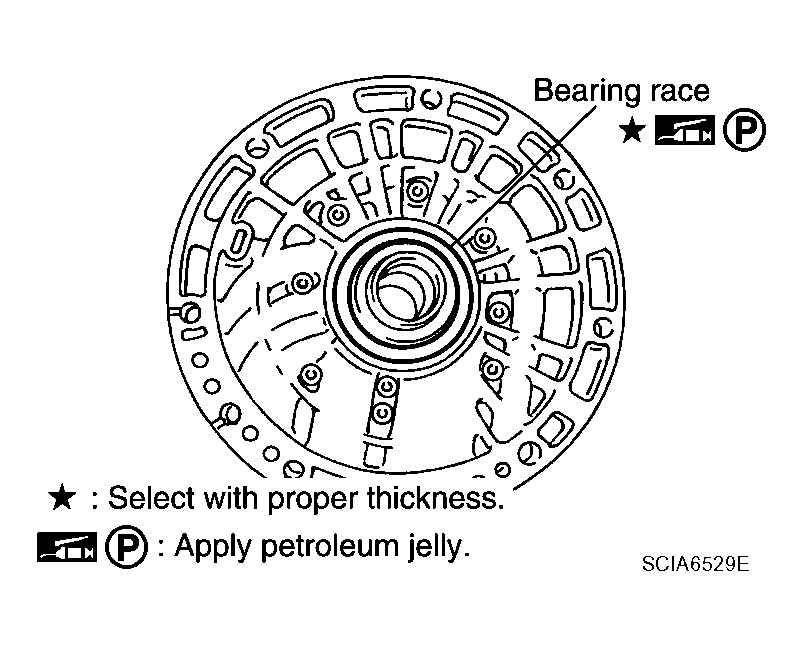

Remove bearing race from oil pump assembly.

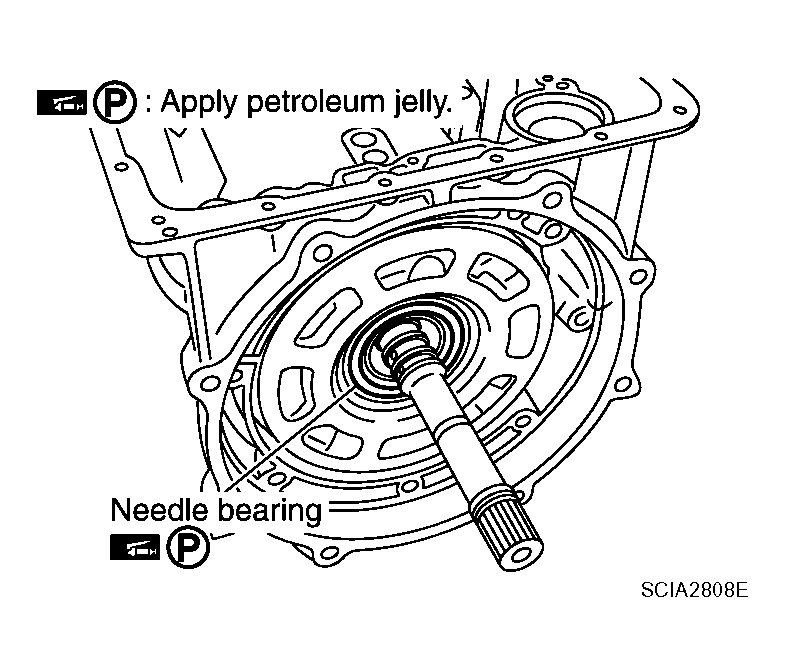

Fig 8: Identifying Petroleum Jelly From Oil Pump Assembly
Courtesy of NISSAN MOTOR CO., U.S.A.
Remove needle bearing from front sun gear.

Fig 9: Identifying Petroleum Jelly From Front Sun Gear
Courtesy of NISSAN MOTOR CO., U.S.A.

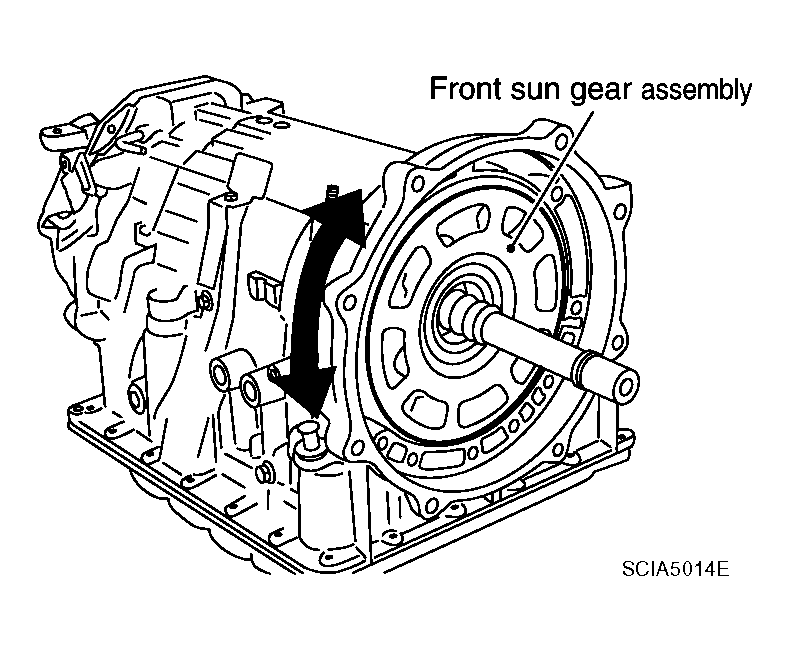

Remove front sun gear assembly from front carrier assembly.
NOTE: Remove front sun gear by rotating left/right.

Fig 10: Identifying Front Sun Gear By Rotating Left/Right
Courtesy of NISSAN MOTOR CO., U.S.A.
Remove seal rings from input clutch assembly.

Fig 11: Identifying Seal Rings From Input Clutch Assembly
Courtesy of NISSAN MOTOR CO., U.S.A.

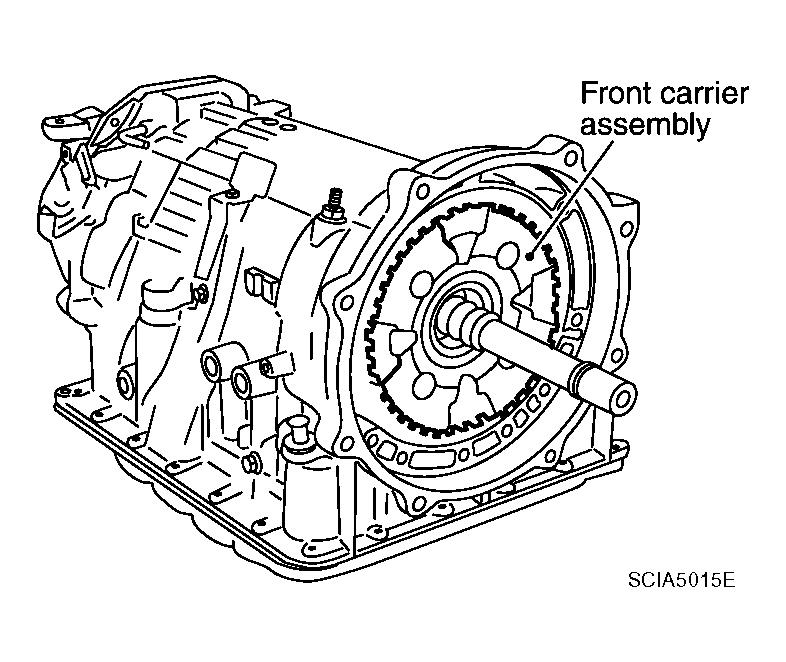

Remove front carrier assembly from rear carrier assembly (with input clutch assembly and rear internal gear.)
CAUTION: Remove front carrier assembly with needle bearing.

Fig 12: Identifying Front Carrier Assembly From Rear Carrier Assembly
Courtesy of NISSAN MOTOR CO., U.S.A.

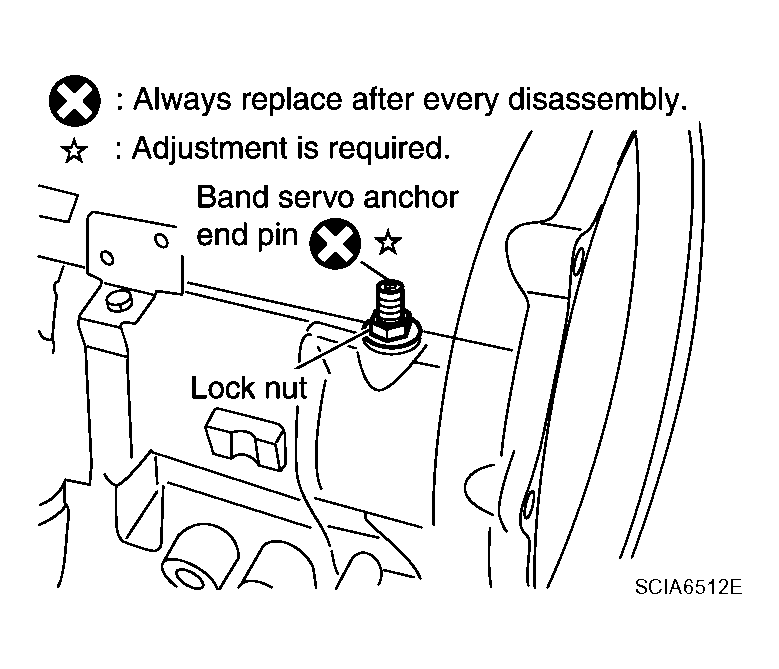

Loosen lock nut and remove band servo anchor end pin from transmission case.

Fig 13: Identifying Lock Nut From Transmission Case
Courtesy of NISSAN MOTOR CO., U.S.A.

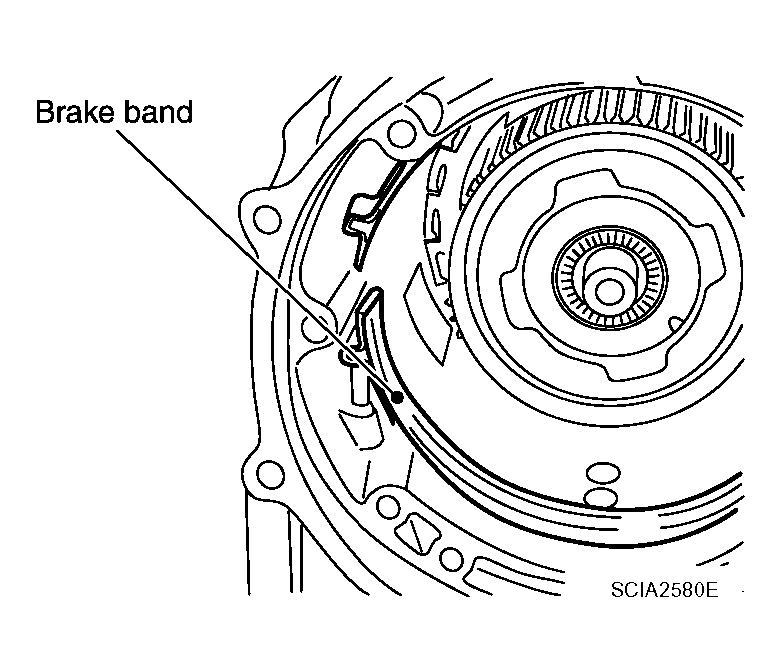

Remove brake band from transmission case.

Fig 14: Identifying Brake Band From Transmission Case
Courtesy of NISSAN MOTOR CO., U.S.A.
- To prevent brake linings from cracking or peeling, do not stretch the flexible band unnecessarily. When removing the brake band, always secure it with a clip as shown. Leave the clip in position after removing the brake band.
- Check brake band facing for damage, cracks, wear or burns.
Fig 15: Identifying Clip
Courtesy of NISSAN MOTOR CO., U.S.A.
Remove mid carrier assembly and rear carrier assembly as a unit.

Fig 16: Identifying Mid Carrier Assembly
Courtesy of NISSAN MOTOR CO., U.S.A.

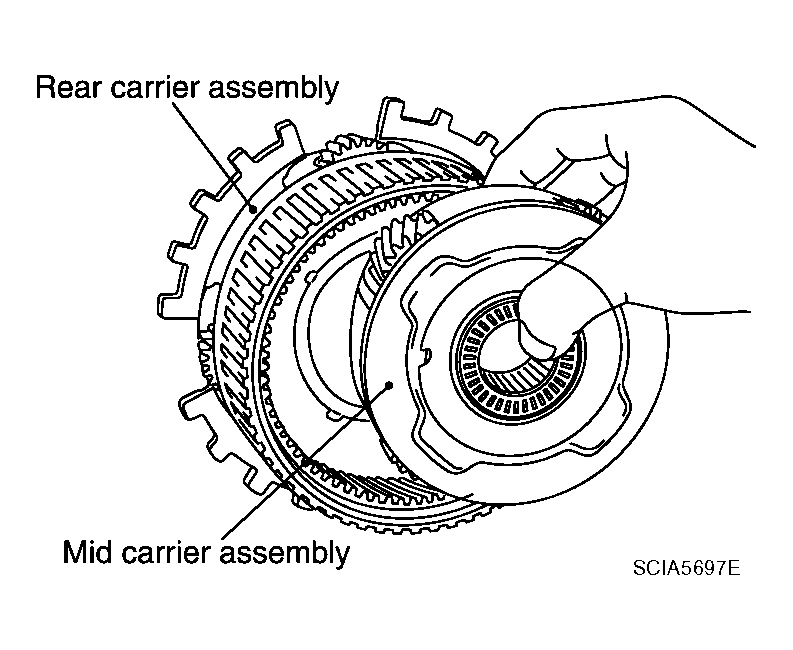

Remove mid carrier assembly from rear carrier assembly.

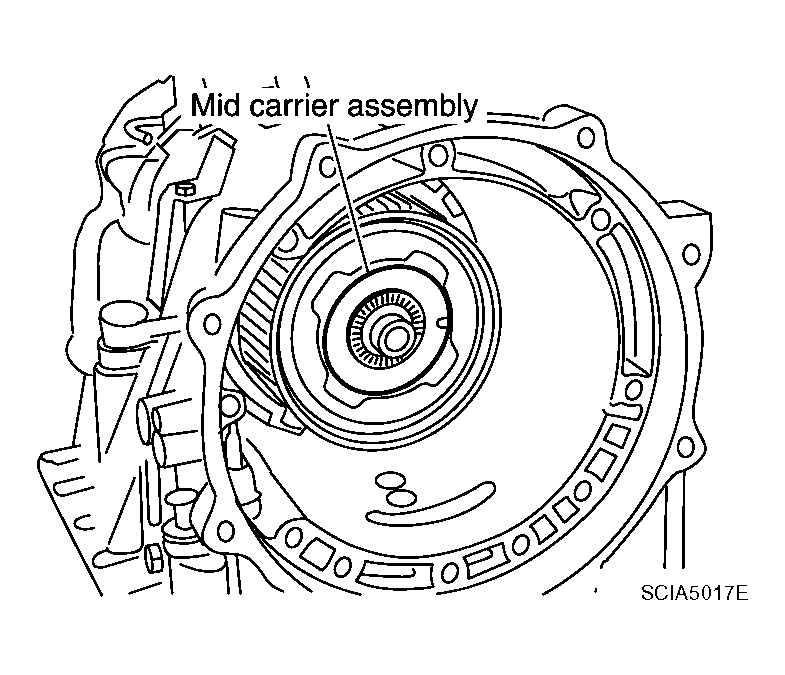

Fig 17: Removing Mid Carrier Assembly From Rear Carrier Assembly
Courtesy of NISSAN MOTOR CO., U.S.A.

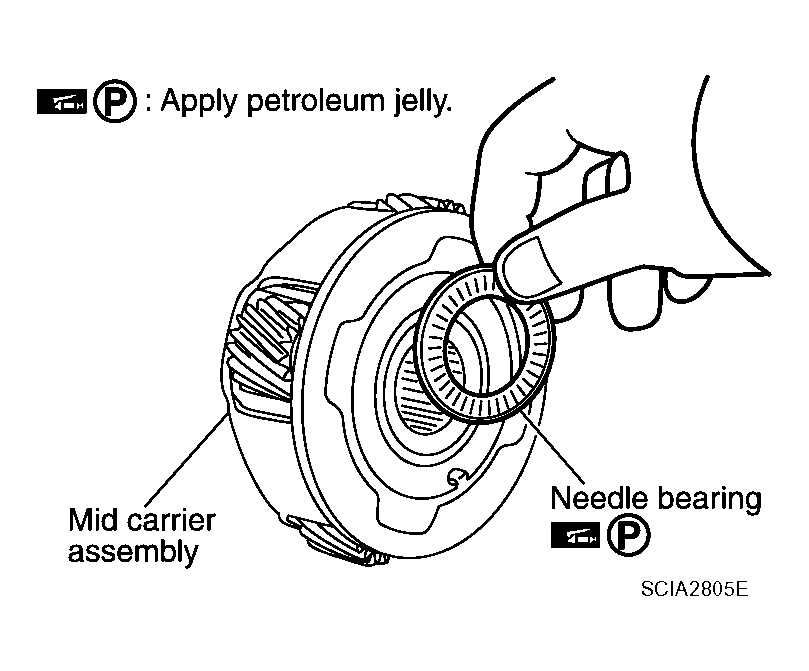

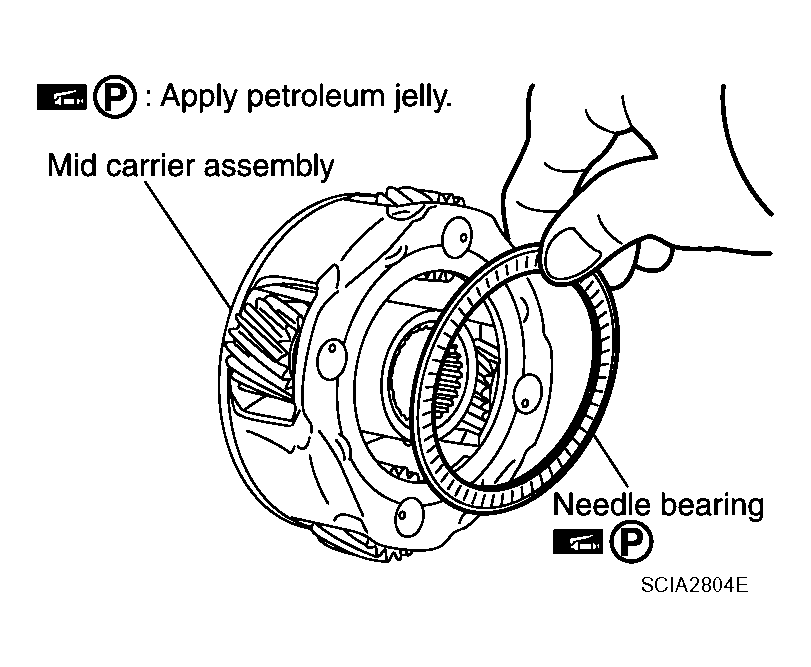

Remove needle bearing (front side) from mid carrier assembly.

Fig 18: Removing Needle Bearing (Front Side) From Mid Carrier Assembly
Courtesy of NISSAN MOTOR CO., U.S.A.
Remove needle bearing (rear side) from mid carrier assembly.

Fig 19: Removing Needle Bearing (Rear Side) From Mid Carrier Assembly
Courtesy of NISSAN MOTOR CO., U.S.A.

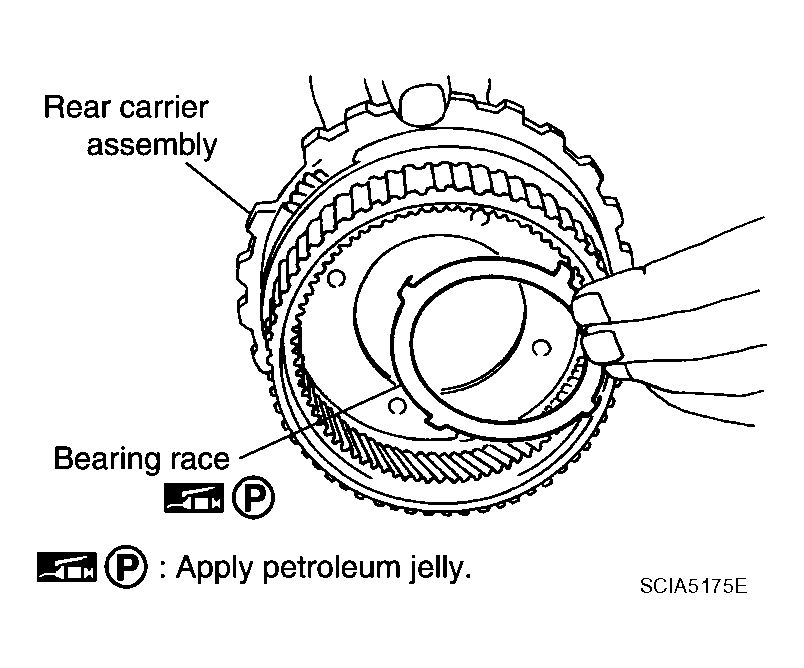

Remove bearing race from rear carrier assembly.

Fig 20: Removing Bearing Race From Rear Carrier Assembly
Courtesy of NISSAN MOTOR CO., U.S.A.

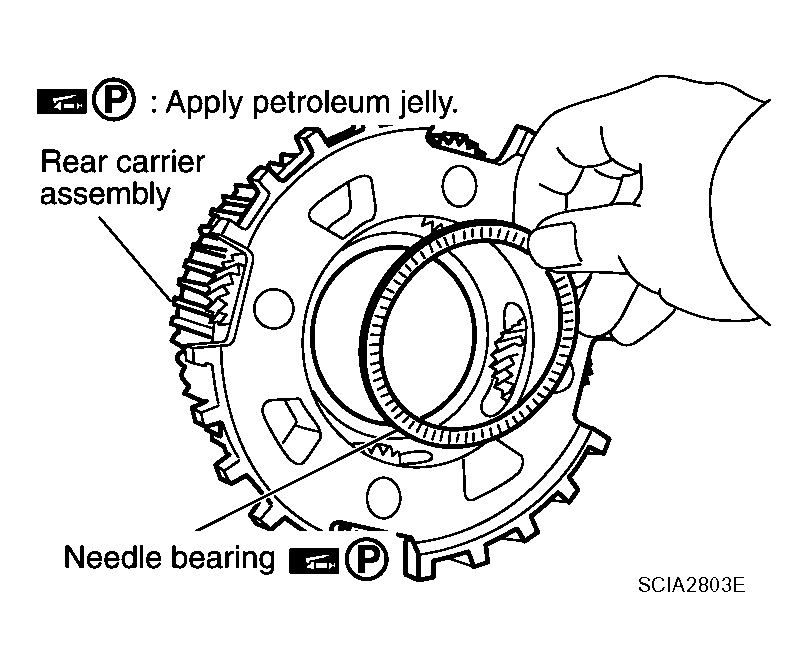

Remove needle bearing from rear carrier assembly.

Fig 21: Removing Needle Bearing From Rear Carrier Assembly
Courtesy of NISSAN MOTOR CO., U.S.A.

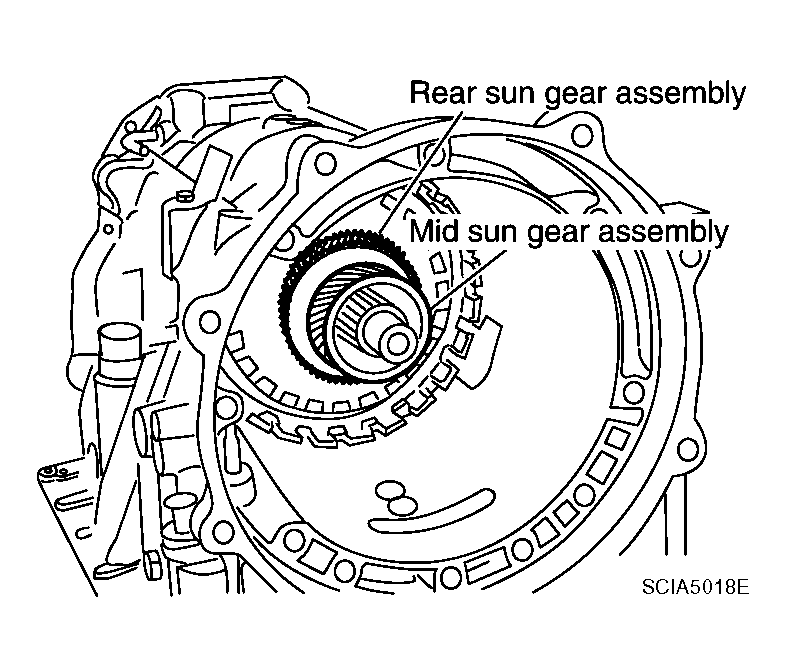

Remove mid sun gear assembly, rear sun gear assembly and high and low reverse clutch hub as a unit.
CAUTION: Remove them with bearing race and needle bearing.

Fig 22: Identifying Mid Sun Gear Assembly And Rear Sun Gear Assembly
Courtesy of NISSAN MOTOR CO., U.S.A.
Remove high and low reverse clutch assembly from direct clutch assembly.
CAUTION: Make sure that needle bearing is installed to the high and low reverse clutch assembly edge surface.

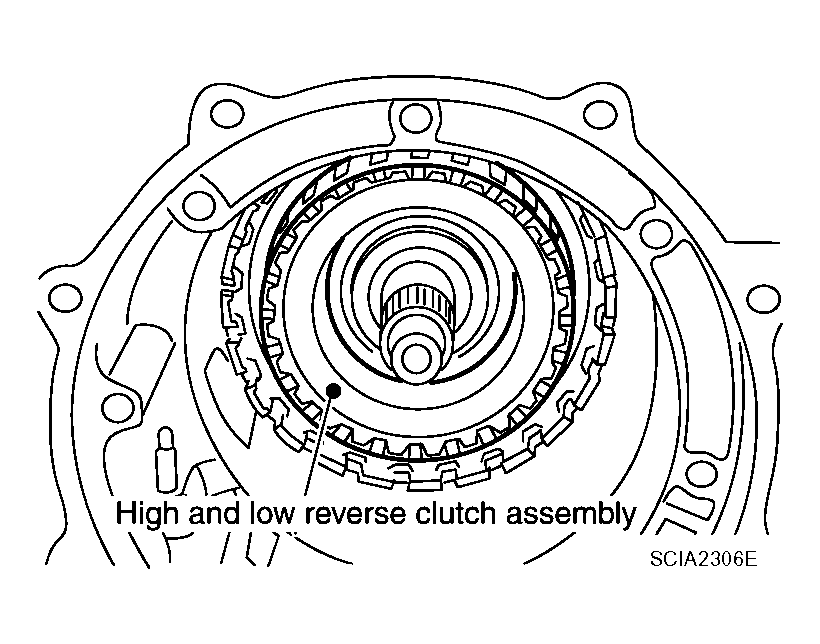

Fig 23: Identifying High And Low Reverse Clutch Assembly
Courtesy of NISSAN MOTOR CO., U.S.A.
Remove needle bearing from drum support.

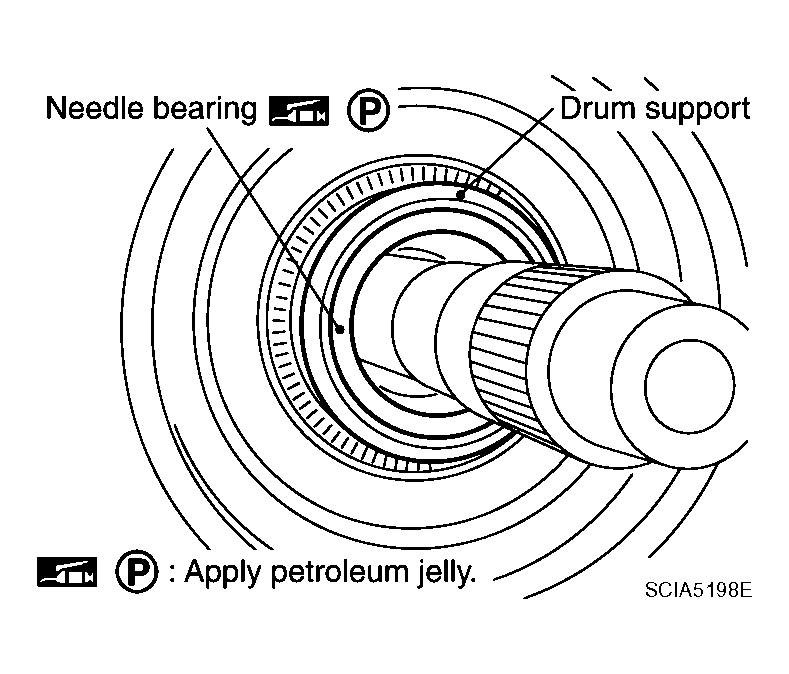

Fig 24: Identifying Needle Bearing From Drum Support
Courtesy of NISSAN MOTOR CO., U.S.A.

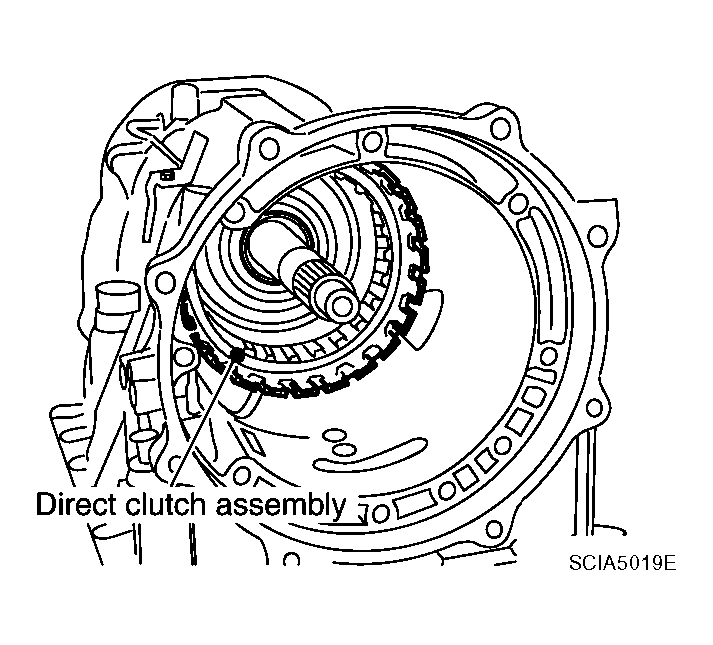

Remove direct clutch assembly from reverse brake.

Fig 25: Identifying Direct Clutch Assembly From Reverse Brake
Courtesy of NISSAN MOTOR CO., U.S.A.
Remove snap ring from A/T assembly harness connector.

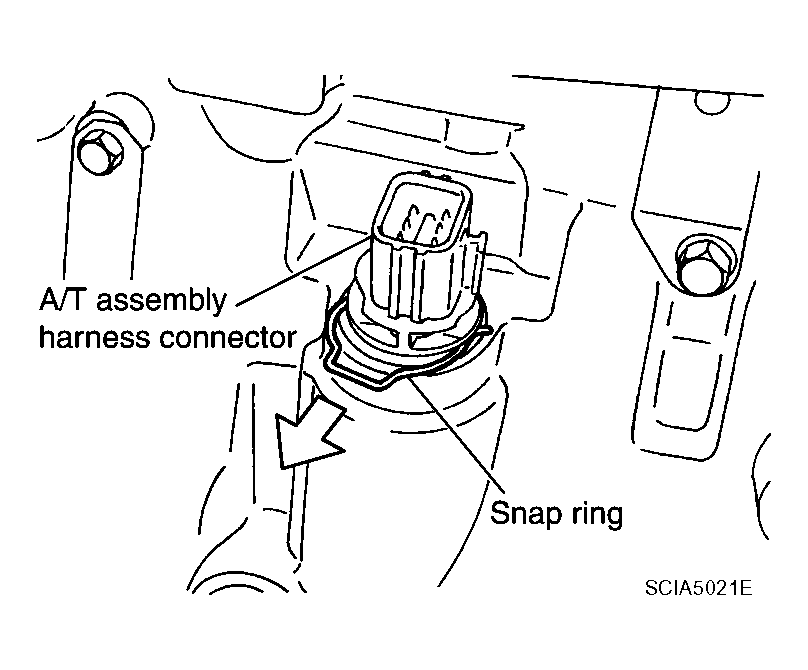

Fig 26: Identifying Snap Ring From A/T Assembly Harness Connector
Courtesy of NISSAN MOTOR CO., U.S.A.
Push A/T assembly harness connector.
CAUTION: Do not damage connector.

Fig 27: Identifying A/T Assembly Harness Connector
Courtesy of NISSAN MOTOR CO., U.S.A.
Remove oil pan and oil pan gasket.

Fig 28: Identifying Oil Pan Bolts
Courtesy of NISSAN MOTOR CO., U.S.A.

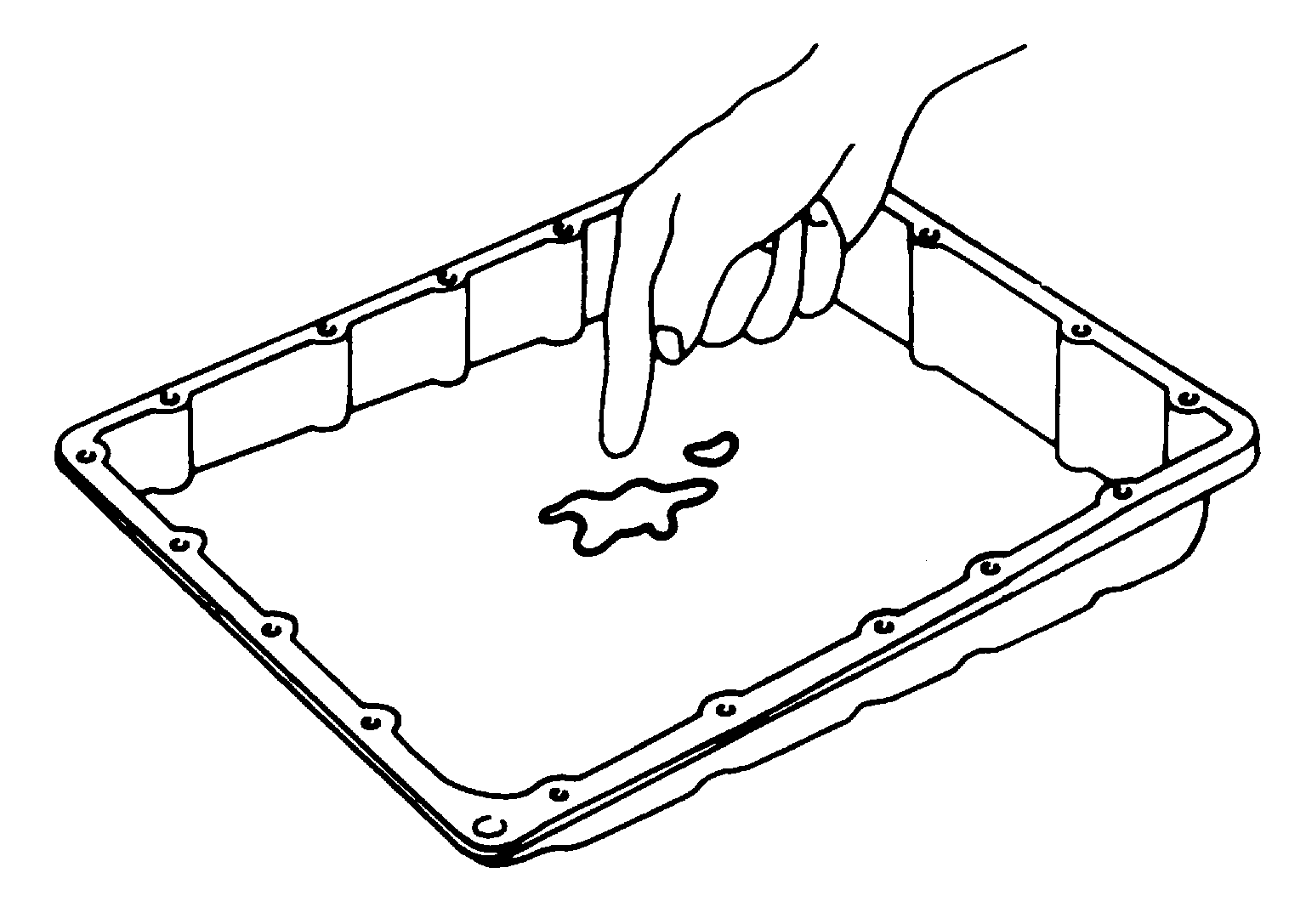

Check foreign materials in oil pan to help determine causes of malfunction. If the A/T fluid is very dark, smells burned, or contains foreign particles, the frictional material (clutches, band) may need replacement. A tacky film that will not wipe clean indicates varnish build up. Varnish can cause valves, servo, and clutches to stick and can inhibit pump pressure.
- If frictional material is detected, perform A/T fluid cooler cleaning. Refer to "A/T FLUID COOLER CLEANING ".
Fig 29: Checking A/T Fluid For Foreign Materials
Courtesy of NISSAN MOTOR CO., U.S.A.

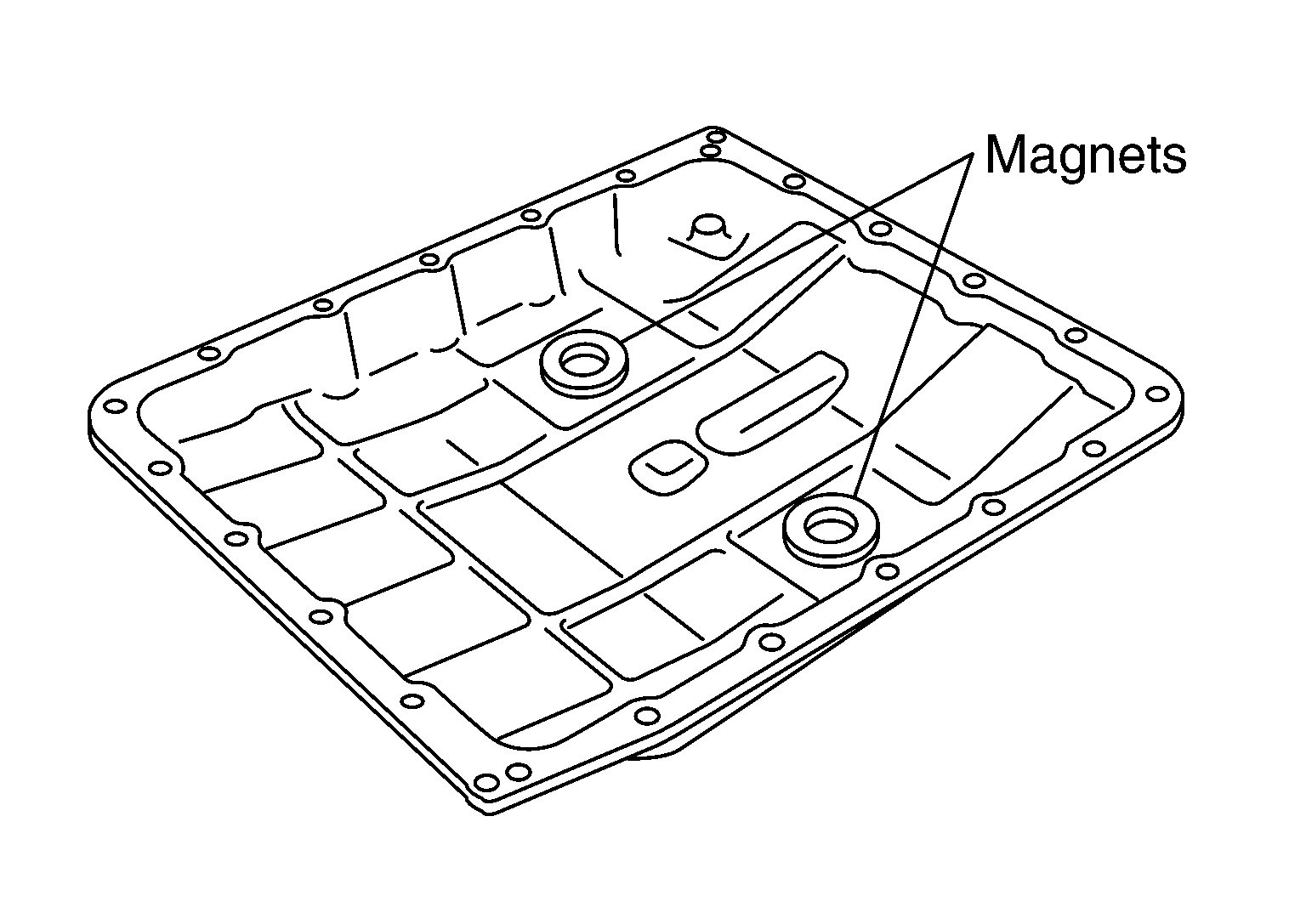

Remove magnets from oil pan.

Fig 30: View Of Magnets In Oil Pan
Courtesy of NISSAN MOTOR CO., U.S.A.
Straighten terminal clips to free terminal cord assembly and A/T fluid temperature sensor 2 harness.
Disconnect A/T fluid temperature sensor 2 connector.
CAUTION: Do not damage connector.

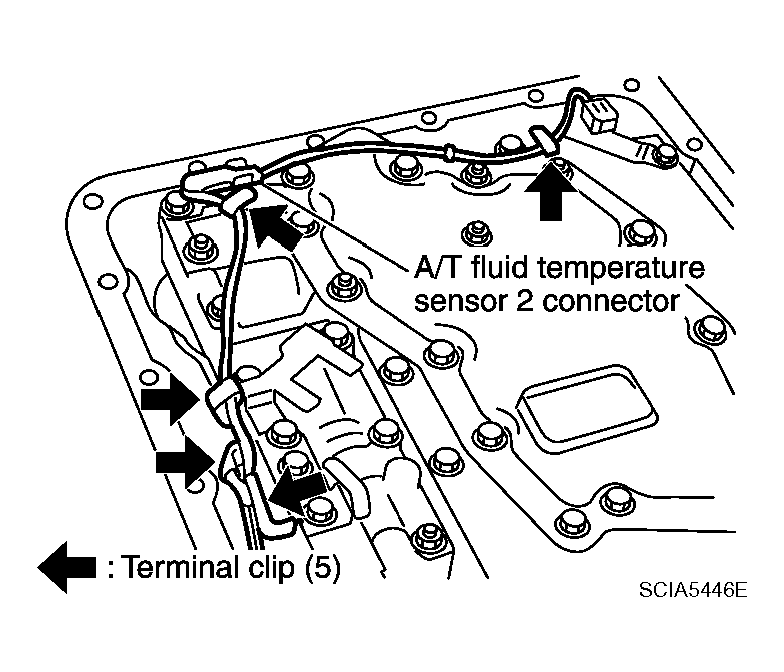

Fig 31: Locating A/T Fluid Temperatrue Sensor 2 And Terminal Clips
Courtesy of NISSAN MOTOR CO., U.S.A.
Straighten terminal clips to free revolution sensor harness.
Disconnect revolution sensor connector.
CAUTION: Do not damage connector.

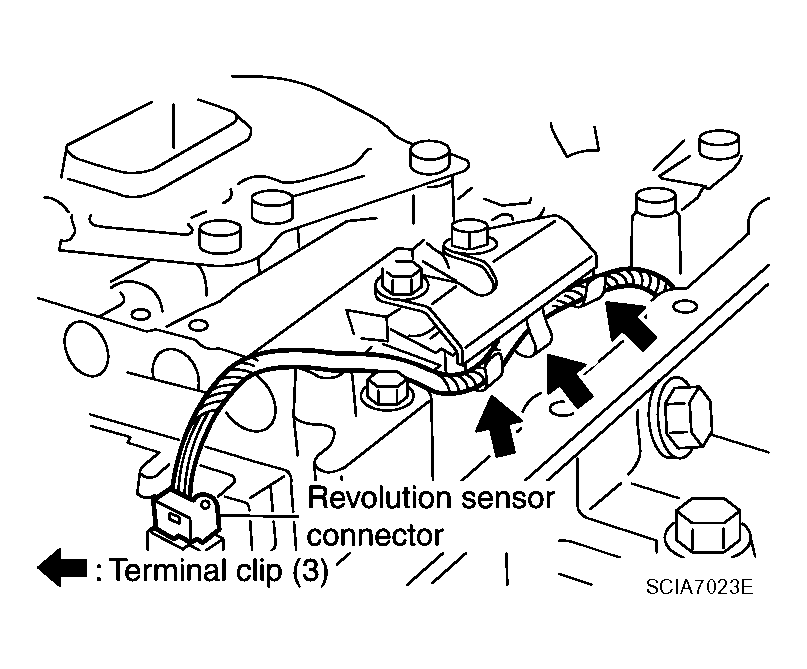

Fig 32: Identifying Terminal Clips (2 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.

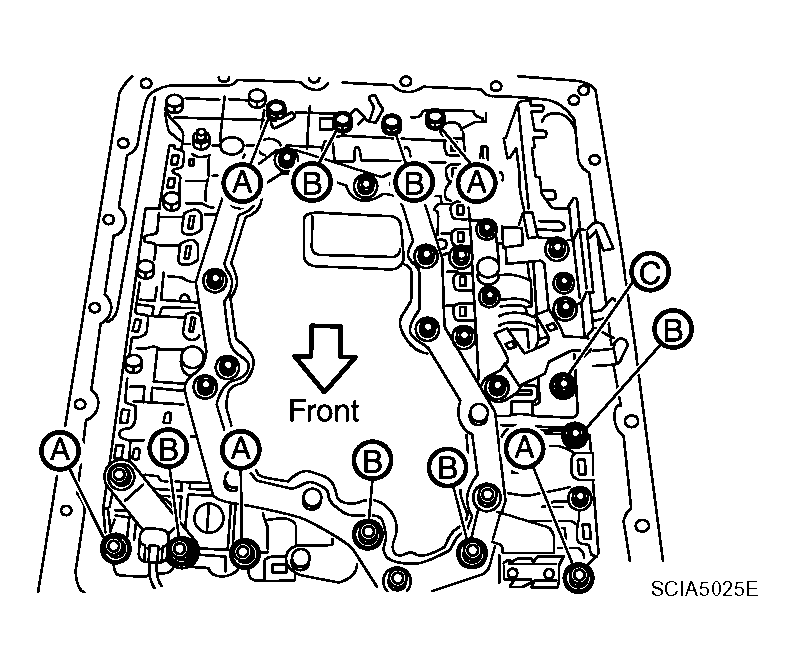

Remove bolts A, B and C from control valve with TCM.

BOLT SYMBOL SPECIFICATIONS

Bolt symbol	Length mm (in)	Number of bolts
A	42(1.65)	5
B	55(2.17)	6
C	40(1.57)	1

Fig 33: Identifying Control Valve Bolts

Courtesy of NISSAN MOTOR CO., U.S.A.

Remove control valve with TCM from transmission case.
CAUTION: When removing, be careful with the manual valve notch and manual plate height. Remove it vertically.

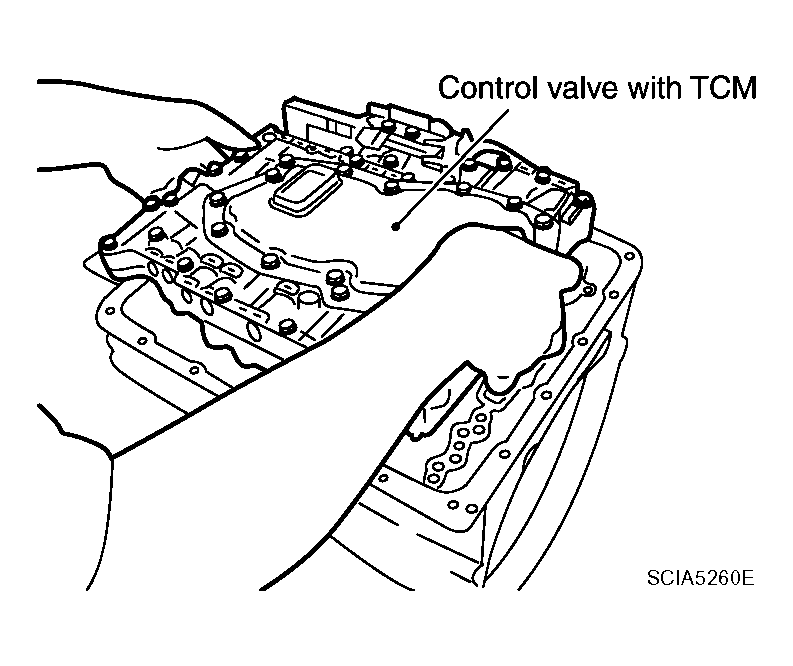

Fig 34: Removing Control Valve With TCM From Transmission Case
Courtesy of NISSAN MOTOR CO., U.S.A.

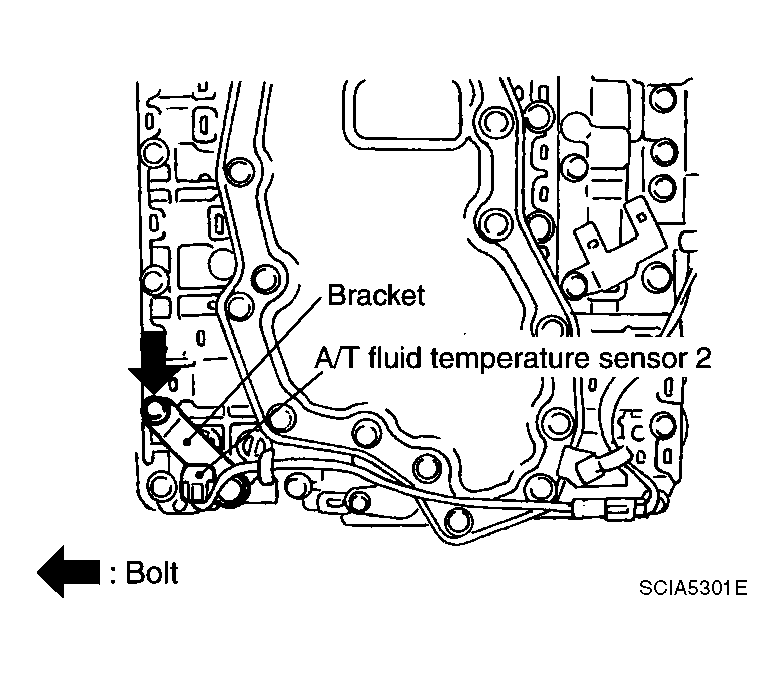

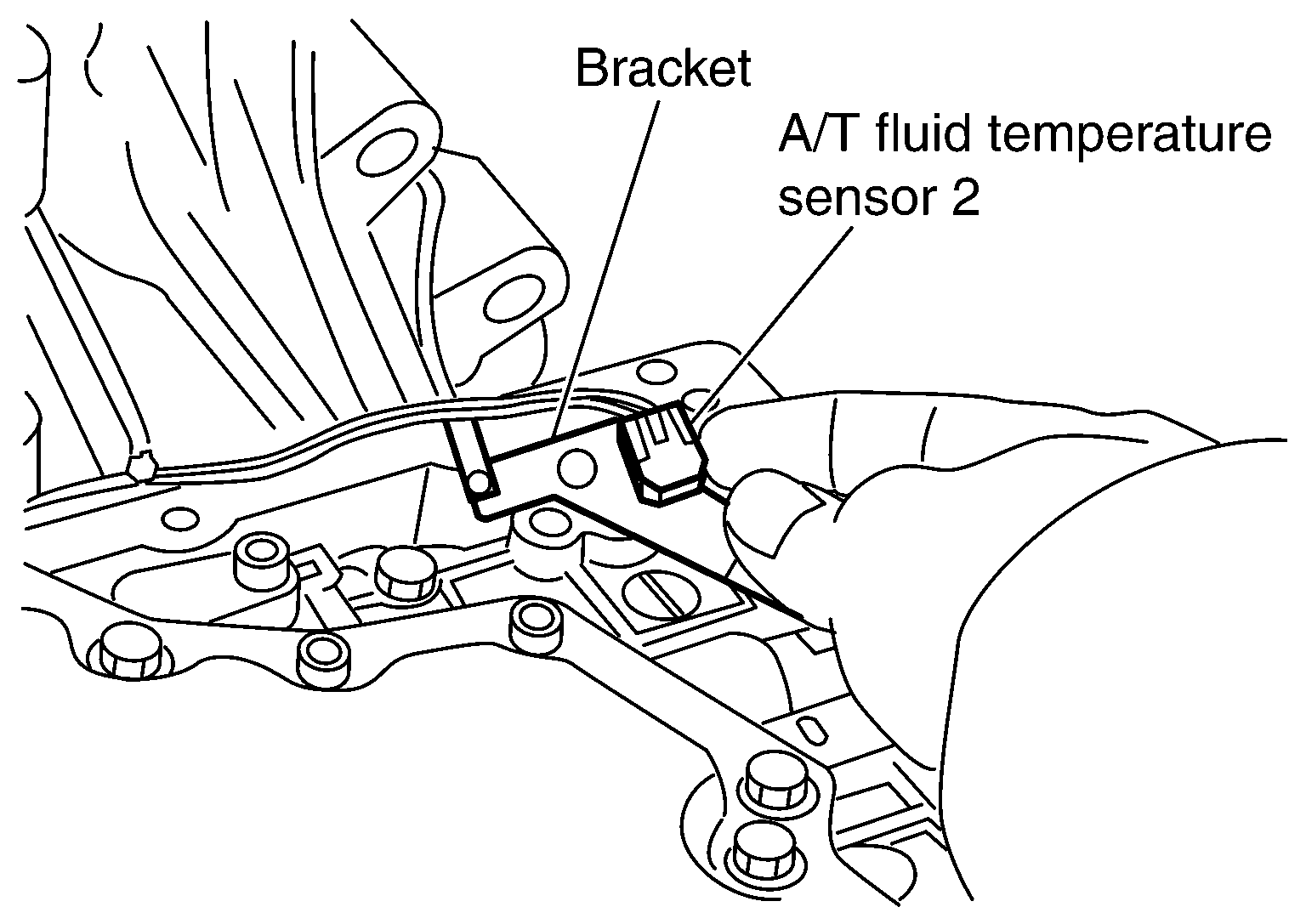

Remove A/T fluid temperature sensor 2 with bracket from control valve with TCM.

Fig 35: Identifying A/T Temperature Sensor 2
Courtesy of NISSAN MOTOR CO., U.S.A.
Remove bracket from A/T fluid temperature sensor 2.

Fig 36: Locating A/T Fluid Temperature Sensor
Courtesy of NISSAN MOTOR CO., U.S.A.

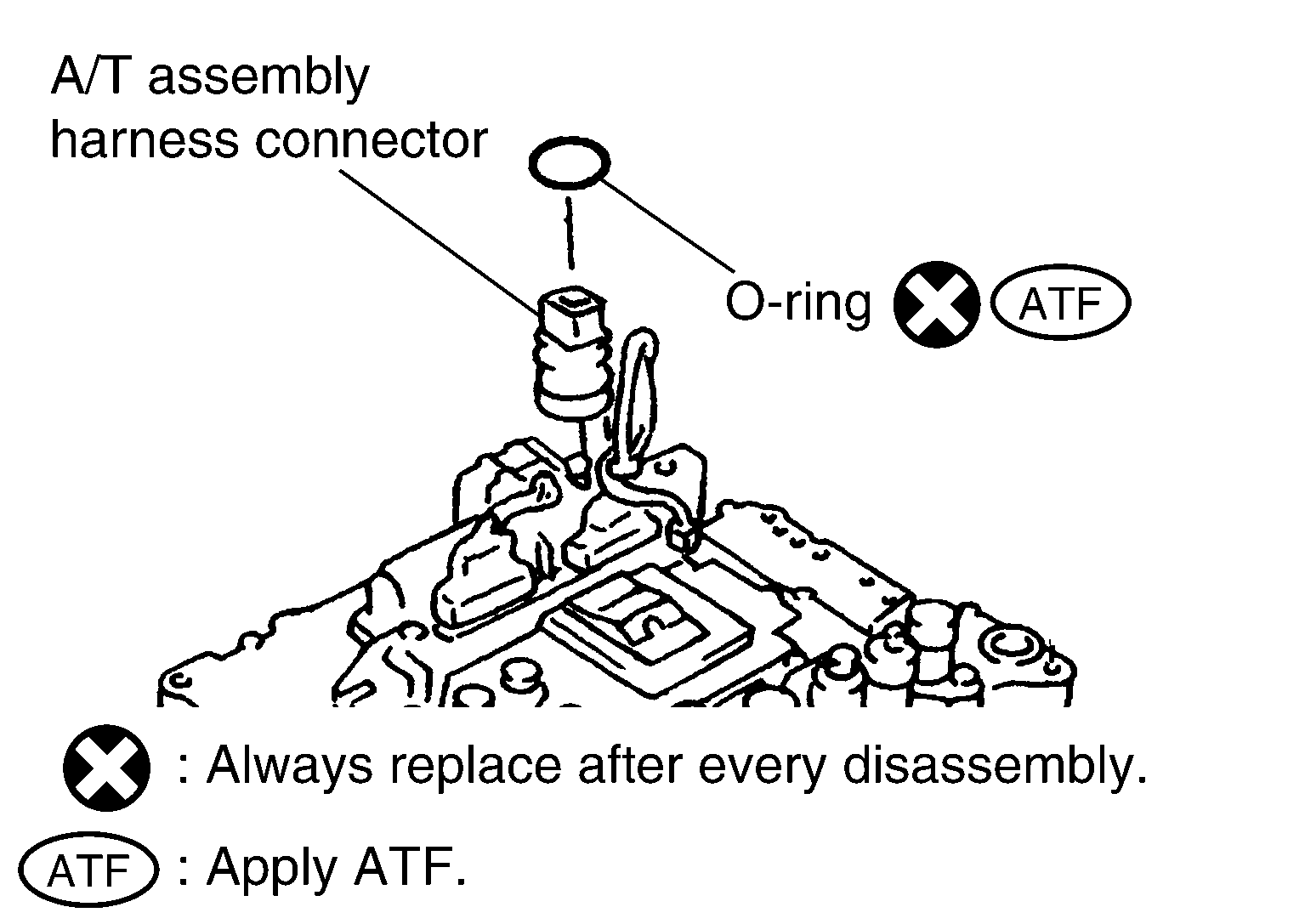

Remove O-ring from A/T assembly harness connector.

Fig 37: Locating Harness Connector O Ring
Courtesy of NISSAN MOTOR CO., U.S.A.

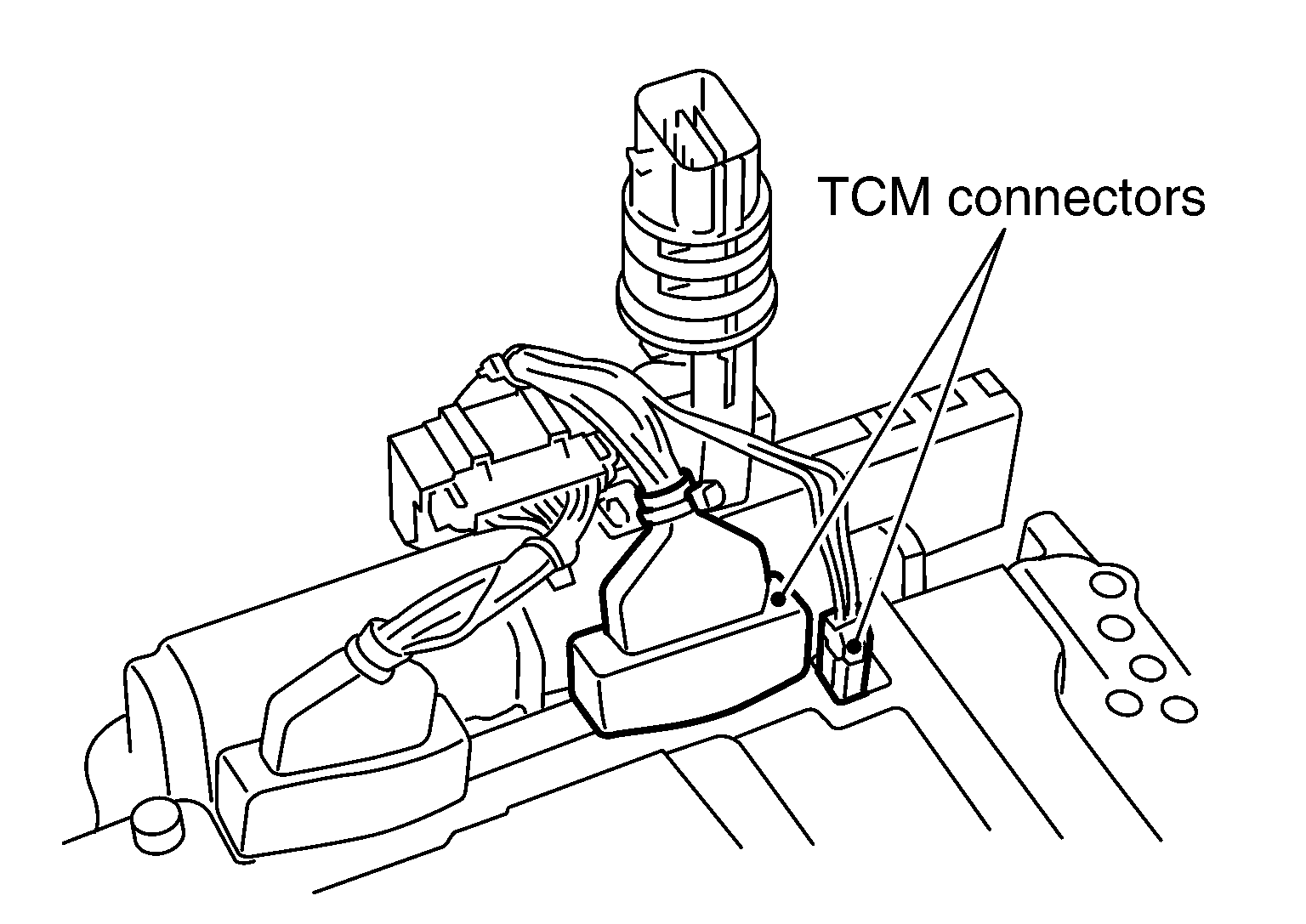

Disconnect TCM connectors.
CAUTION: Do not damage connectors.

Fig 38: Locating TCM Connectors
Courtesy of NISSAN MOTOR CO., U.S.A.

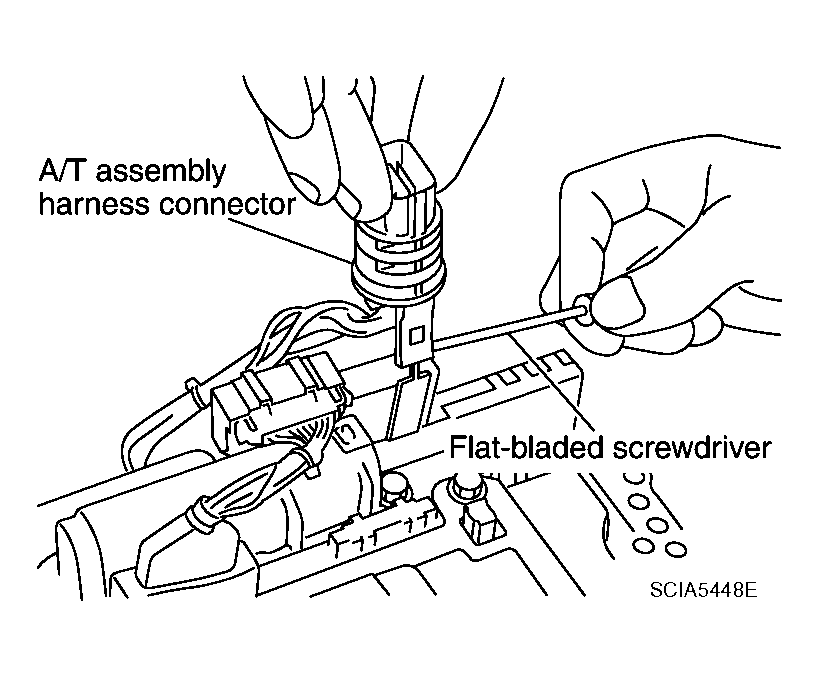

Remove A/T assembly harness connector from control valve with TCM using suitable tool.

Fig 39: Removing A/T Assembly Harness Connector From Control Valve With TCM Using Suitable Tool
Courtesy of NISSAN MOTOR CO., U.S.A.
Disconnect TCM connector and park/neutral position switch connector.
CAUTION: Do not damage connectors.

Fig 40: Locating TCM And Park Neutral Position Switch Connectors
Courtesy of NISSAN MOTOR CO., U.S.A.
Remove rear extension assembly (2WD models) or adapter case assembly (4WD models) according to the following procedures.
1. 2WD models
  1. Remove bolts for rear extension assembly and transmission case.

    Fig 41: Identifying Bolts For Rear Extension Assembly And Transmission Case
    Courtesy of NISSAN MOTOR CO., U.S.A.

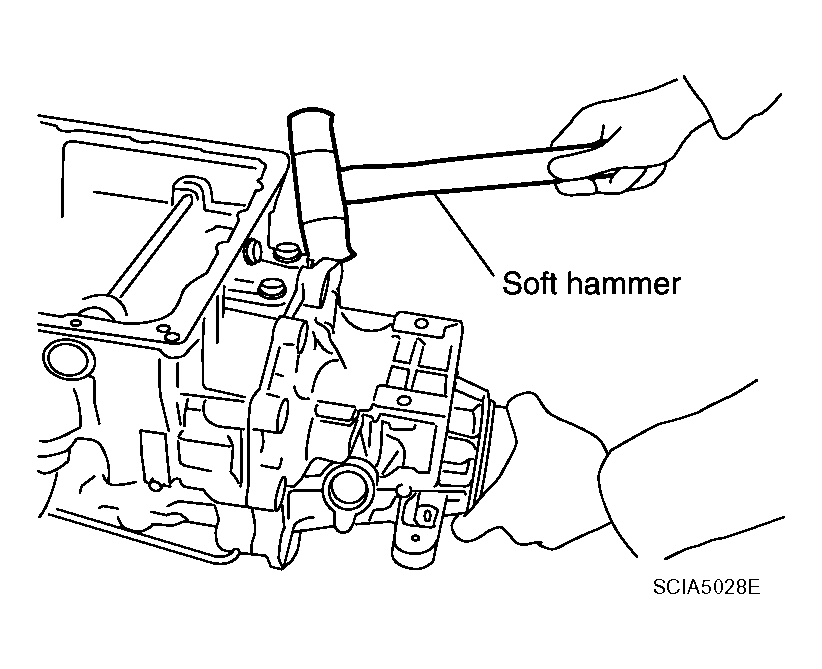

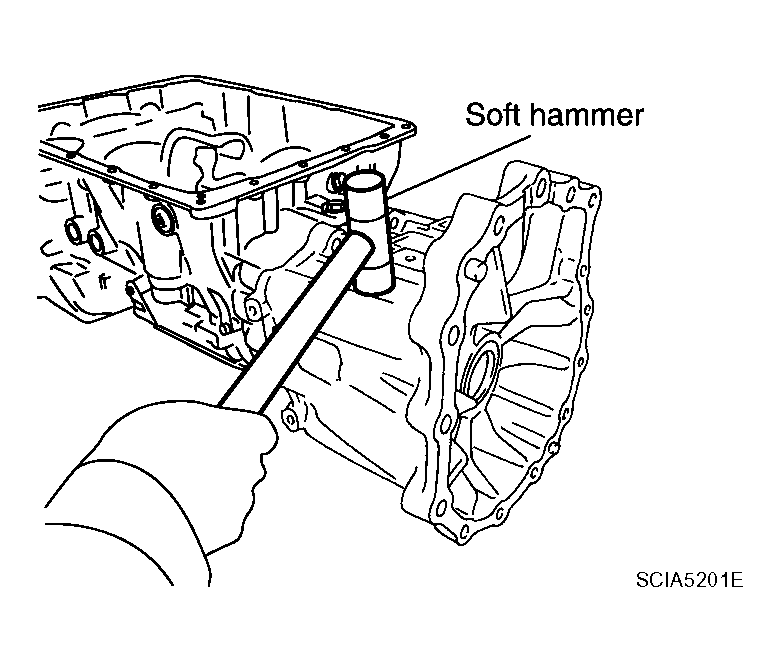

  2. Tap rear extension assembly using suitable tool.

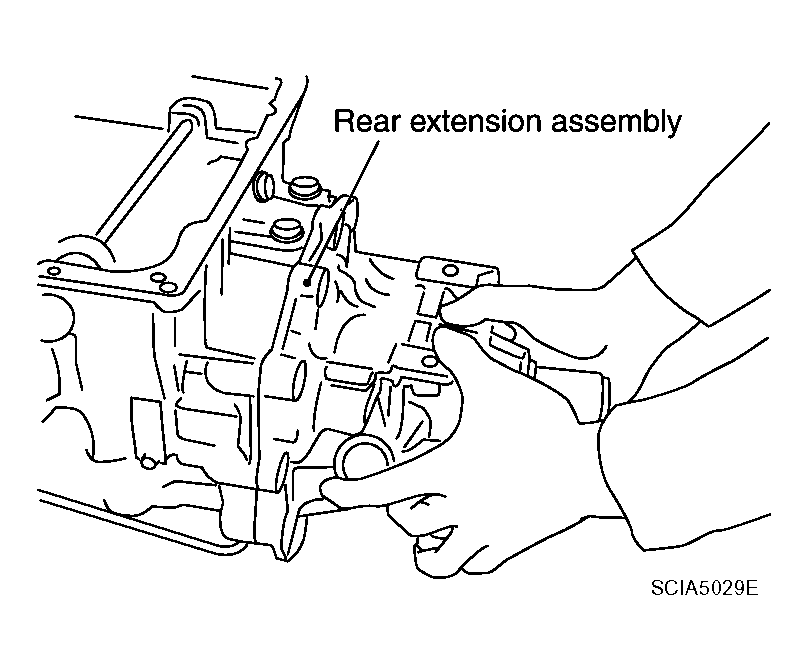

    Fig 42: Taping Rear Extension Assembly
    Courtesy of NISSAN MOTOR CO., U.S.A.
  3. Remove rear extension assembly from transmission case (with needle bearing).
  Fig 43: Pulling Rear Extension Assembly From Transmission Case
  Courtesy of NISSAN MOTOR CO., U.S.A.
2. 4WD models

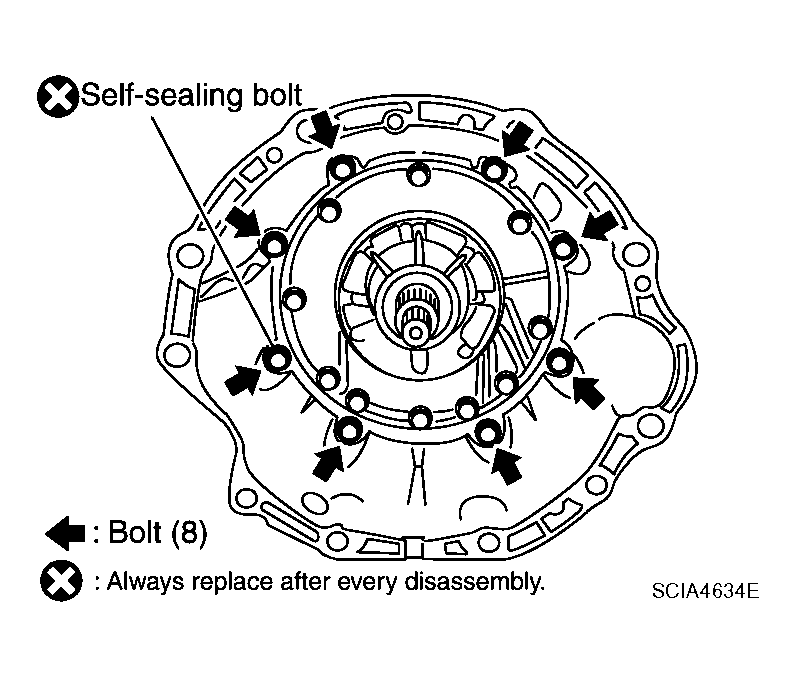

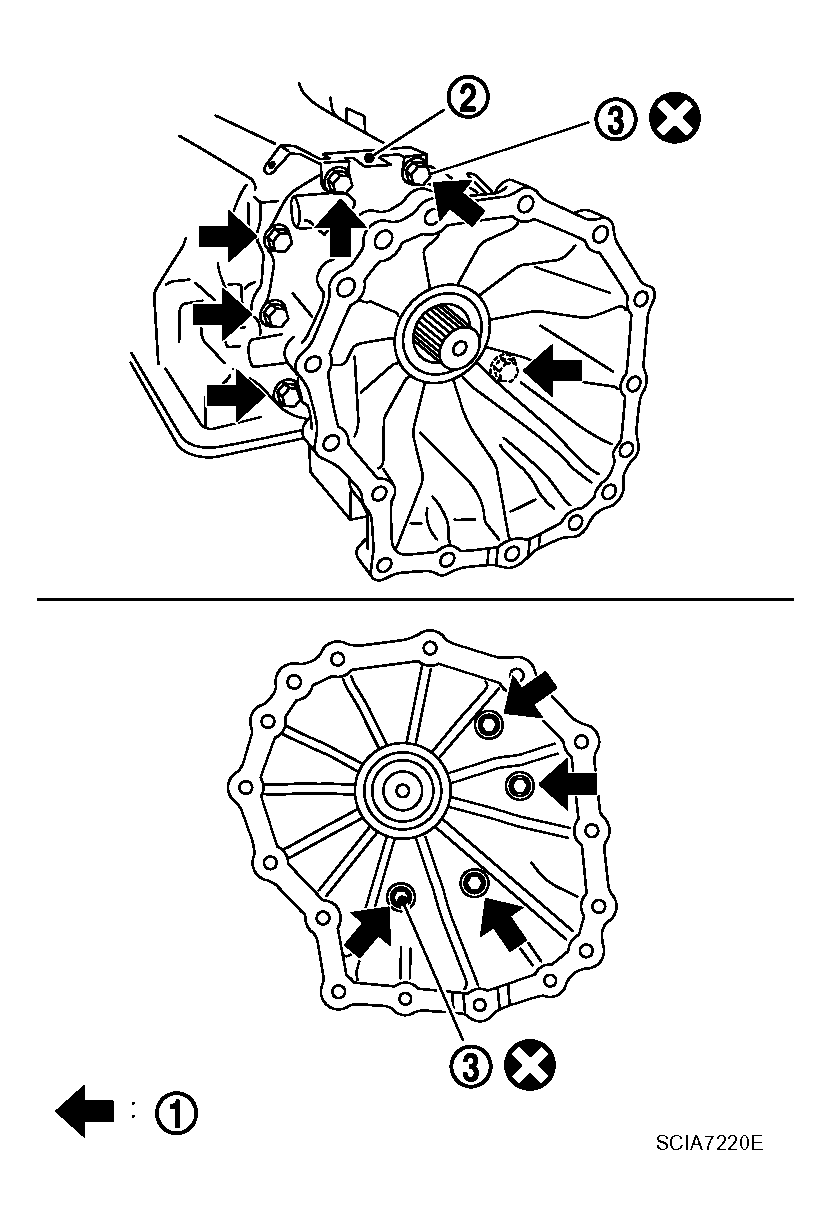

  1. Remove bolts (1) for adapter case assembly and transmission case (with terminal bracket (2)).
    - Self-sealing bolt (3)

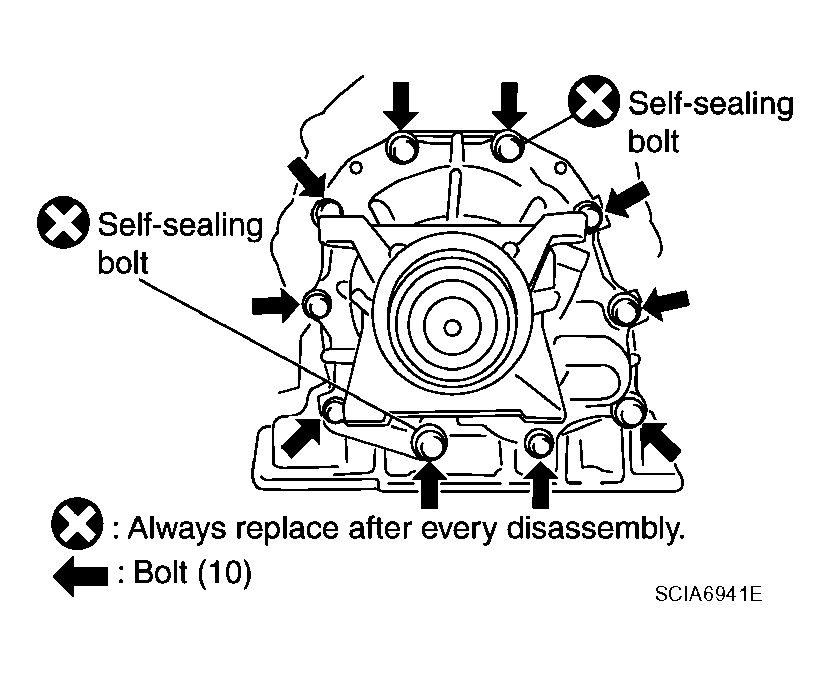

    Fig 44: Identifying Bolts For Adapter Case Assembly And Transmission Case
    Courtesy of NISSAN MOTOR CO., U.S.A.
  2. Tap adapter case assembly using suitable tool.

    Fig 45: Taping Adapter Case Assembly
    Courtesy of NISSAN MOTOR CO., U.S.A.

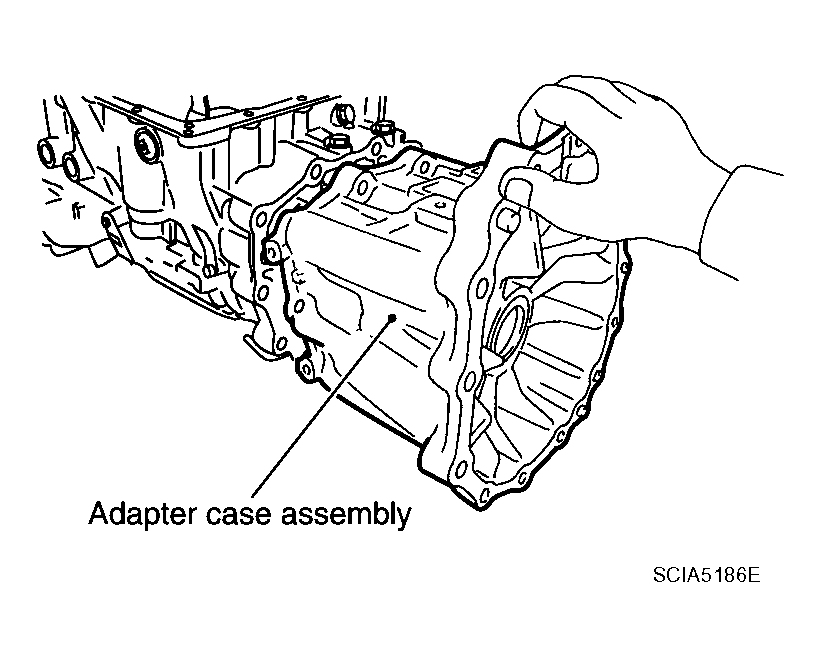

  3. Remove adapter case assembly from transmission case (with needle bearing).

    Fig 46: Removing Adapter Case Assembly From Transmission Case
    Courtesy of NISSAN MOTOR CO., U.S.A.

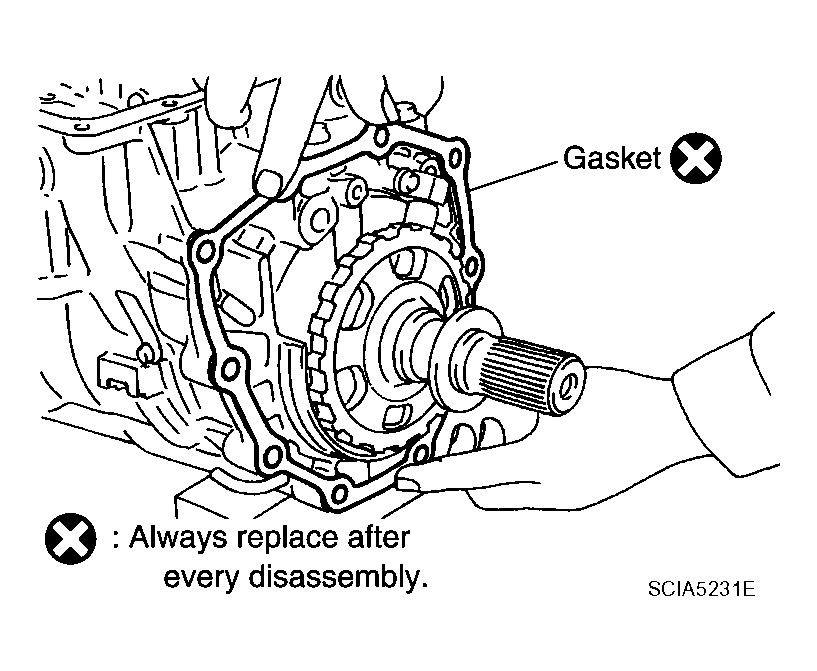

  4. Remove gasket from transmission case.
  Fig 47: Removing Gasket From Transmission Case
  Courtesy of NISSAN MOTOR CO., U.S.A.
Remove bearing race from output shaft.

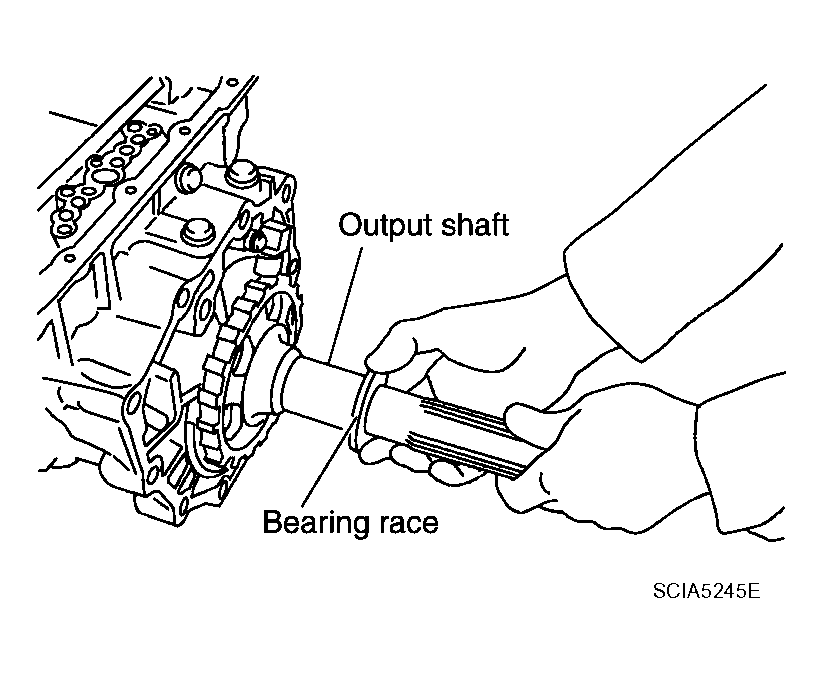

Fig 48: Removing Bearing Race From Output Shaft
Courtesy of NISSAN MOTOR CO., U.S.A.

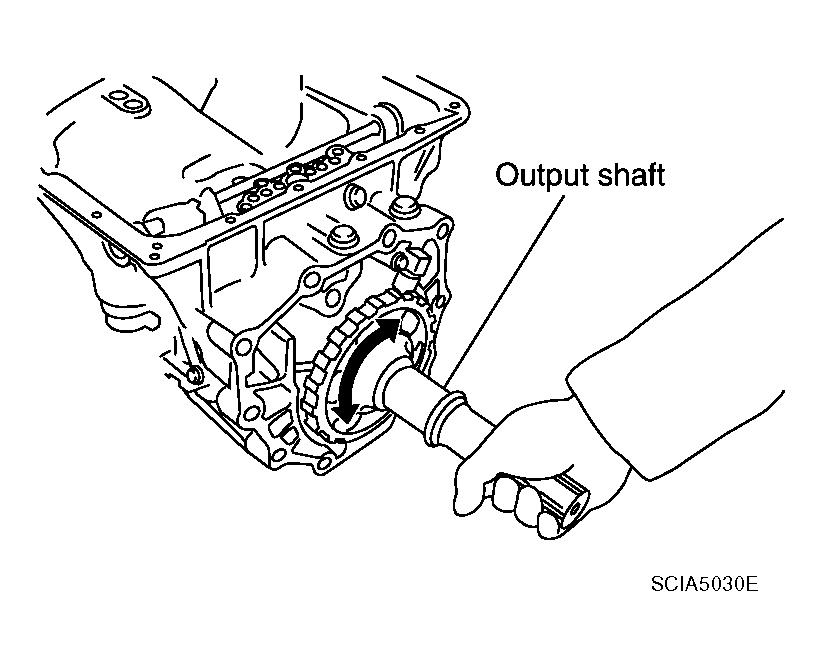

Remove output shaft from transmission case by rotating left/ right.

Fig 49: Removing Output Shaft From Transmission Case By Rotating Left/ Right
Courtesy of NISSAN MOTOR CO., U.S.A.
Remove parking gear from output shaft.

Fig 50: Removing Parking Gear From Output Shaft
Courtesy of NISSAN MOTOR CO., U.S.A.

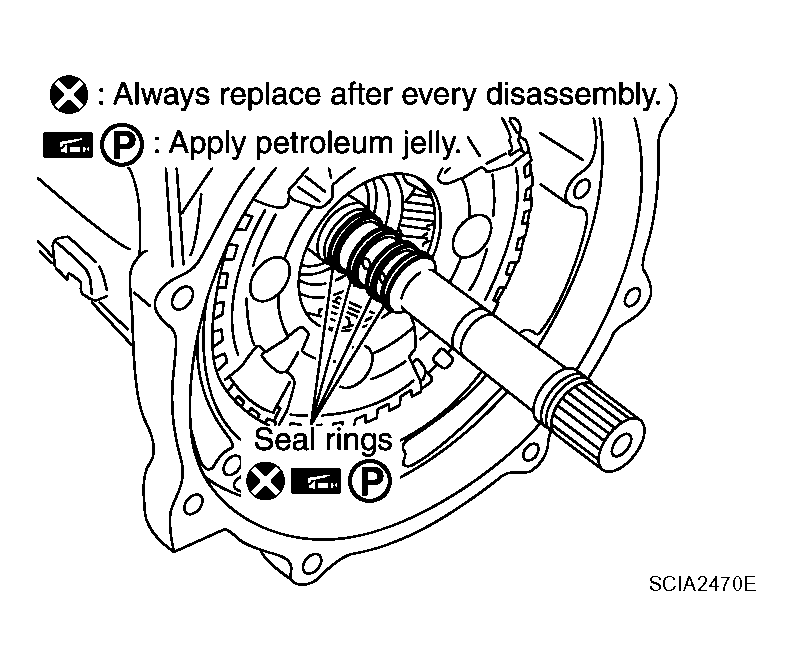

Remove seal rings from output shaft.

Fig 51: Identifying Seal Rings From Output Shaft
Courtesy of NISSAN MOTOR CO., U.S.A.
Remove needle bearing from transmission case.

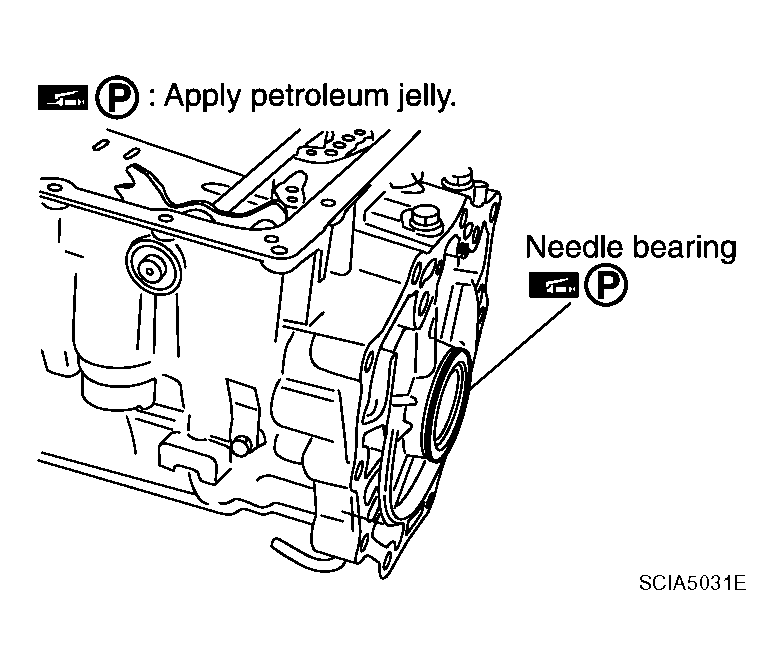

Fig 52: Identifying Needle Bearing From Transmission Case
Courtesy of NISSAN MOTOR CO., U.S.A.

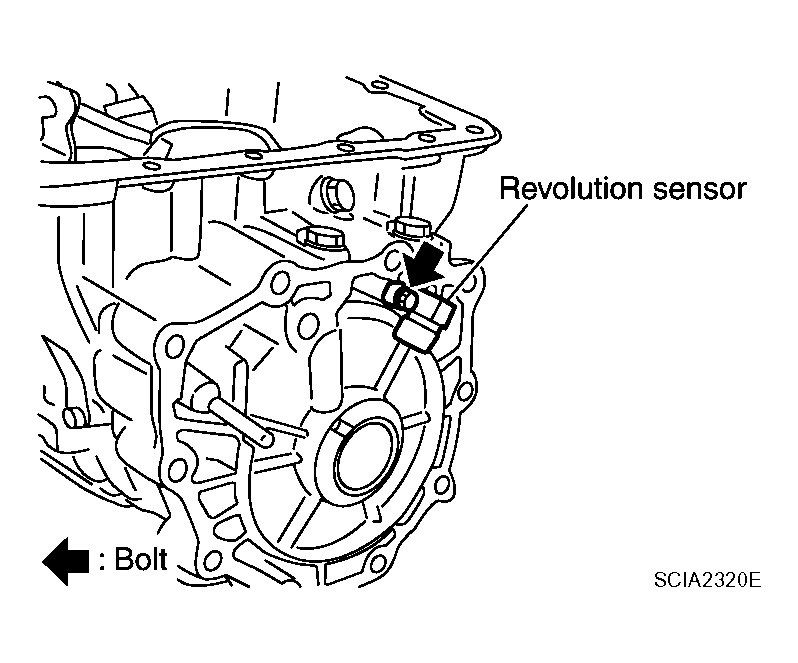

Remove revolution sensor from transmission case.
CAUTION:
- Do not subject it to impact by dropping or hitting it.
- Do not disassemble.
- Do not allow metal filings, etc. to get on the sensor's front edge magnetic area.
- Do not place in an area affected by magnetism.
Fig 53: Identifying Revolution Sensor From Transmission Case
Courtesy of NISSAN MOTOR CO., U.S.A.

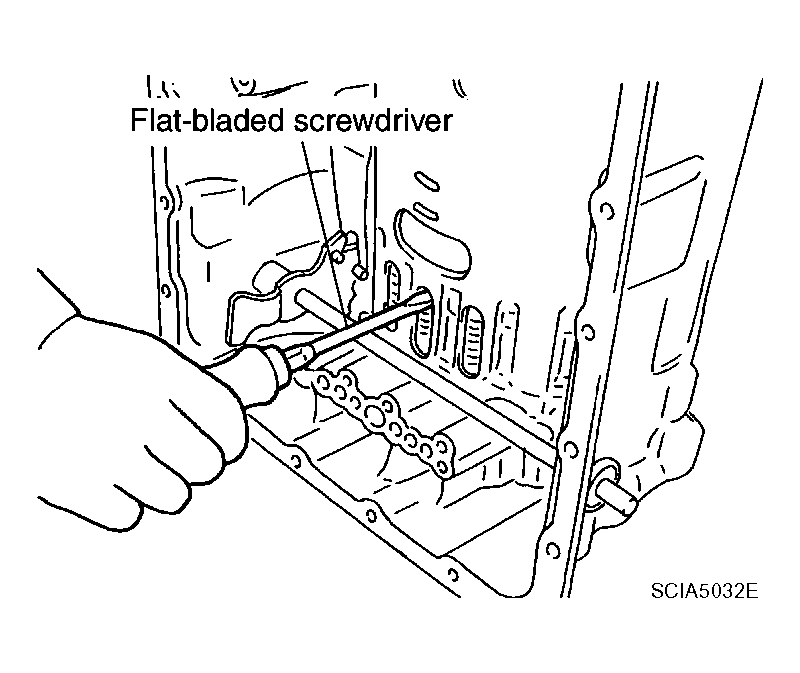

Remove reverse brake snap ring (fixing plate) using 2 flat-bladed screwdrivers.
NOTE: Press out snap ring from the transmission case oil pan side gap using a flat-bladed screwdriver, and remove it using a another screwdriver.
Remove reverse brake retaining plate from transmission case.
- Check facing for burns, cracks or damage. If necessary, replace the plate.
Fig 54: Removing Reverse Brake Snap Ring
Courtesy of NISSAN MOTOR CO., U.S.A.

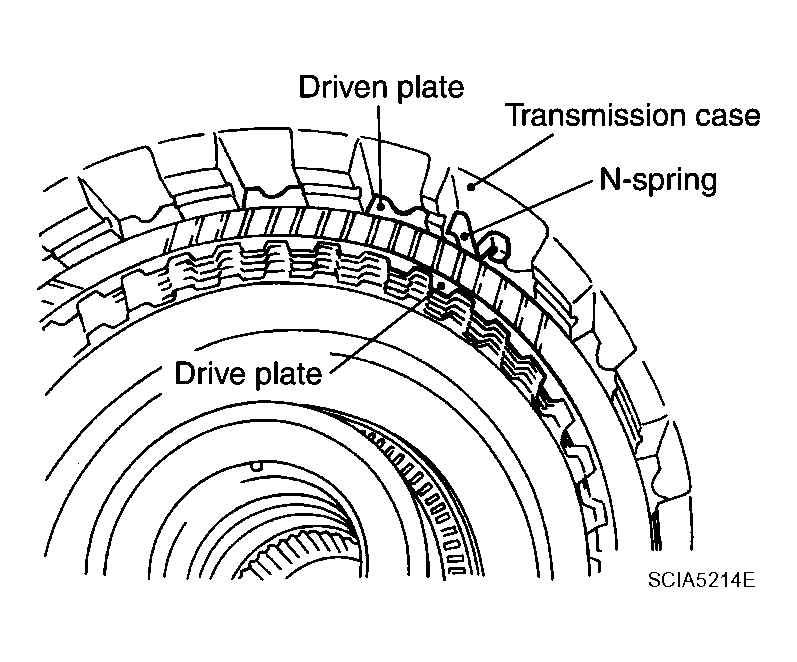

Remove N-spring from transmission case.

Fig 55: Identifying N-Spring From Transmission Case
Courtesy of NISSAN MOTOR CO., U.S.A.

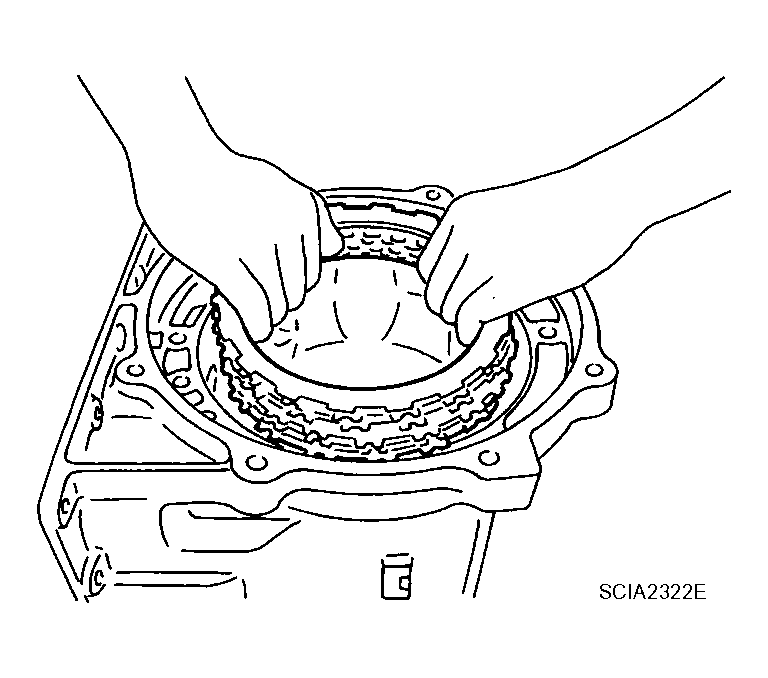

Remove reverse brake drive plates, driven plates and dish plate from transmission case.
- Check facing for burns, cracks or damage. If necessary, replace the plate.
Fig 56: Removing Reverse Brake Drive Plates From Transmission Case
Courtesy of NISSAN MOTOR CO., U.S.A.

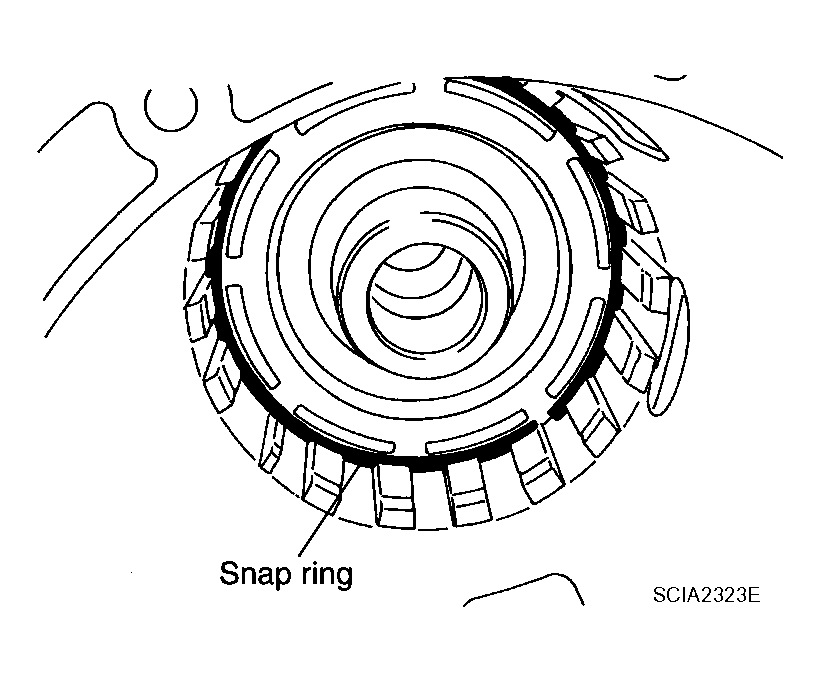

Remove snap ring (fixing spring retainer) using suitable tool.

Fig 57: Identifying Snap Ring
Courtesy of NISSAN MOTOR CO., U.S.A.

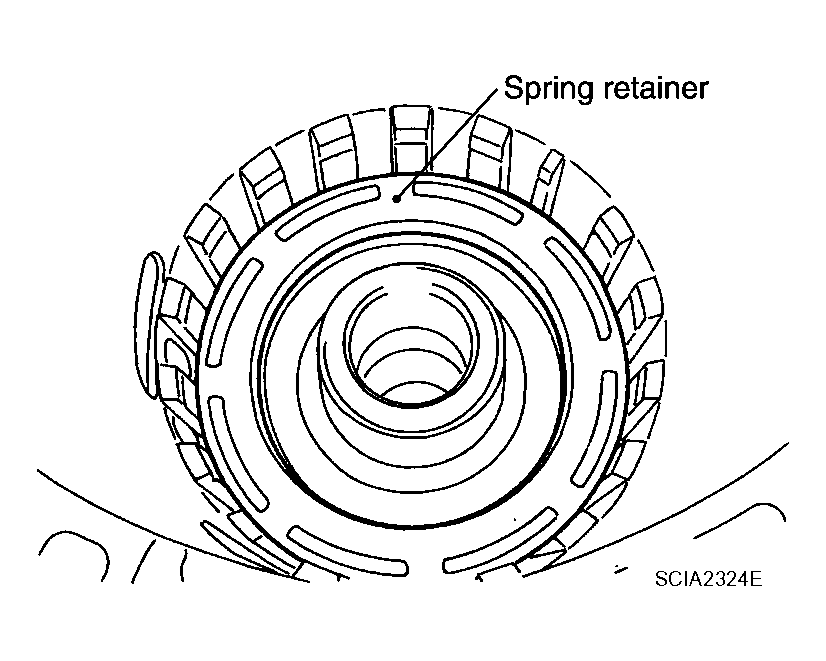

Remove spring retainer and return spring from transmission case.

Fig 58: Identifying Spring Retainer From Transmission Case
Courtesy of NISSAN MOTOR CO., U.S.A.

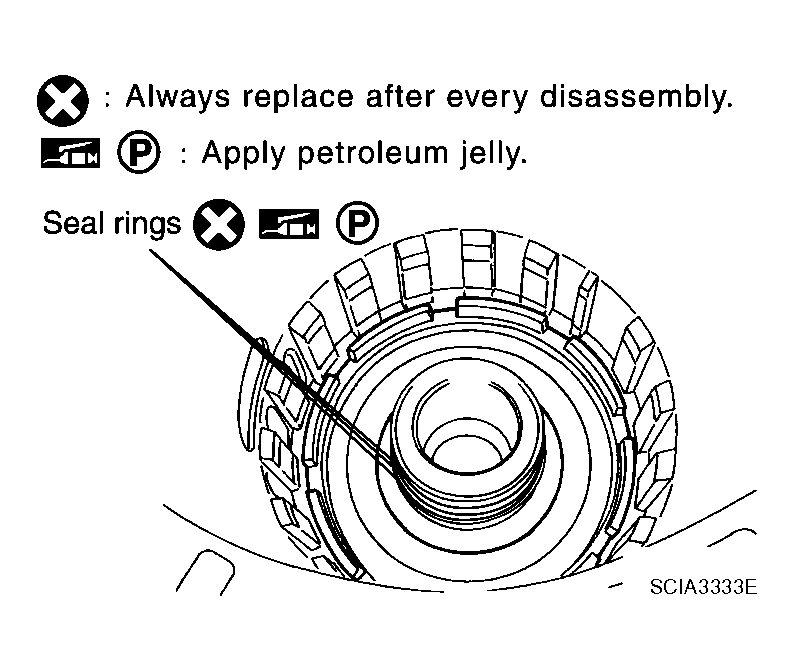

Remove seal rings from drum support.

Fig 59: Identifying Seal Rings From Drum Support
Courtesy of NISSAN MOTOR CO., U.S.A.
Remove needle bearing from drum support edge surface.

Fig 60: Identifying Needle Bearing From Drum Support
Courtesy of NISSAN MOTOR CO., U.S.A.

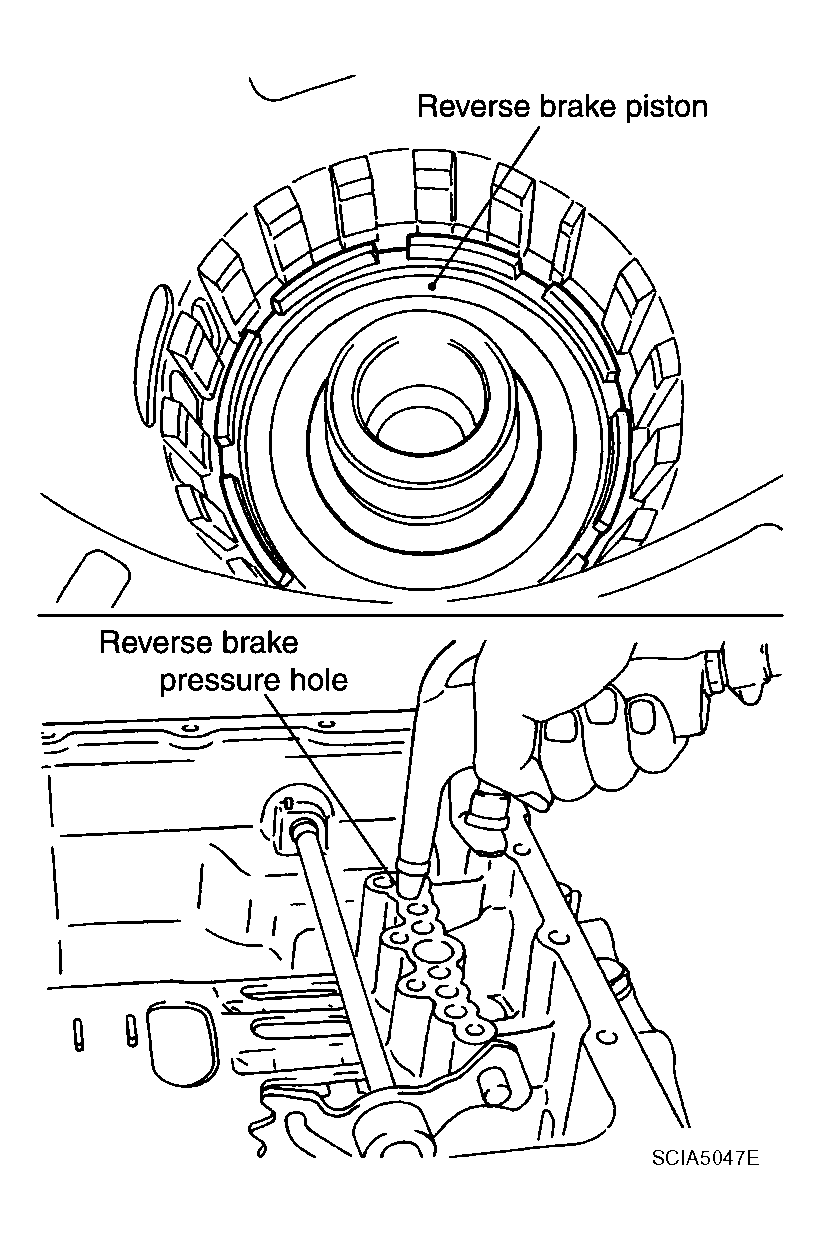

Remove reverse brake piston from transmission case with compressed air. Refer to "OIL CHANNEL ".
CAUTION: Do not abruptly blow air. It makes pistons incline, as the result, it becomes hard to disassemble the pistons.

Fig 61: Applying Compressed Air To Reverse Brake
Courtesy of NISSAN MOTOR CO., U.S.A.
Remove D-rings from reverse brake piston.

Fig 62: Identifying D-Rings From Reverse Brake Piston
Courtesy of NISSAN MOTOR CO., U.S.A.

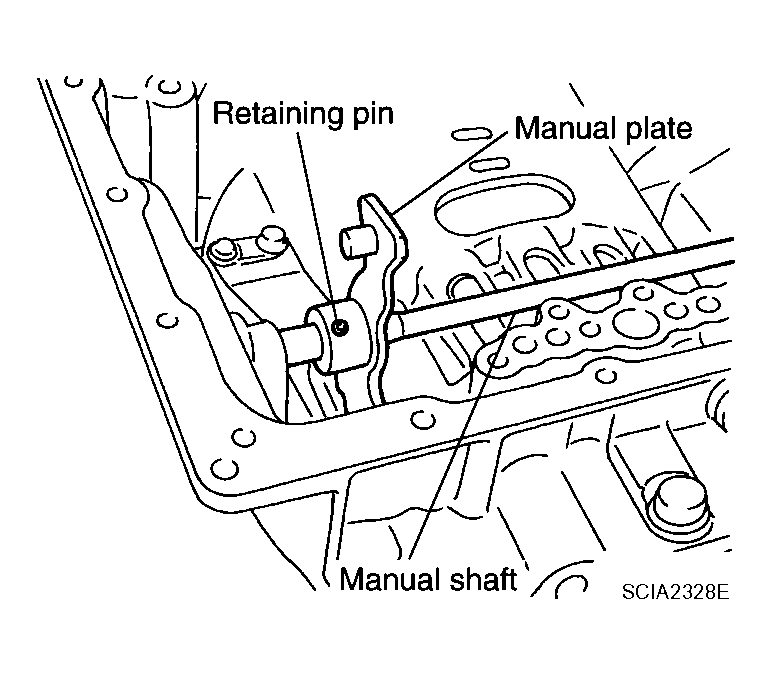

Knock out retaining pin using suitable tool.

Fig 63: Identifying Retaining Pin
Courtesy of NISSAN MOTOR CO., U.S.A.
Remove manual shaft retaining pin using suitable tool.

Fig 64: Removing Retaining Pin From Manual Shaft
Courtesy of NISSAN MOTOR CO., U.S.A.
Remove manual plate (with parking rod) from manual shaft.

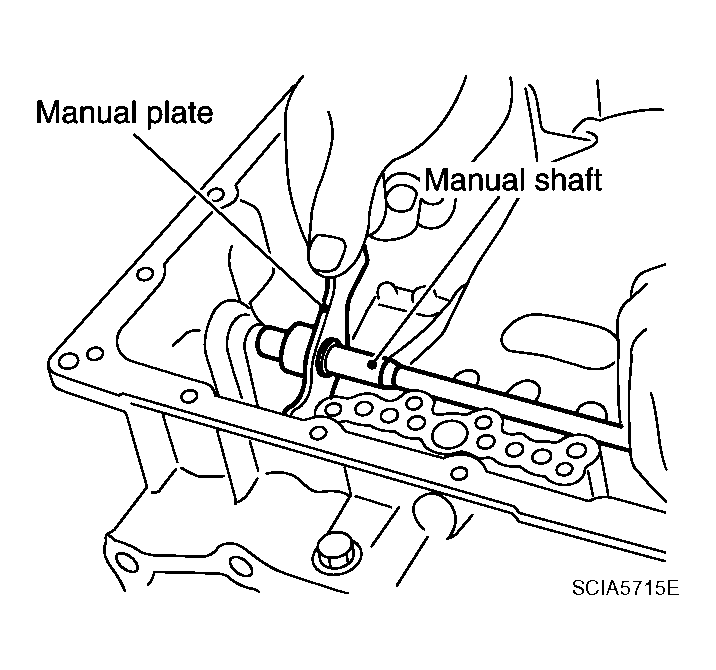

Fig 65: Removing Manual Plate From Manual Shaft
Courtesy of NISSAN MOTOR CO., U.S.A.
Remove parking rod from manual plate.

Fig 66: Removing Parking Rod From Manual Plate
Courtesy of NISSAN MOTOR CO., U.S.A.
Remove manual shaft from transmission case.

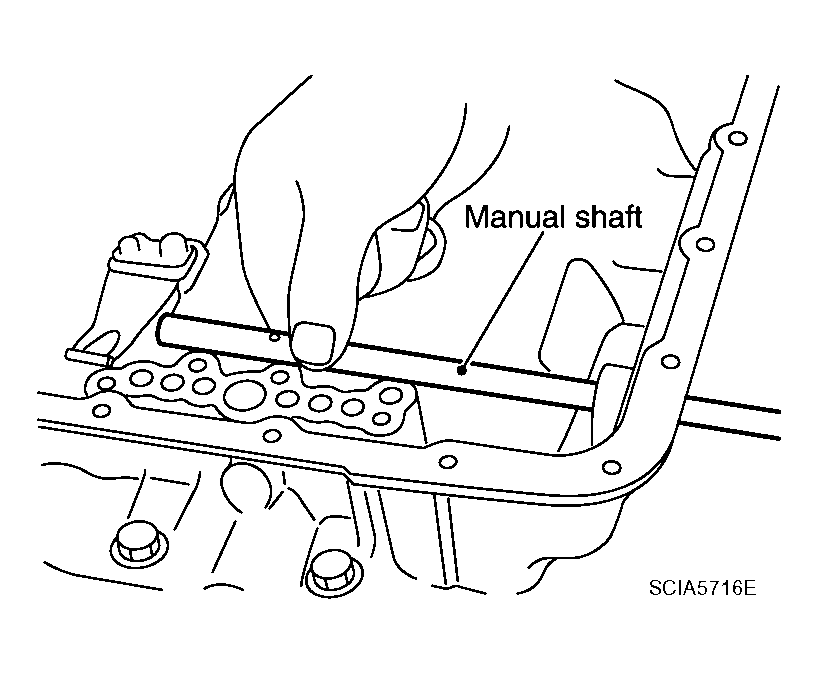

Fig 67: Removing Manual Shaft From Transmission Case
Courtesy of NISSAN MOTOR CO., U.S.A.
Remove manual shaft oil seals using suitable tool.
CAUTION: Do not scratch transmission case.

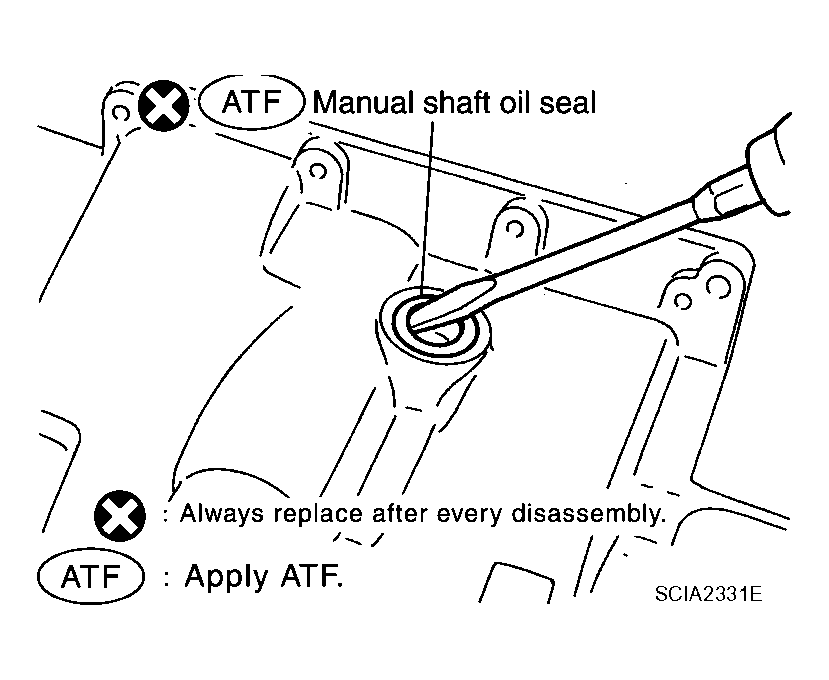

Fig 68: Removing Manual Shaft Oil Seals Using Suitable Tool
Courtesy of NISSAN MOTOR CO., U.S.A.
Remove detent spring and spacer from transmission case.

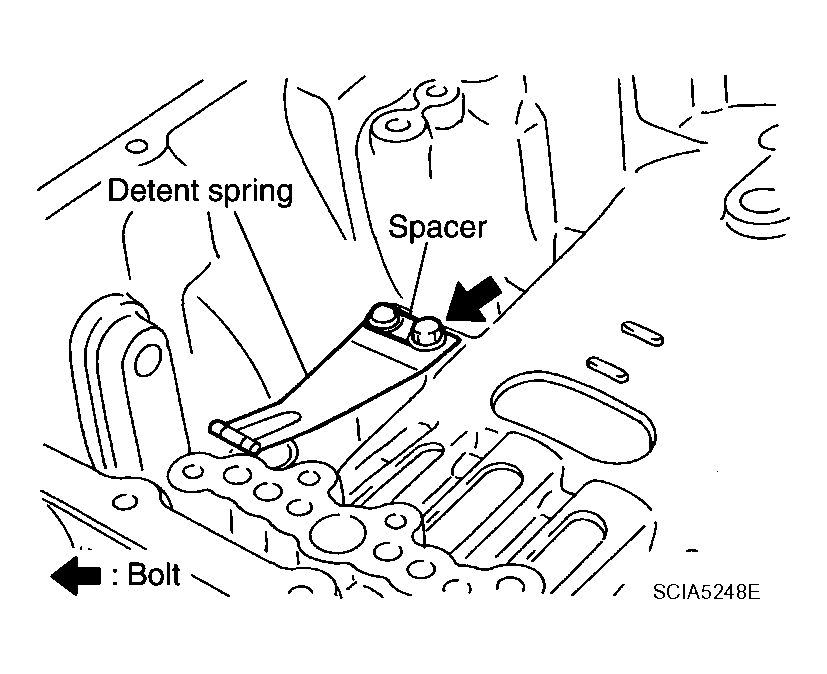

Fig 69: Identifying Detent Spring And Spacer From Transmission Case
Courtesy of NISSAN MOTOR CO., U.S.A.
Remove snap ring from transmission case using suitable tool.

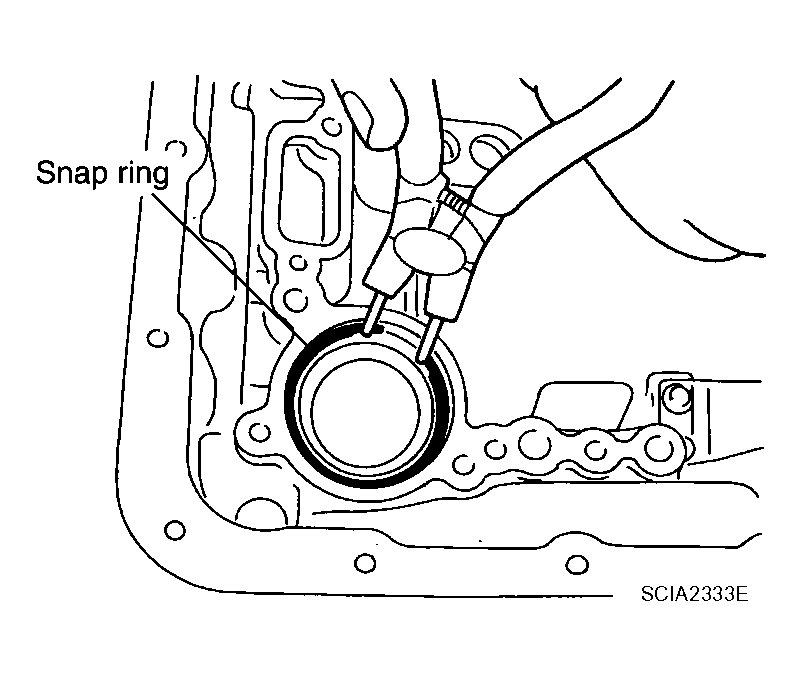

Fig 70: Removing Snap Ring From Transmission Case
Courtesy of NISSAN MOTOR CO., U.S.A.
Remove servo assembly (with return spring) from transmission case.

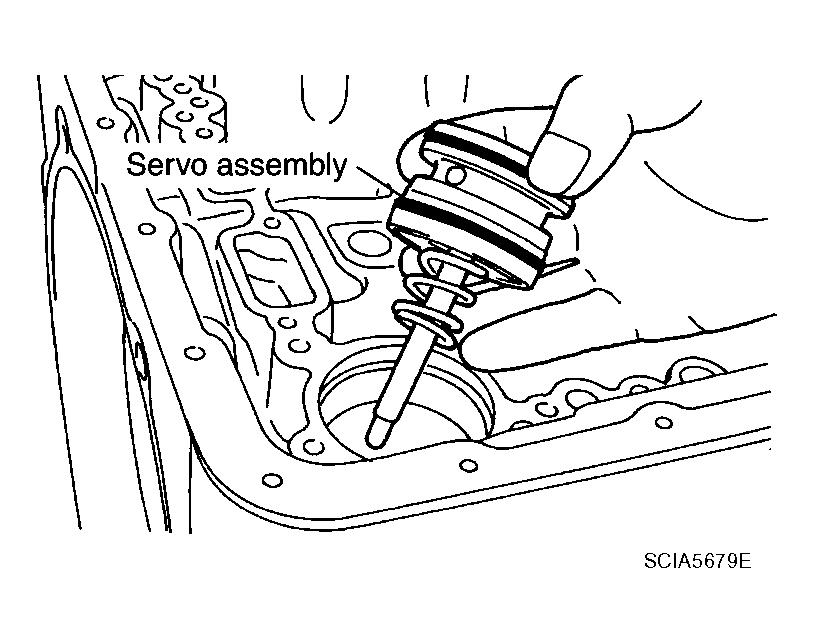

Fig 71: Removing Servo Assembly From Transmission Case
Courtesy of NISSAN MOTOR CO., U.S.A.
Remove return spring from servo assembly.

Fig 72: Removing Return Spring From Servo Assembly
Courtesy of NISSAN MOTOR CO., U.S.A.
Remove O-rings from servo assembly.

Fig 73: Removing O-Rings From Servo Assembly
Courtesy of NISSAN MOTOR CO., U.S.A.

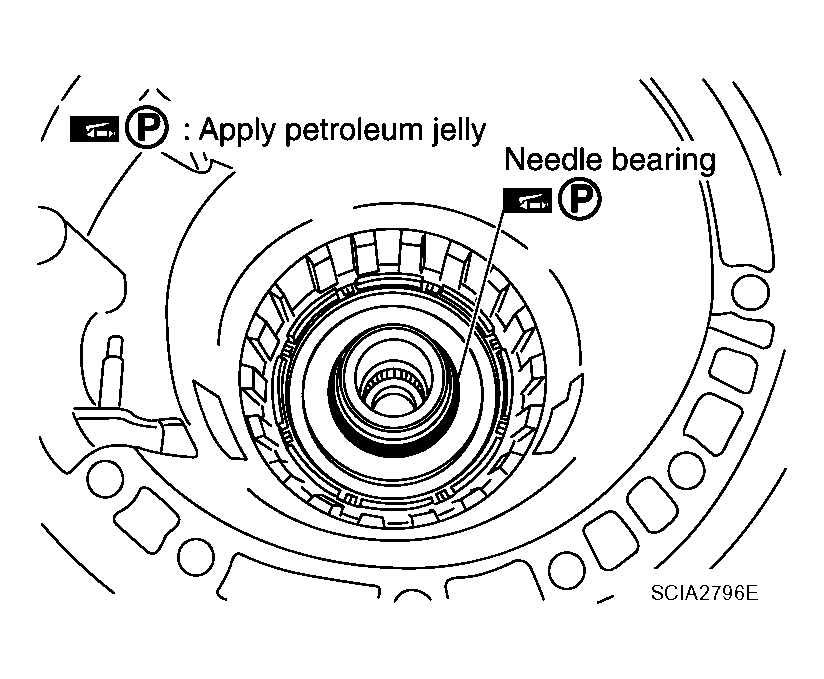

Remove needle bearing (1) from rear extension (2WD models) or adapter case (4WD models).

Fig 74: Identifying Needle Bearing From Rear Extension
Courtesy of NISSAN MOTOR CO., U.S.A.
Remove parking actuator support from rear extension (2WD models) or adapter case (4WD models).

Fig 75: Removing Parking Actuator Support From Rear Extension
Courtesy of NISSAN MOTOR CO., U.S.A.
Remove parking pawl (with return spring) and pawl shaft from rear extension (2WD models) or adapter case (4WD models).

Fig 76: Removing Parking Pawl And Pawl Shaft From Rear Extension
Courtesy of NISSAN MOTOR CO., U.S.A.
Remove return spring (1) from parking pawl (2).

Fig 77: Identifying Return Spring From Parking Pawl
Courtesy of NISSAN MOTOR CO., U.S.A.
Remove rear oil seal from rear extension (2WD models) or adapter case (4WD models).
CAUTION: Do not scratch rear extension (2WD models) or adapter case (4WD models).

Fig 78: Identifying Rear Oil Seal From Rear Extension
Courtesy of NISSAN MOTOR CO., U.S.A.
