Double-Cone Synchronizer

Double-cone synchronizer is adopted for 1st and 2nd gears to reduce operating force of the shift lever.

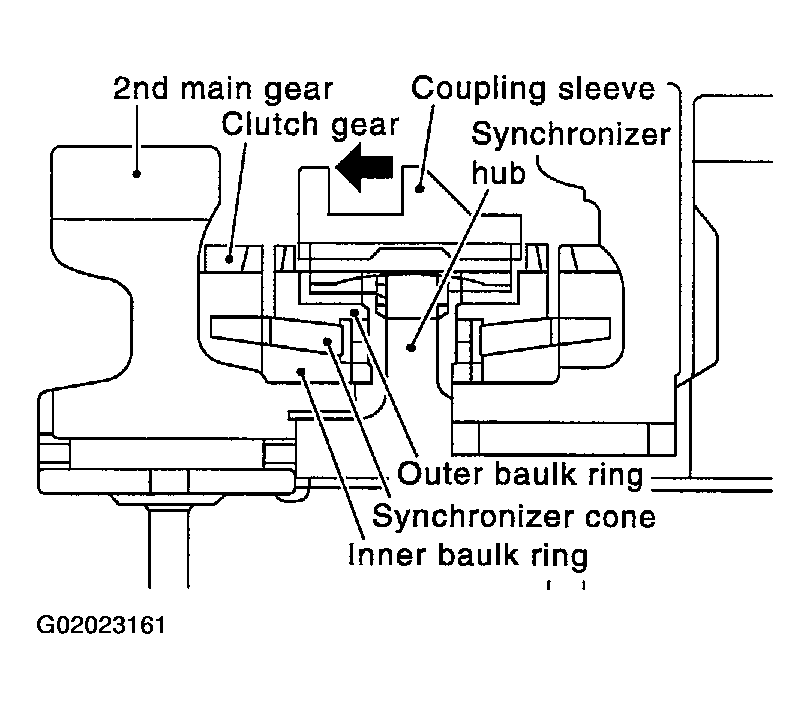

Fig 1: Cross-Sectional View & Of Double-Cone Synchronizer
G02023161Courtesy of NISSAN MOTOR CO., U.S.A.
