Sunroof Switch Reading Function

WARNING: This page is about a different car, the 2004 Nissan Murano. However, it is still accessible from the selected car via links, so may be relevant.
  1. Description
    • Sunroof switch reads sunroof switch status, and controls various electrical components according to the results.
    • Sunroof switch reads information of 8 switches by combining five terminals.
  2. Sunroof motor assembly - Operation table of sunroof switch

    Reads operation status of sunroof switch by the combination shown in Fig 1 .

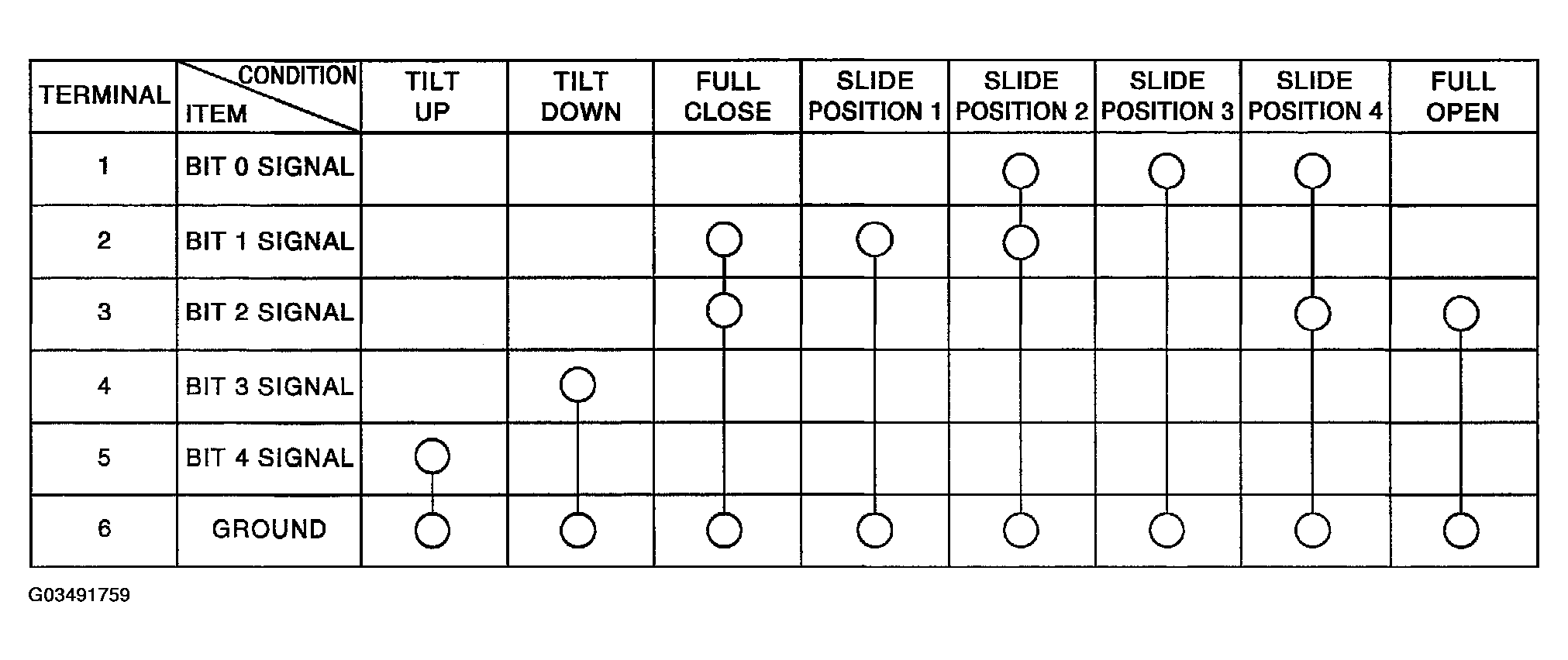

    Fig 1: Sunroof Switch Reading Function Chart
    G03491759Courtesy of NISSAN MOTOR CO., U.S.A.
