Sliding Switch Circuit Check

With CONSULT-II

With "SLIDE SW-FR, SLIDE SW-RR" on the DATA MONITOR, operate the sliding switch to check ON/OFF operation.

Fig 1: Monitor Item Table

Courtesy of NISSAN MOTOR CO., U.S.A.

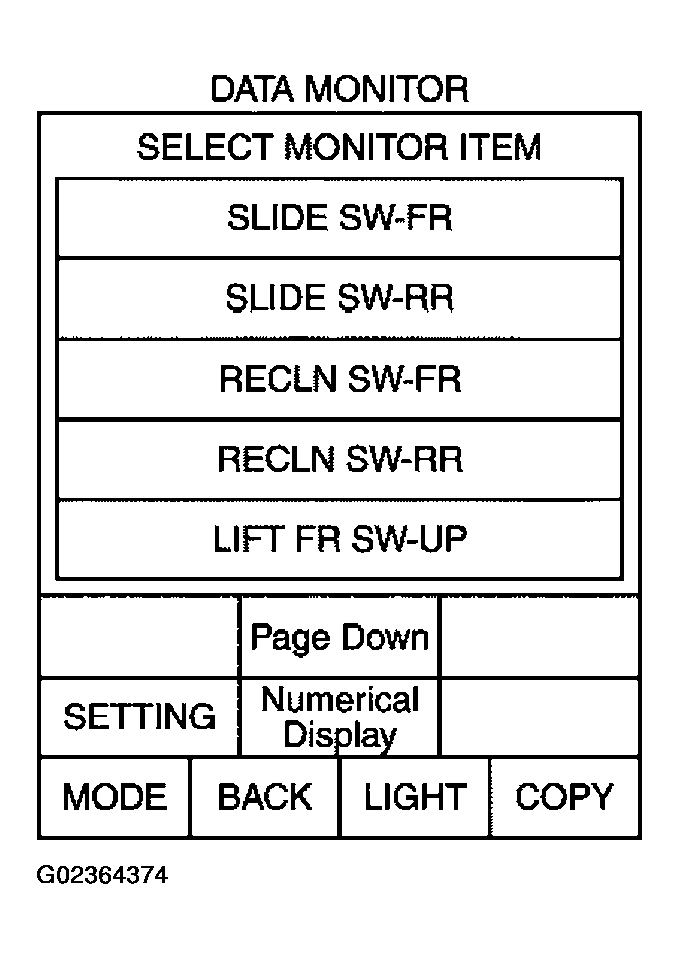

Fig 2: Data Monitor Display

Courtesy of NISSAN MOTOR CO., U.S.A.

Without CONSULT-II

1. Turn ignition switch OFF.
2. Sliding switch operate, check voltage between driver seat control unit connector and ground.

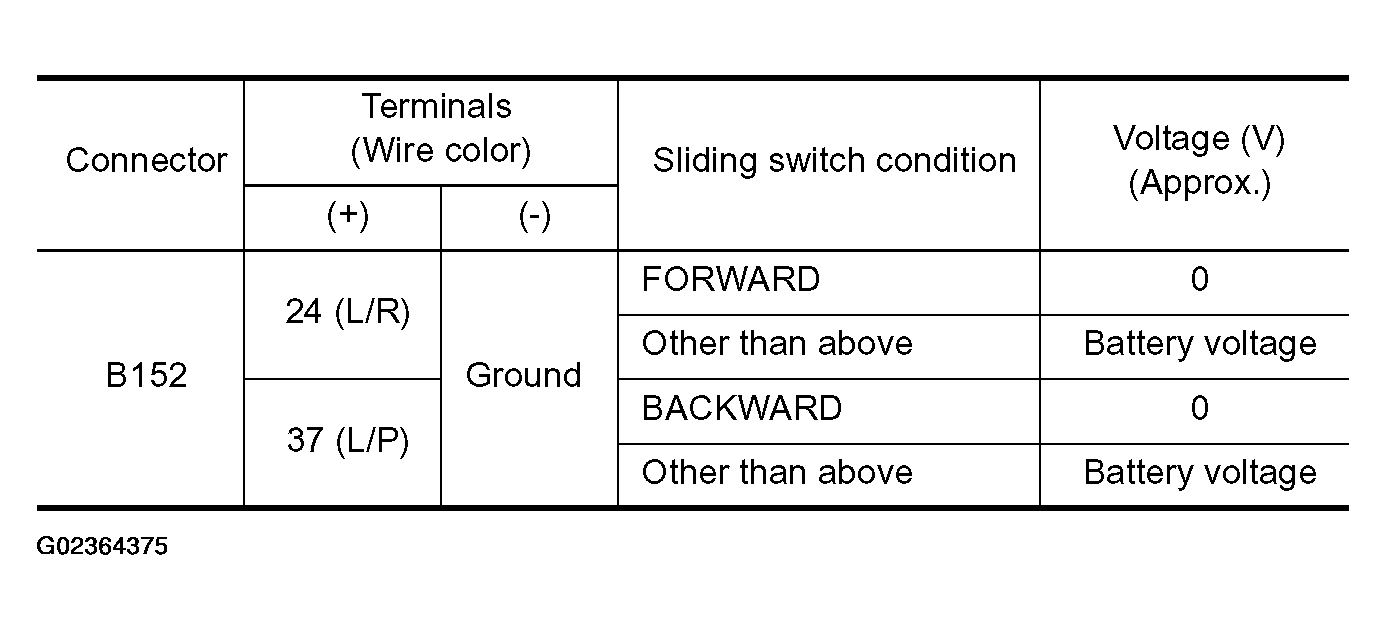

   Fig 3: Voltage Table

   Courtesy of NISSAN MOTOR CO., U.S.A.
   Fig 4: Checking Voltage Between Terminal 24, 37 And Ground

   Courtesy of NISSAN MOTOR CO., U.S.A.

OK or NG

1. OK : Sliding switch circuit is OK.
2. NG : GO TO 2.

1. Disconnect driver seat control unit connector and power seat switch (driver side) connector.
2. Check continuity between driver seat control unit connector B152 terminals 24, 37 and driver power seat switch connector B154 terminals 24, 37.
   1. 24 (L/R) - 24 (L/R) : Continuity should exist.
   2. 37 (L/P) - 37 (L/P) : Continuity should exist.
3. Check continuity between driver seat control unit connector B152 terminals 24, 37 and ground.
   1. 24 (L/R) - Ground : Continuity should not exist.
   2. 37 (L/P) - Ground : Continuity should not exist.

OK or NG

1. OK : GO TO 3.
2. NG : Repair or replace harness between driver seat control unit and power seat switch.

Fig 5: Checking Continuity Between Terminals 24, 37 And Ground

Courtesy of NISSAN MOTOR CO., U.S.A.

Sliding switch operate, check continuity between power seat switch connector B154 terminal 24, 27 and 61D.

Fig 6: Continuity Table

Courtesy of NISSAN MOTOR CO., U.S.A.

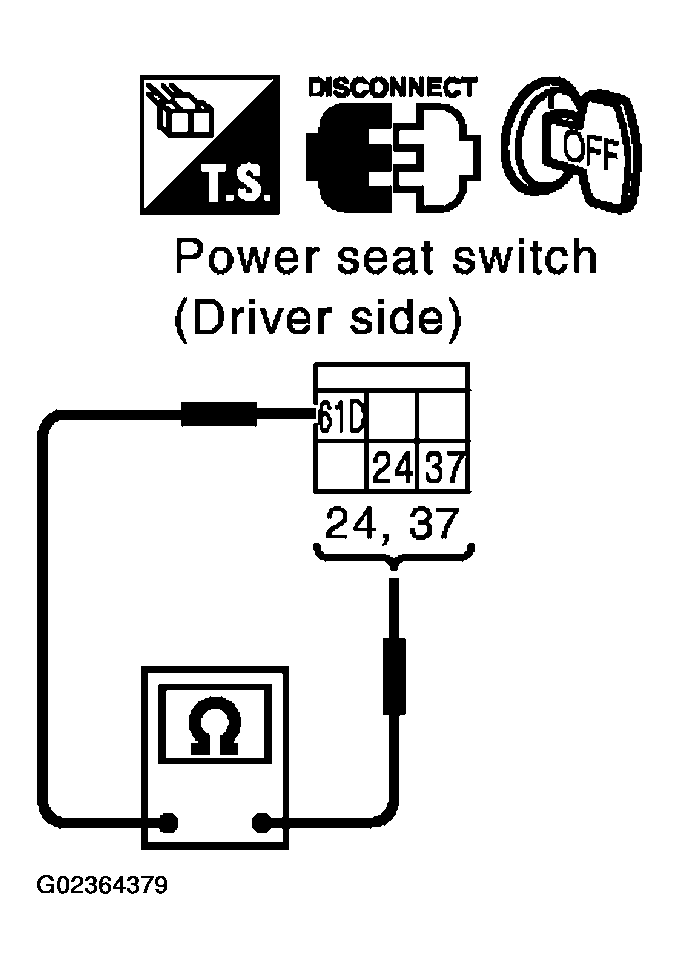

Fig 7: Checking Continuity Between Power Seat Switch Connector B154 Terminal 24, 27 And 61D

Courtesy of NISSAN MOTOR CO., U.S.A.

OK or NG

1. OK : Check the condition of the harness and connector.
2. NG : Replace driver power seat switch.
