Removal and Installation of Display Unit: Removal

WARNING: This page is about a different car, the 2005 Nissan 350Z. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove cluster lid C. Refer to "INSTRUMENT PANEL ASSEMBLY ".
  2. Remove screws (2) and remove display unit.

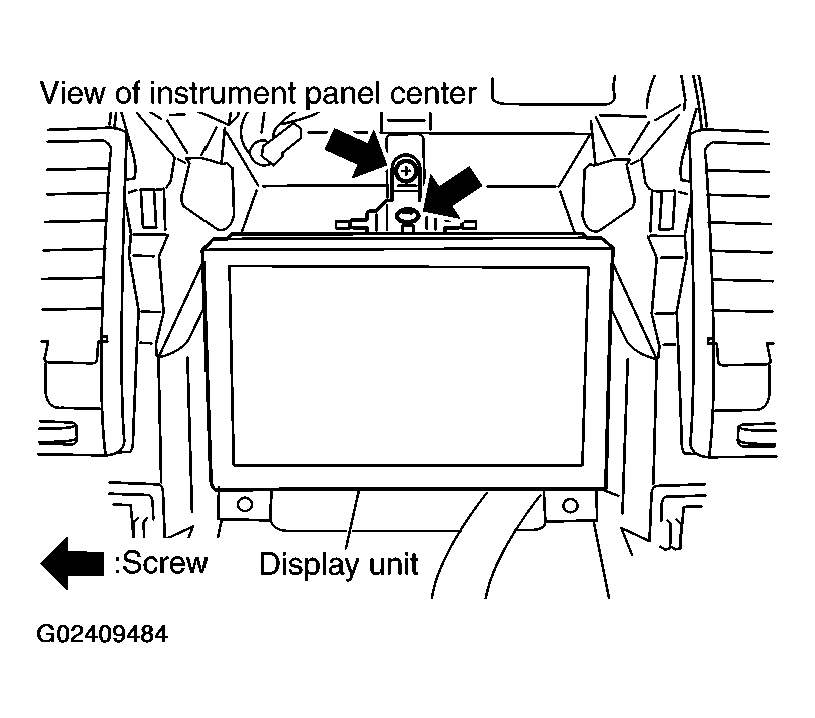

    Fig 1: Removing Display Unit
    G02409484Courtesy of NISSAN MOTOR CO., U.S.A.
  3. Remove screws (4), and remove bracket.
    Fig 2: Removing Display Unit Bracket
    G02409485Courtesy of NISSAN MOTOR CO., U.S.A.
