Disassembly and Assembly

WARNING: This page is about a different car, the 2004 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

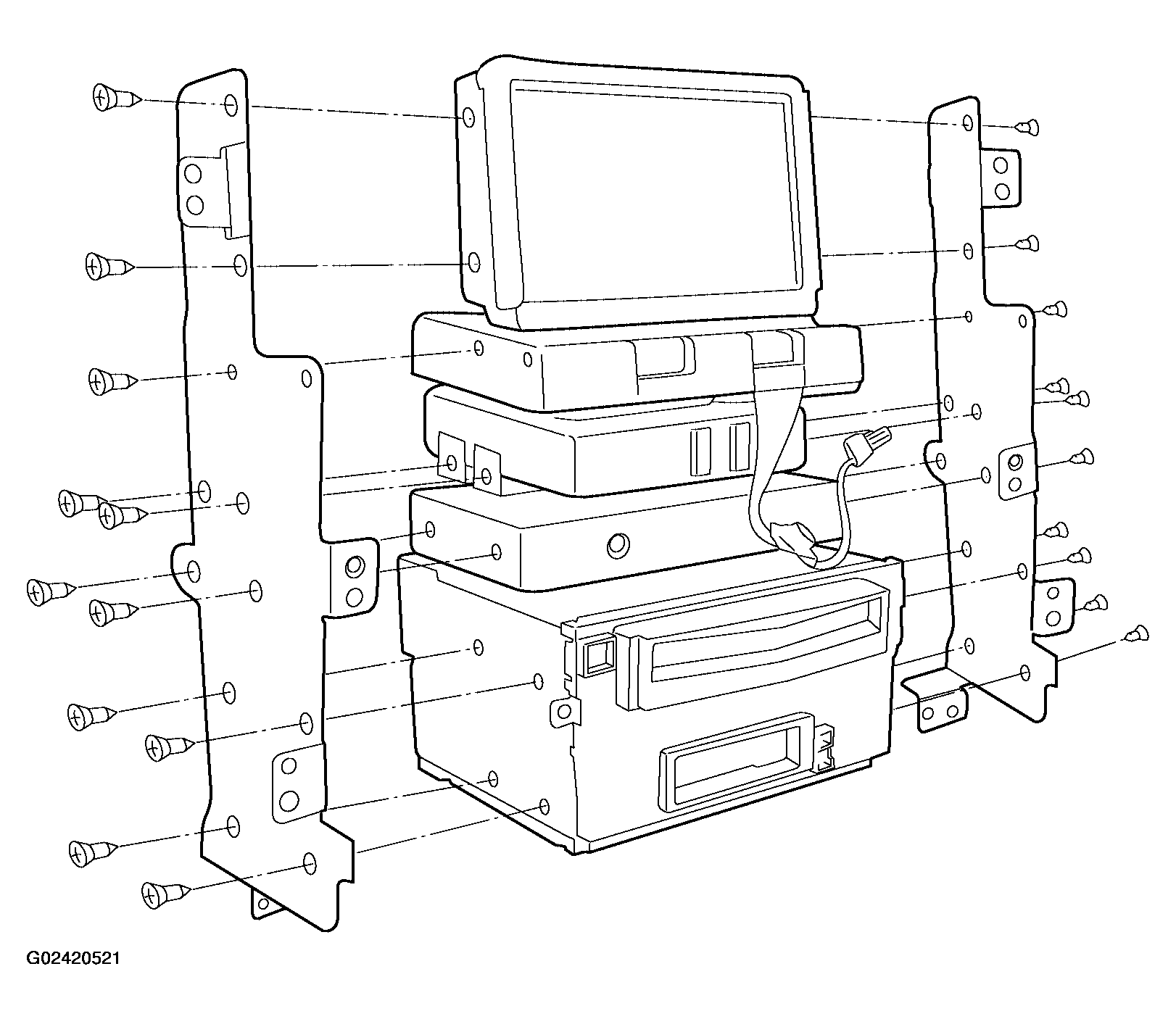

Fig 1: Disassembling Instrument Panel Assembly
G02420521Courtesy of NISSAN MOTOR CO., U.S.A.
  1. Remove screws from display unit and remove display unit from brackets.
    CAUTION: Handle the display unit carefully to avoid damage.
  2. Remove screws and remove unified meter and A/C amp.
  3. Remove screws and remove automatic drive positioner control unit from brackets.
  4. Remove screws and remove the display control unit from brackets.
    NOTE: The display control unit is supplied only on vehicles with the navigation system.
  5. Remove screws and remove audio unit from brackets.
    CAUTION:
    • When carrying audio unit body, do not touch internal mechanism access from cassette tape slot.
    • Be careful not to allow foreign material to enter from cassette tape slot.

Assembly is in the reverse order of disassembly

CAUTION: Use appropriate screws for each component, the screws for the audio unit are different from those the unified meter and A/C amp.
