Engine Control System: Wiring Diagram

WARNING: This page is about a different car, the 2011 Nissan Xterra. However, it is still accessible from the selected car via links, so may be relevant.

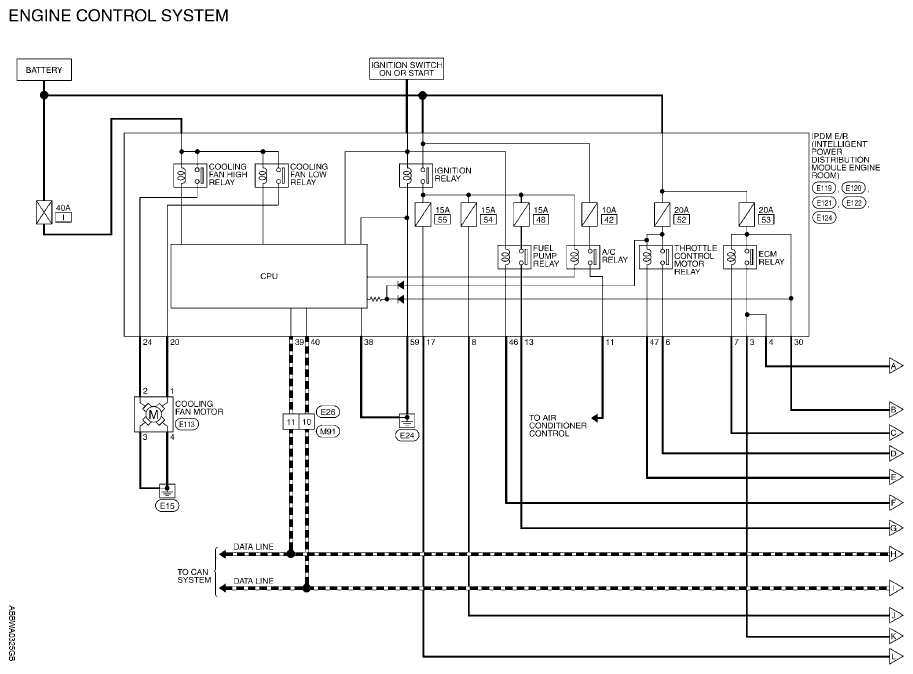

Fig 1: Engine Control System - Wiring Diagram (1 Of 5)
G07152359Courtesy of NISSAN NORTH AMERICA, INC.

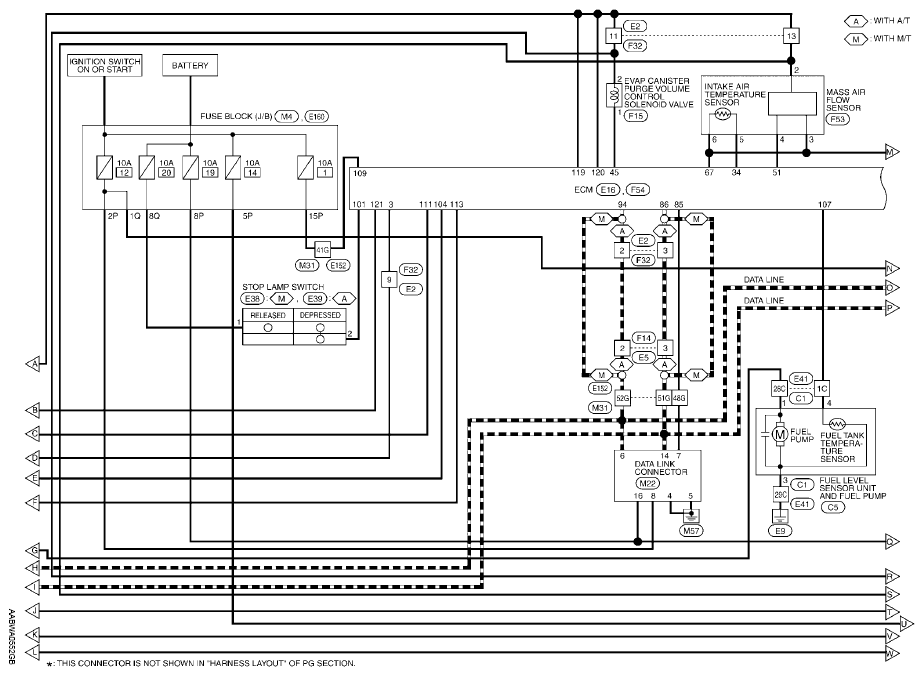

Fig 2: Engine Control System - Wiring Diagram (2 Of 5)
G07152360Courtesy of NISSAN NORTH AMERICA, INC.

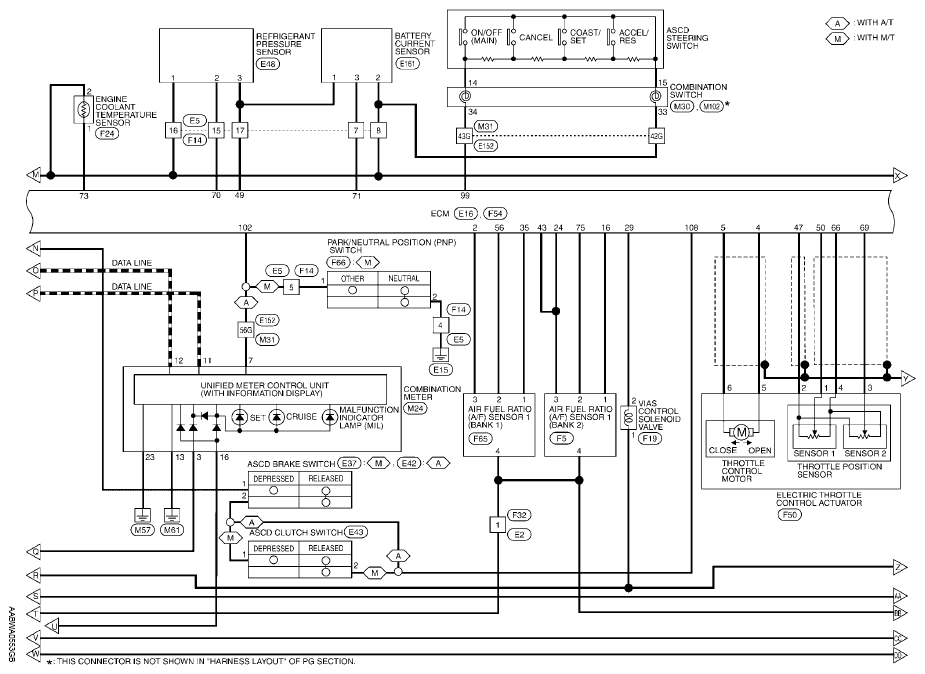

Fig 3: Engine Control System - Wiring Diagram (3 Of 5)
G07152361Courtesy of NISSAN NORTH AMERICA, INC.
Fig 4: Engine Control System - Wiring Diagram (4 Of 5)
G07152362Courtesy of NISSAN NORTH AMERICA, INC.
Fig 5: Engine Control System - Wiring Diagram (5 Of 5)
G07152363Courtesy of NISSAN NORTH AMERICA, INC.

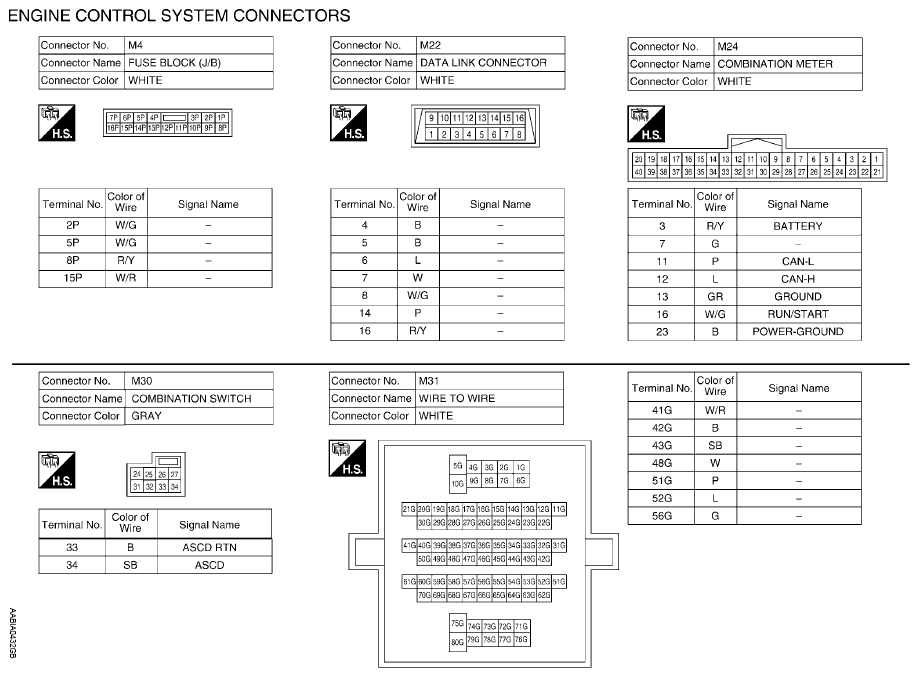

Fig 6: Identifying Engine Control System Connectors (1 Of 15)
G07152364Courtesy of NISSAN NORTH AMERICA, INC.
Fig 7: Identifying Engine Control System Connectors (2 Of 15)
G07152365Courtesy of NISSAN NORTH AMERICA, INC.

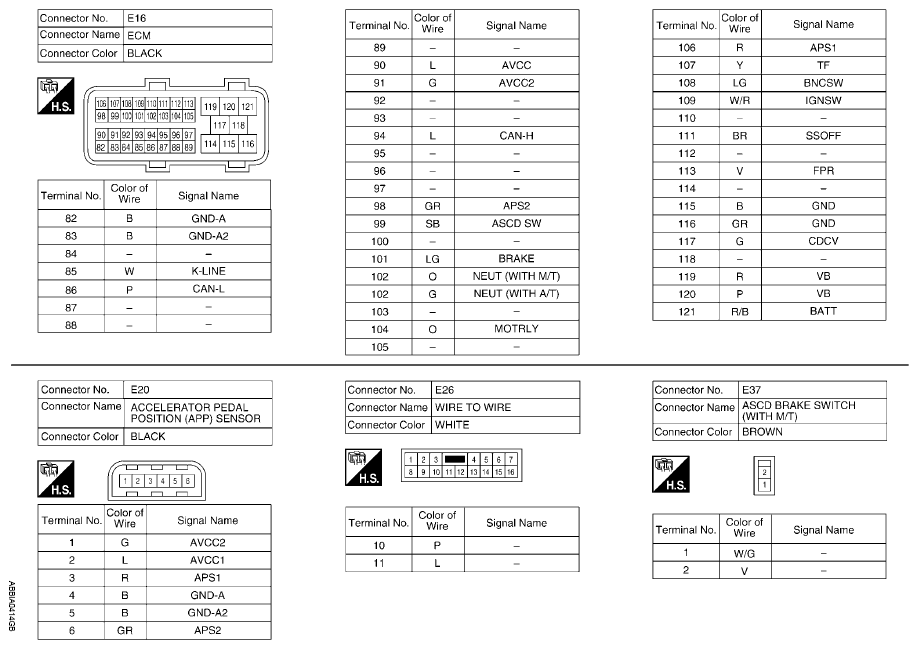

Fig 8: Identifying Engine Control System Connectors (3 Of 15)
G07152366Courtesy of NISSAN NORTH AMERICA, INC.

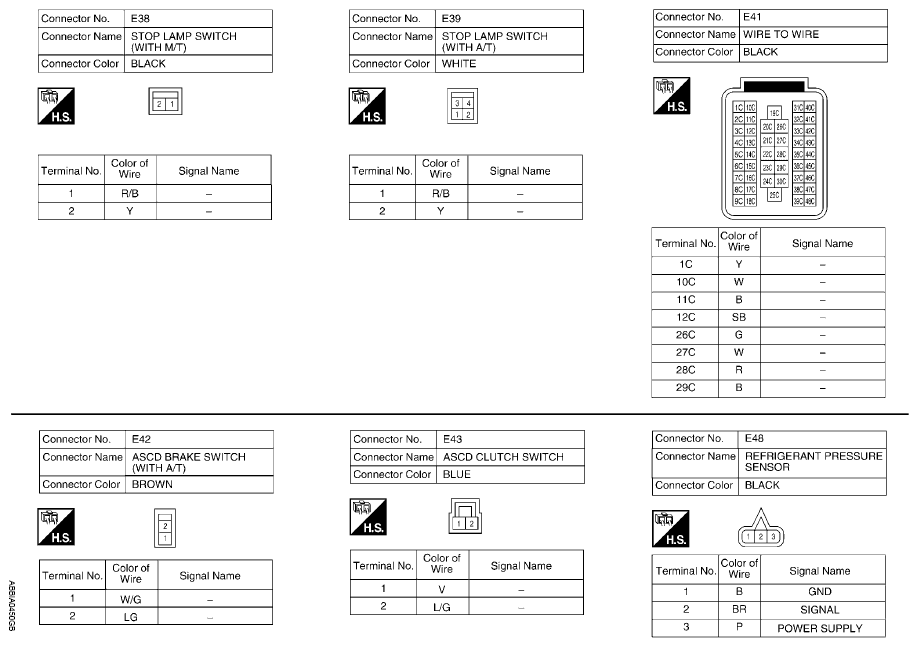

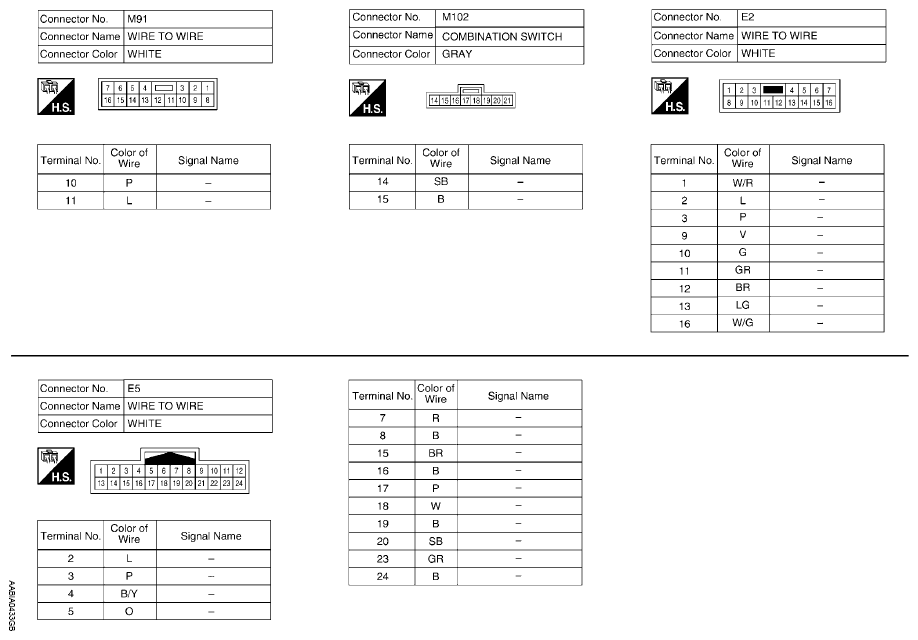

Fig 9: Identifying Engine Control System Connectors (4 Of 15)
G07152367Courtesy of NISSAN NORTH AMERICA, INC.

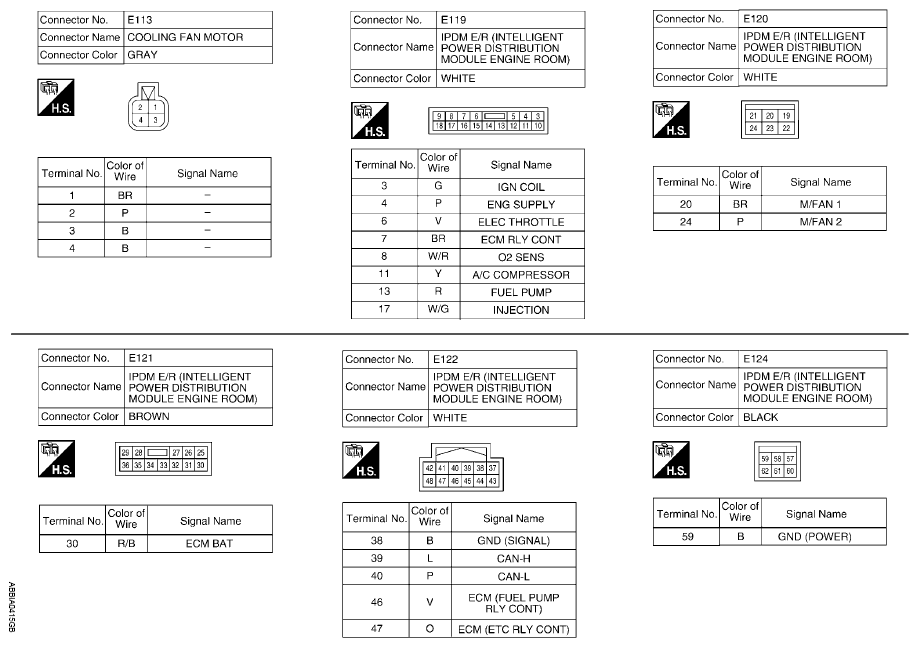

Fig 10: Identifying Engine Control System Connectors (5 Of 15)
G07152368Courtesy of NISSAN NORTH AMERICA, INC.

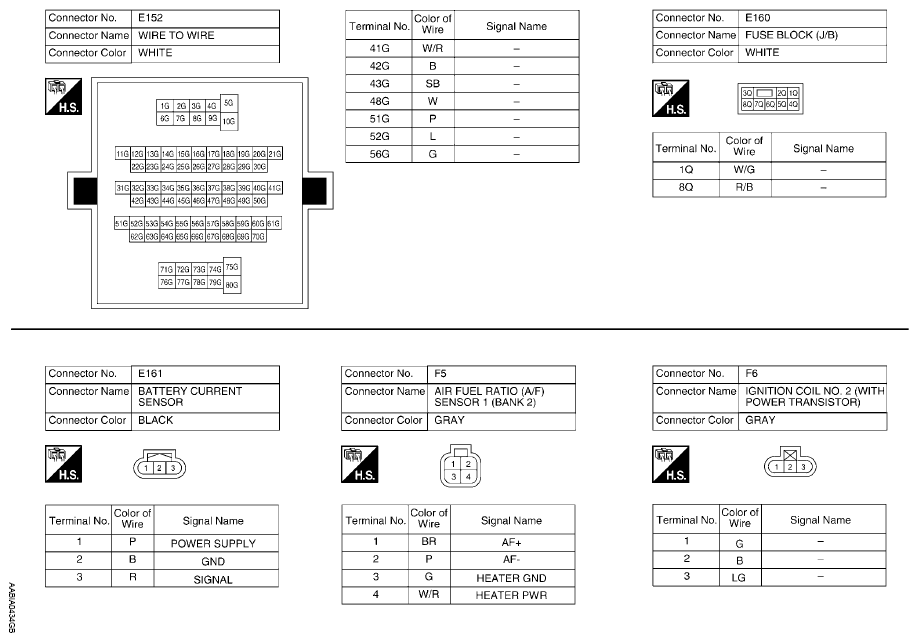

Fig 11: Identifying Engine Control System Connectors (6 Of 15)
G07152369Courtesy of NISSAN NORTH AMERICA, INC.

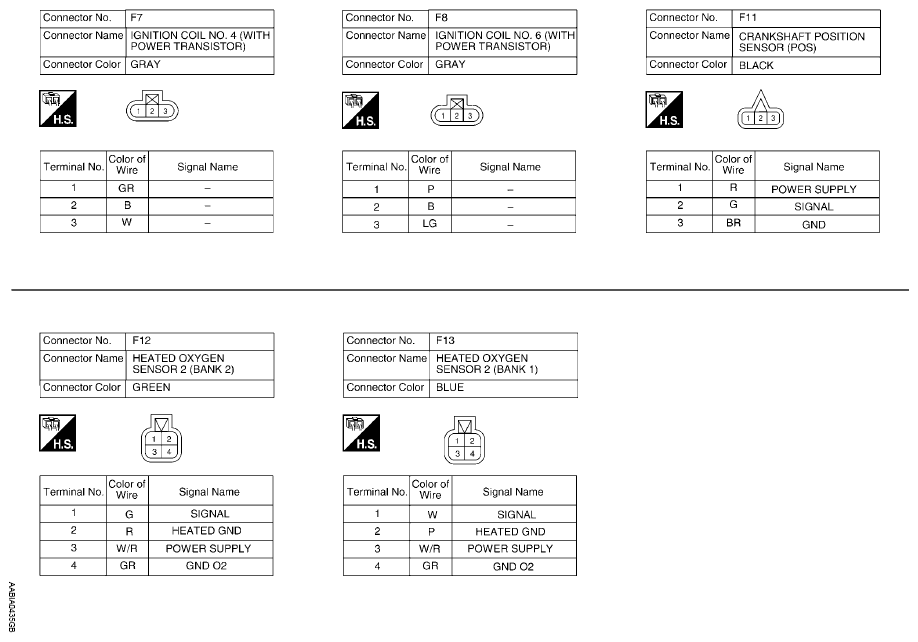

Fig 12: Identifying Engine Control System Connectors (7 Of 15)
G07152370Courtesy of NISSAN NORTH AMERICA, INC.

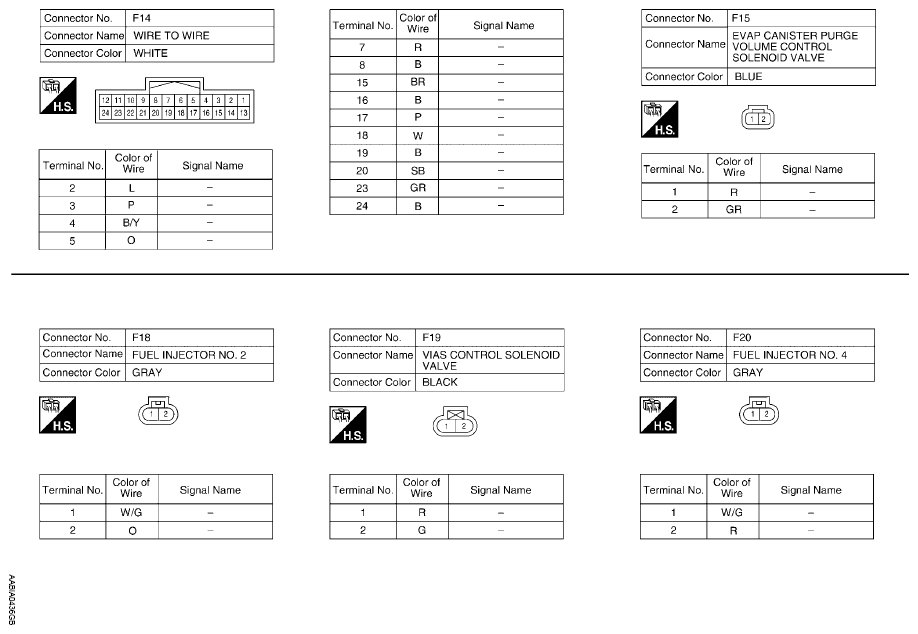

Fig 13: Identifying Engine Control System Connectors (8 Of 15)
G07152371Courtesy of NISSAN NORTH AMERICA, INC.

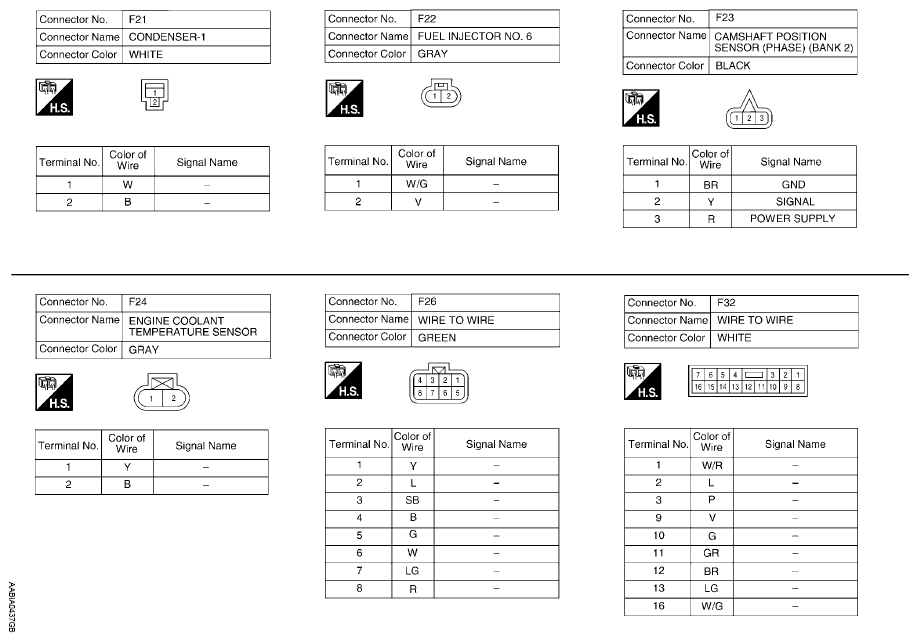

Fig 14: Identifying Engine Control System Connectors (9 Of 15)
G07152372Courtesy of NISSAN NORTH AMERICA, INC.

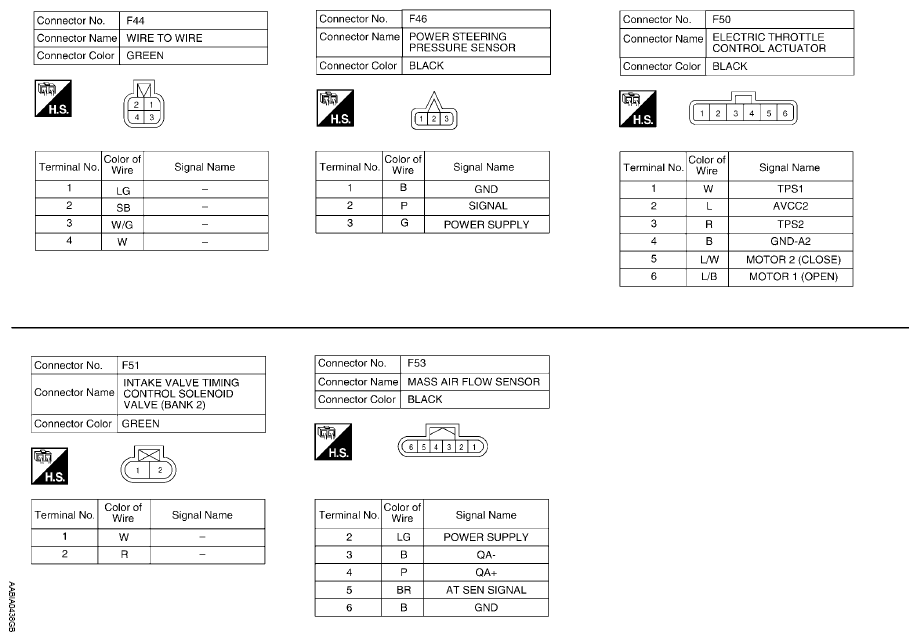

Fig 15: Identifying Engine Control System Connectors (10 Of 15)
G07152373Courtesy of NISSAN NORTH AMERICA, INC.

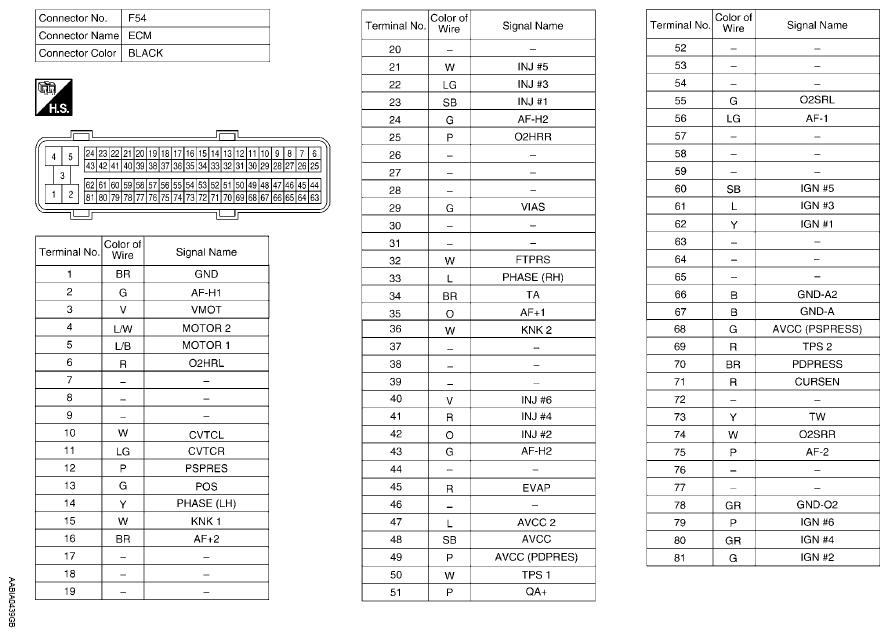

Fig 16: Identifying Engine Control System Connectors (11 Of 15)
G07152374Courtesy of NISSAN NORTH AMERICA, INC.

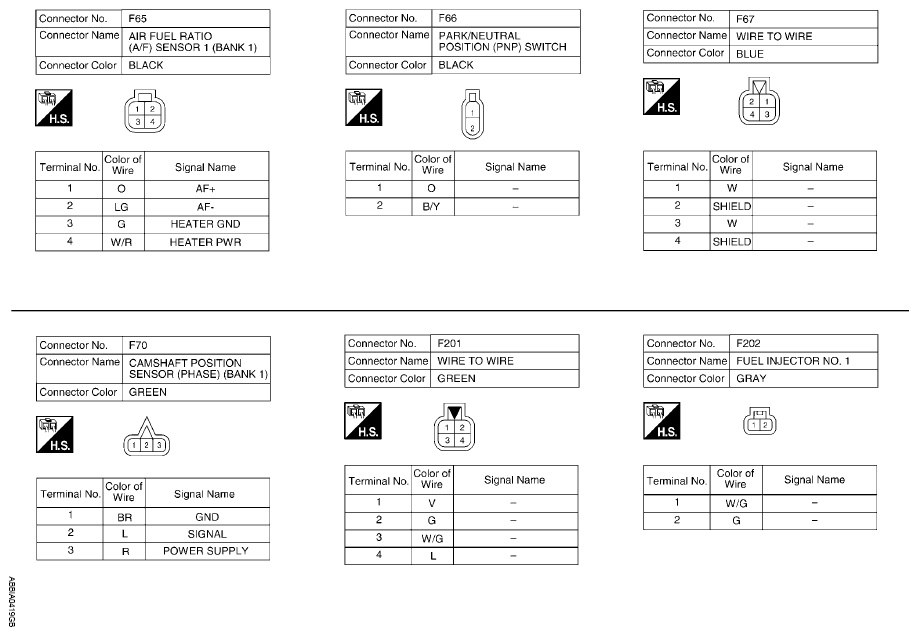

Fig 17: Identifying Engine Control System Connectors (12 Of 15)
G07152375Courtesy of NISSAN NORTH AMERICA, INC.

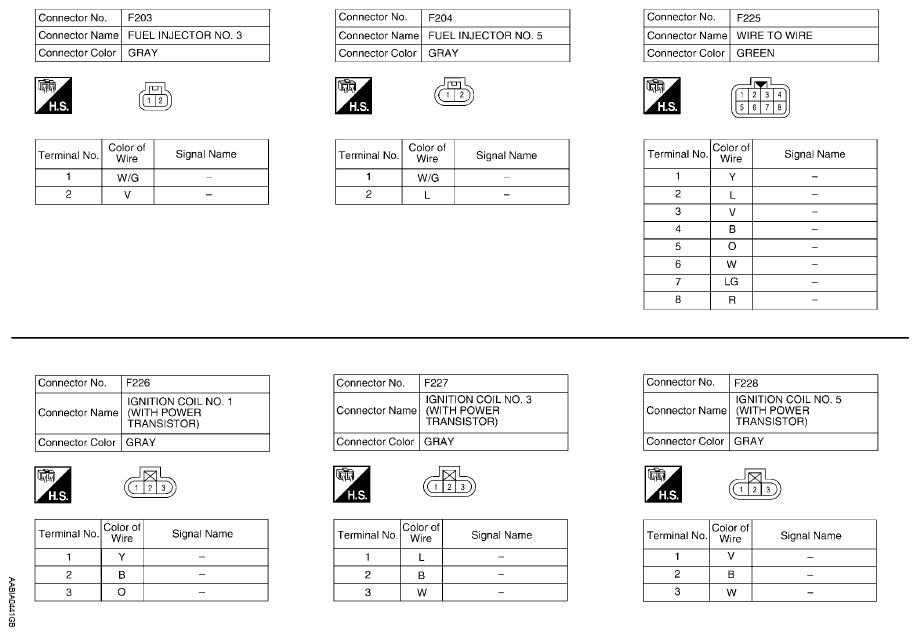

Fig 18: Identifying Engine Control System Connectors (13 Of 15)
G07152376Courtesy of NISSAN NORTH AMERICA, INC.

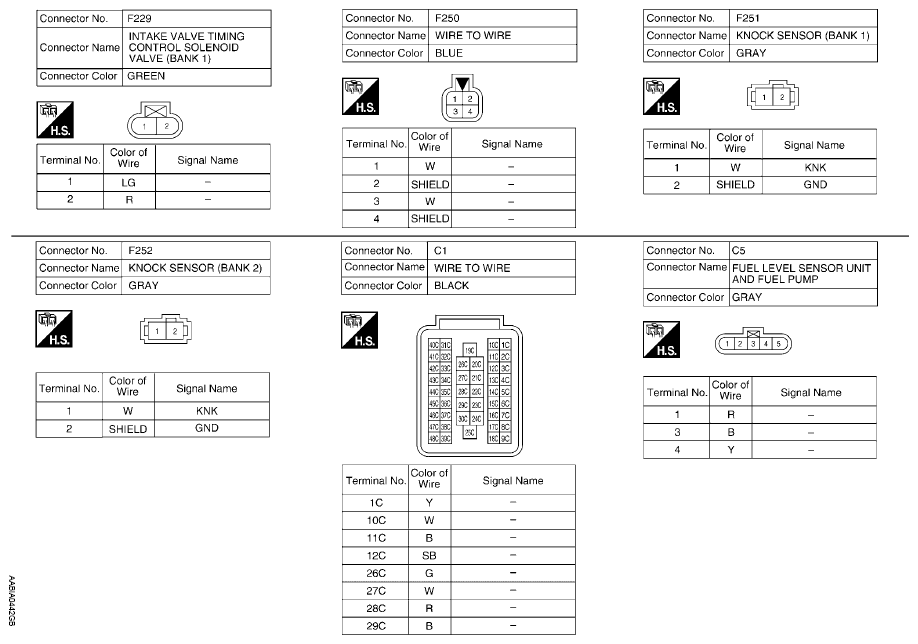

Fig 19: Identifying Engine Control System Connectors (14 Of 15)
G07152377Courtesy of NISSAN NORTH AMERICA, INC.
Fig 20: Identifying Engine Control System Connectors (15 Of 15)
G07152378Courtesy of NISSAN NORTH AMERICA, INC.
