Shift Control: Inspection

WARNING: This page is about a different variant/trim than selected.

Check if the width of shift fork hook (sliding area with coupling sleeve) is within allowable specification.

Fig 1: Determining Side Wear
Courtesy of NISSAN MOTOR CO., U.S.A.

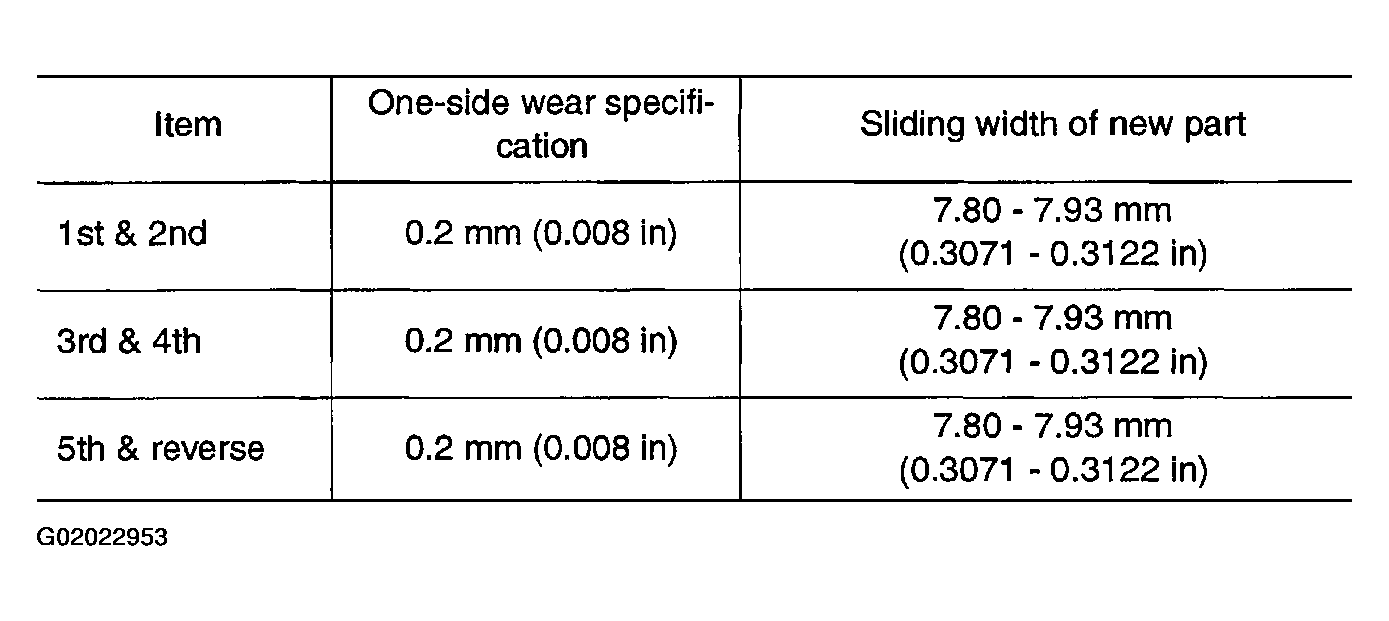

Fig 2: Identifying Wear Specifications
Courtesy of NISSAN MOTOR CO., U.S.A.
Check if shift check groove of fork rod or 5th and reverse check groove is worn, or has any other abnormalities.

Fig 3: Identifying Fork Rod Inspection Points
Courtesy of NISSAN MOTOR CO., U.S.A.
