Retainer Plate (Upper Body)

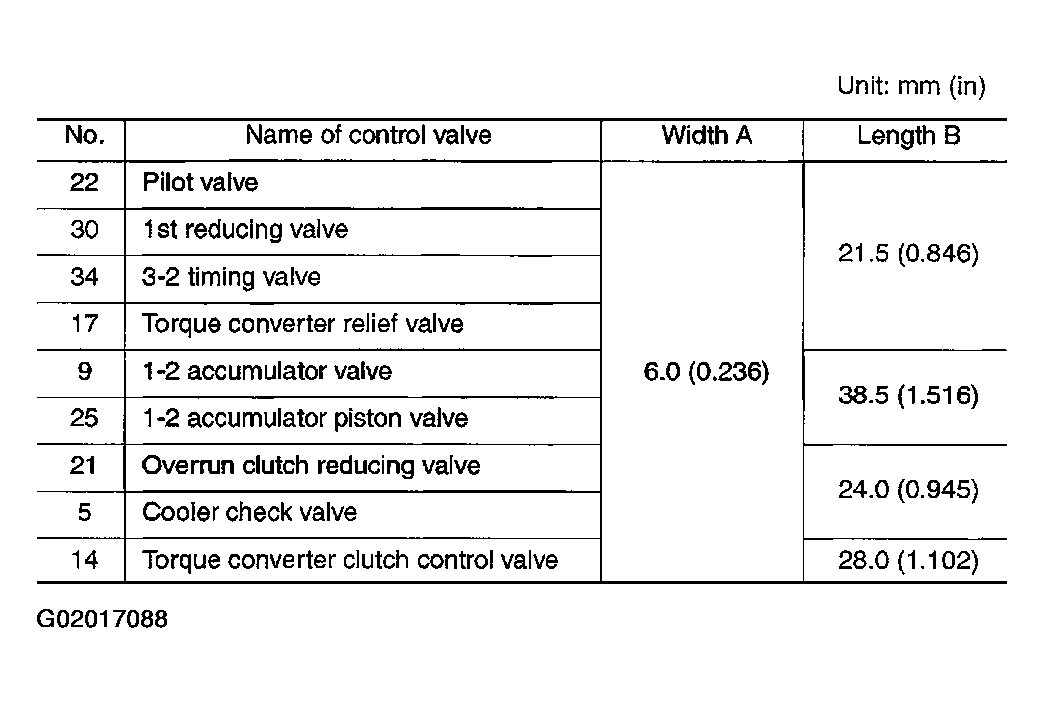

Fig 1: Upper Body Retainer Plate Control Valve Specifications
G02017088Courtesy of NISSAN MOTOR CO., U.S.A.
Fig 2: Identifying Upper Body Retainer Plate Width And Length
G02017089Courtesy of NISSAN MOTOR CO., U.S.A.
