Components (AWD Models)

WARNING: This page is about a different car, the 2006 Infiniti G35. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: Securely insert harness connector to pressure sensor.

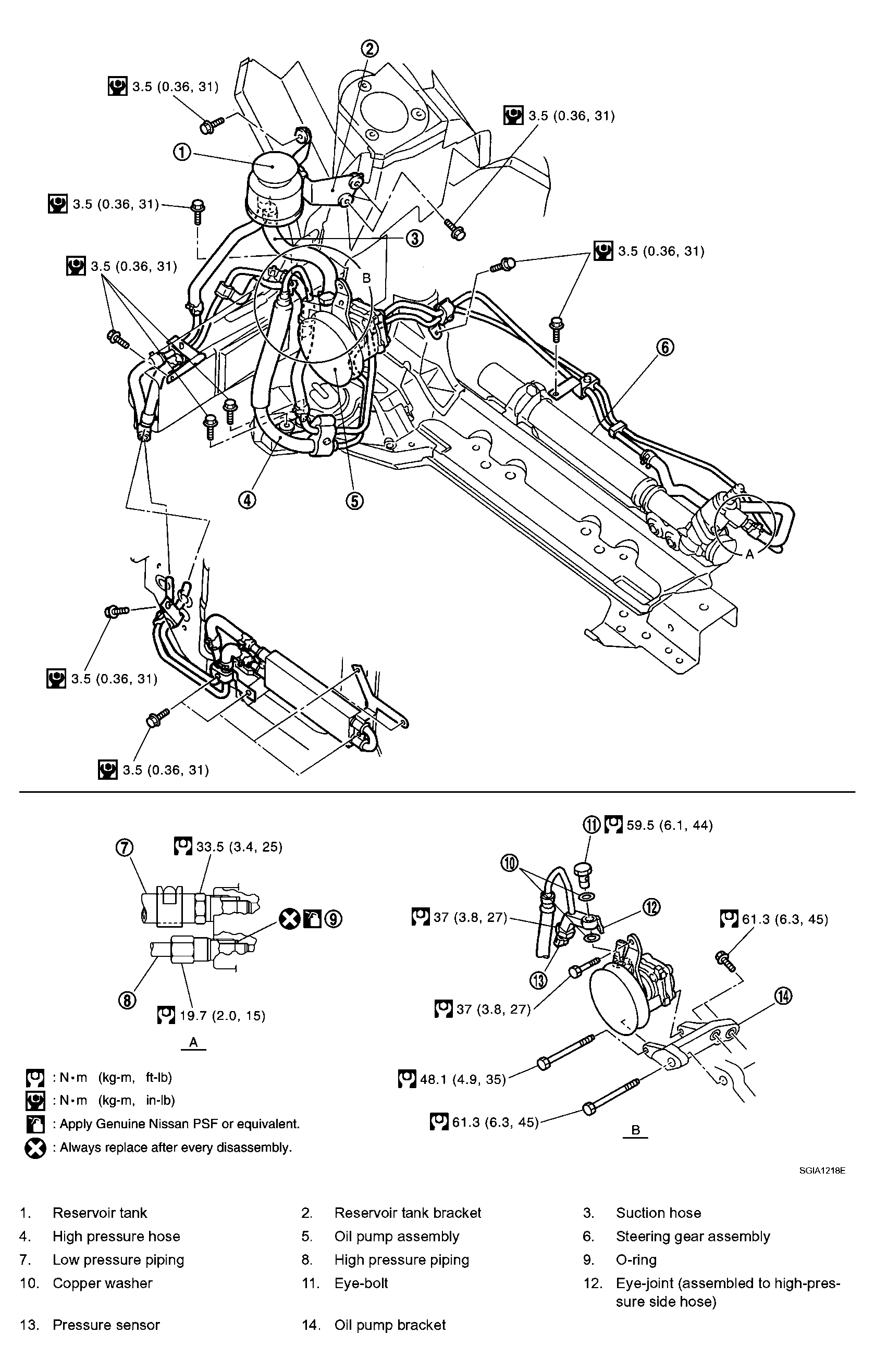

Fig 1: Hydraulic Line Replacement Components With Torque Specifications (AWD Models)
G04122143Courtesy of NISSAN MOTOR CO., U.S.A.
