BCM (Body Control Module): Wiring Diagram
WARNING: This page is about a different car, the 2011 Nissan Xterra. However, it is still accessible from the selected car via links, so may be relevant.

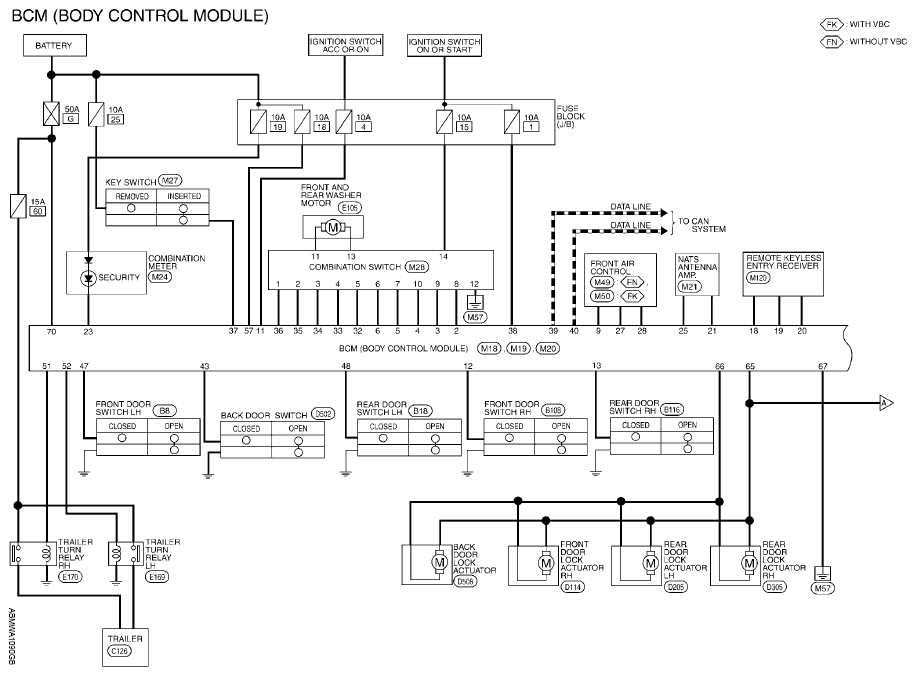

Fig 1: BCM (Body Control Module) - Wiring Diagram (1 Of 2)

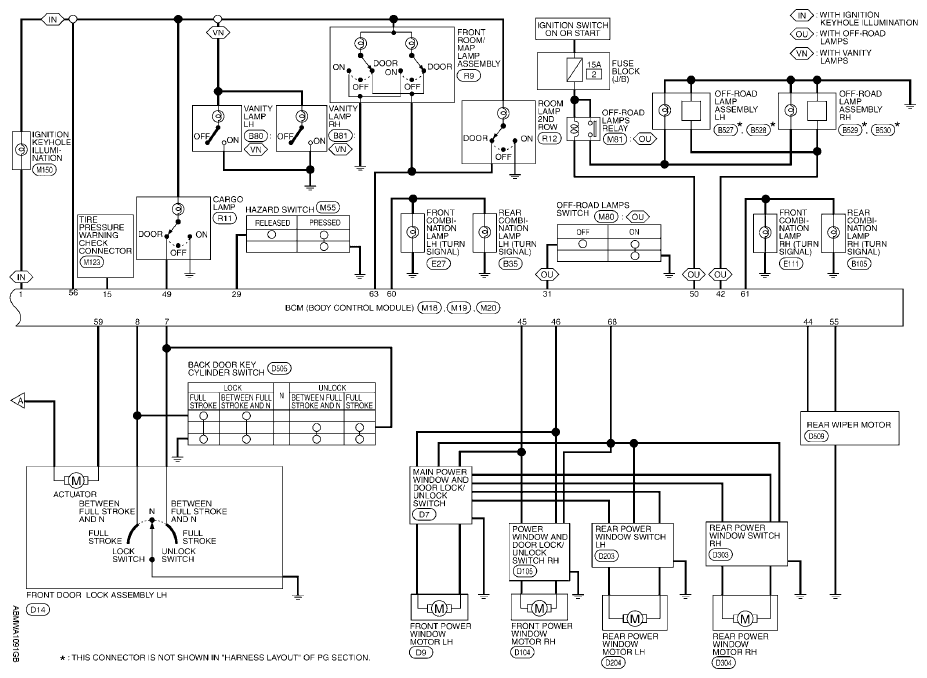

Fig 2: BCM (Body Control Module) - Wiring Diagram (2 Of 2)

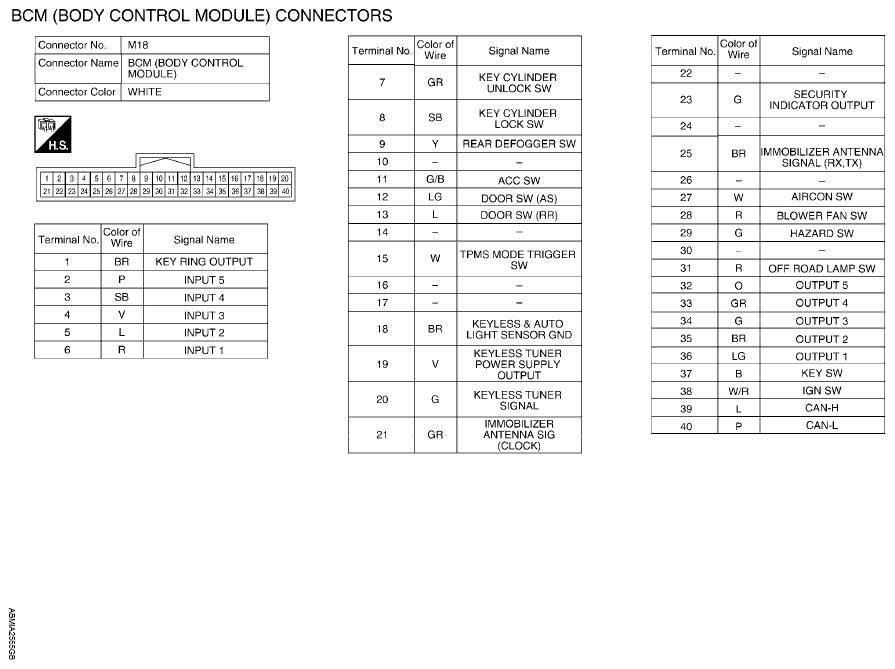

Fig 3: Identifying BCM (Body Control Module) Connectors (1 Of 2)

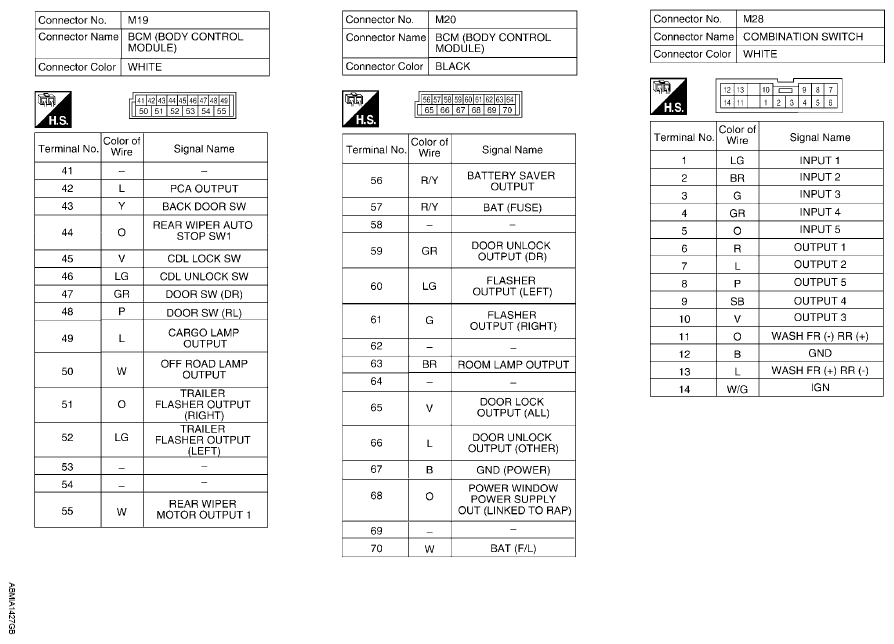

Fig 4: Identifying BCM (Body Control Module) Connectors (2 Of 2)
