Cross-sectional View: Notes

WARNING: This page is about a different variant/trim than selected.

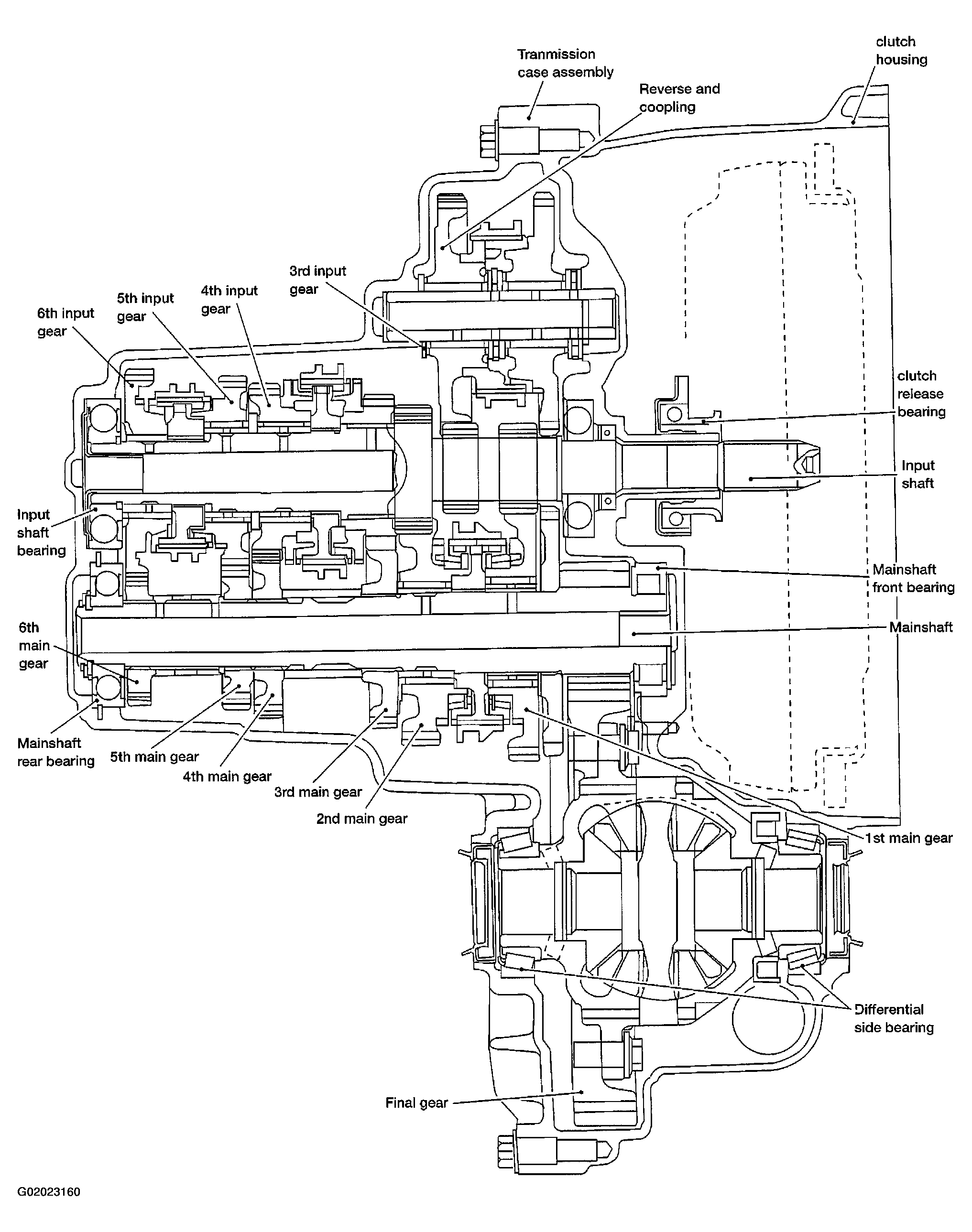

Fig 1: Cross-Sectional View Of RS6F51H Manual Transmission
G02023160Courtesy of NISSAN MOTOR CO., U.S.A.
