Shift Fork

WARNING: This page is about a different variant/trim than selected.

Check if the width of shift fork hook (sliding area with coupling sleeve) is within allowable specification below.

Fig 1: Determining Side Wear
Courtesy of NISSAN MOTOR CO., U.S.A.

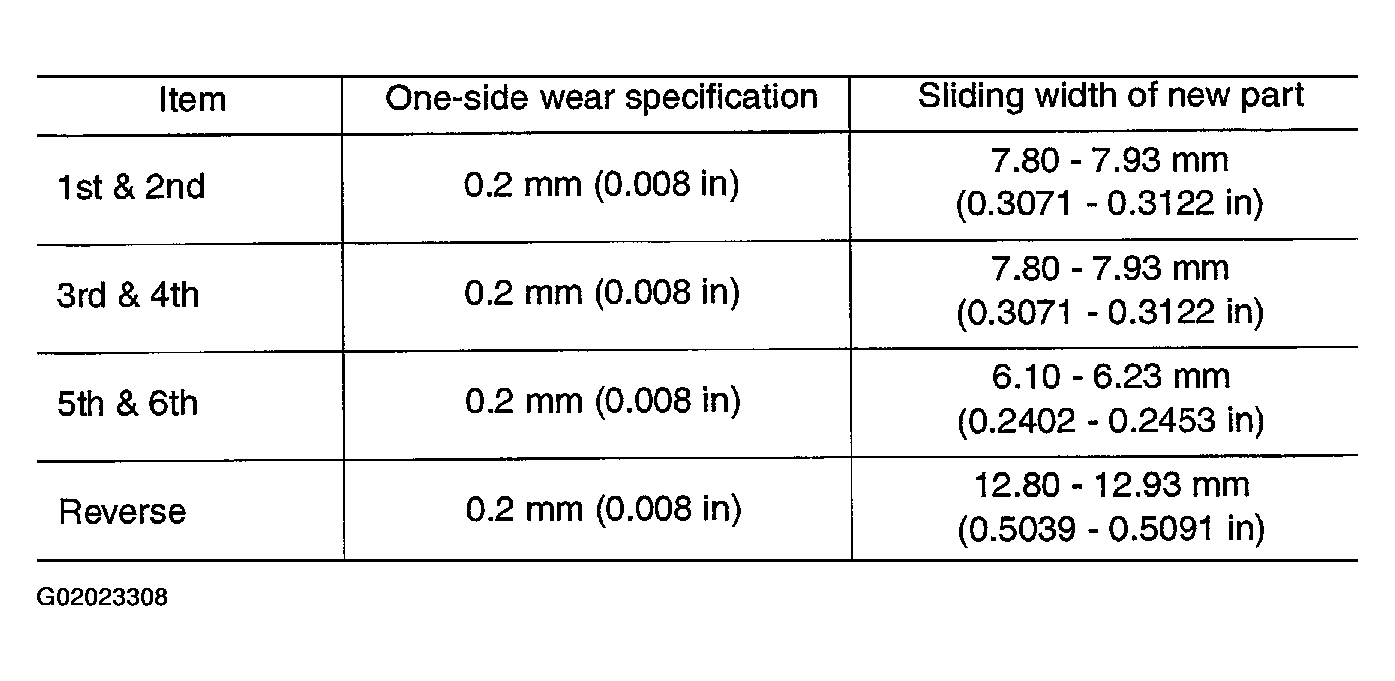

Fig 2: Identifying Wear Specifications
Courtesy of NISSAN MOTOR CO., U.S.A.
