Consult-II Reference Value In Data Monitor Mode

WARNING: This page is about a different variant/trim than selected.

Remarks: Specification data are reference values.

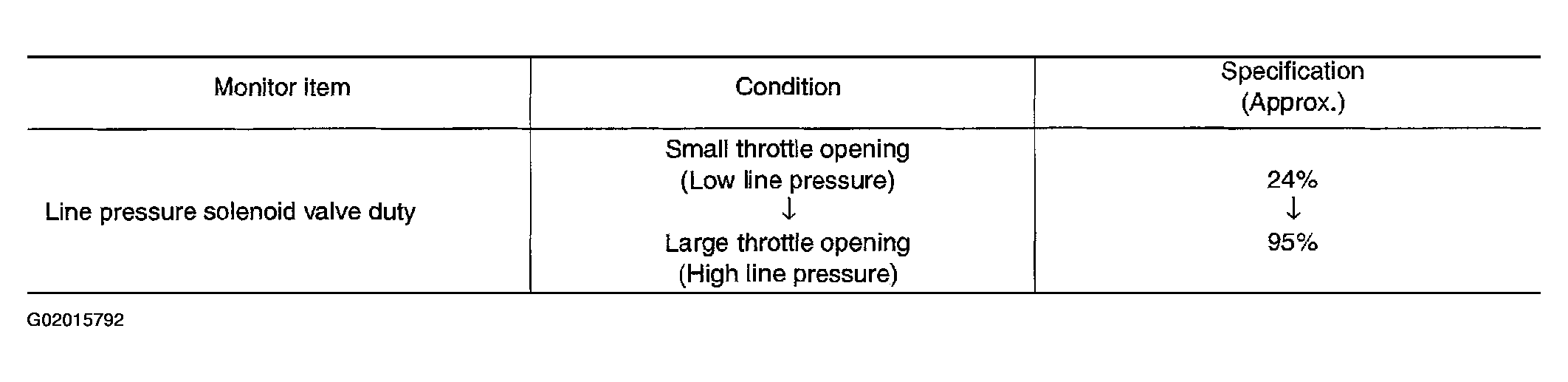

Fig 1: CONSULT-II Reference Value Chart (Data Monitor Mode)

Courtesy of NISSAN MOTOR CO., U.S.A.

NOTE: The line pressure duty cycle value is not consistent when the closed throttle position switch is ON. To confirm the line pressure duty cycle at low pressure, the accelerator (throttle) should be open until the closed throttle position switch is OFF.
