Wide Open Throttle Position Switch
WARNING:
This page is about a different variant/trim than selected.
Check continuity between terminals 4 and 5.

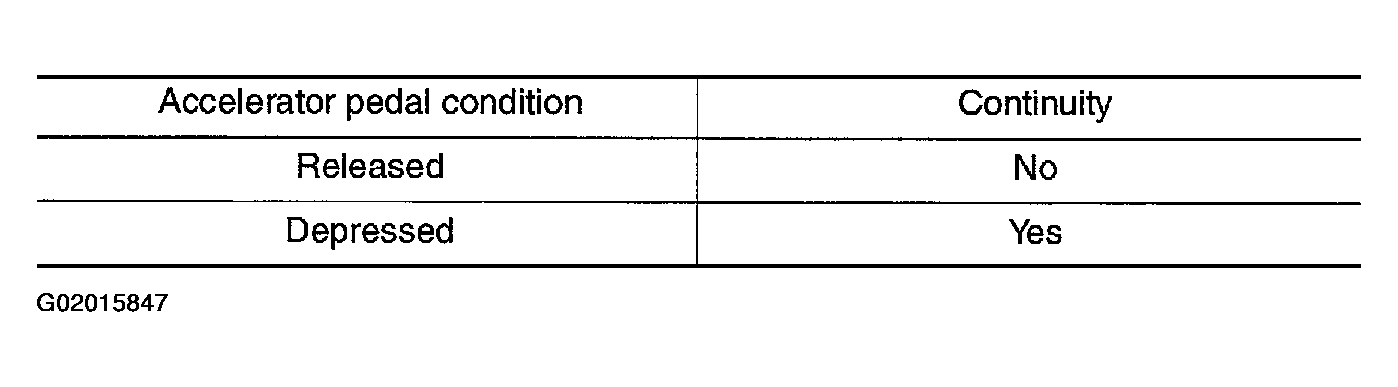

Fig 1: Wide Open Throttle Position Switch Continuity Specifications
Courtesy of NISSAN MOTOR CO., U.S.A.

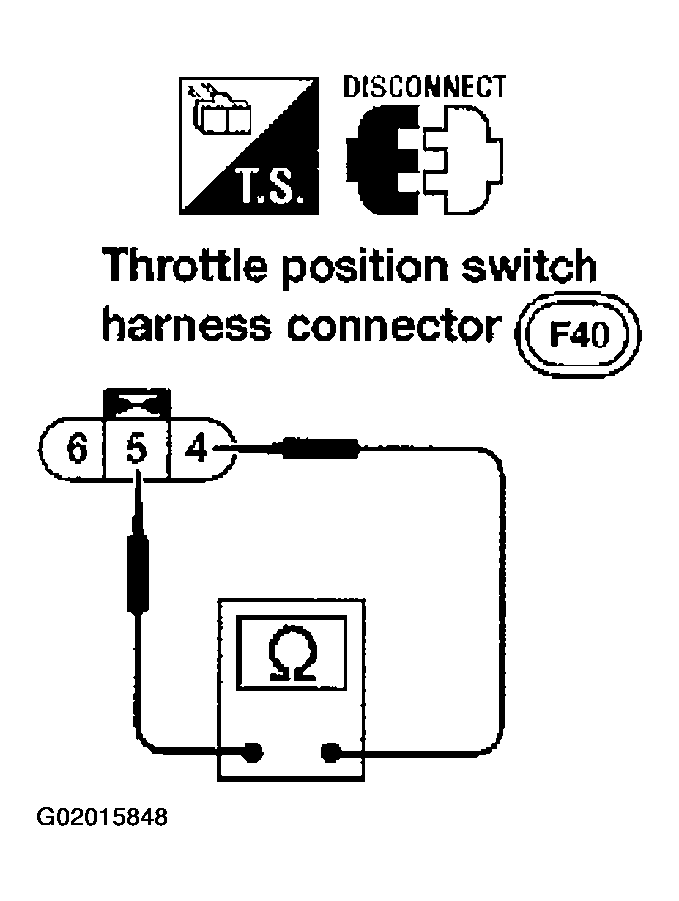

Fig 2: Checking Wide Open Throttle Position Switch Continuity
Courtesy of NISSAN MOTOR CO., U.S.A.
