Transaxle Gear Control
WARNING:
This page is about a different variant/trim than selected.
Refer to the figure below for removal and installation procedure.

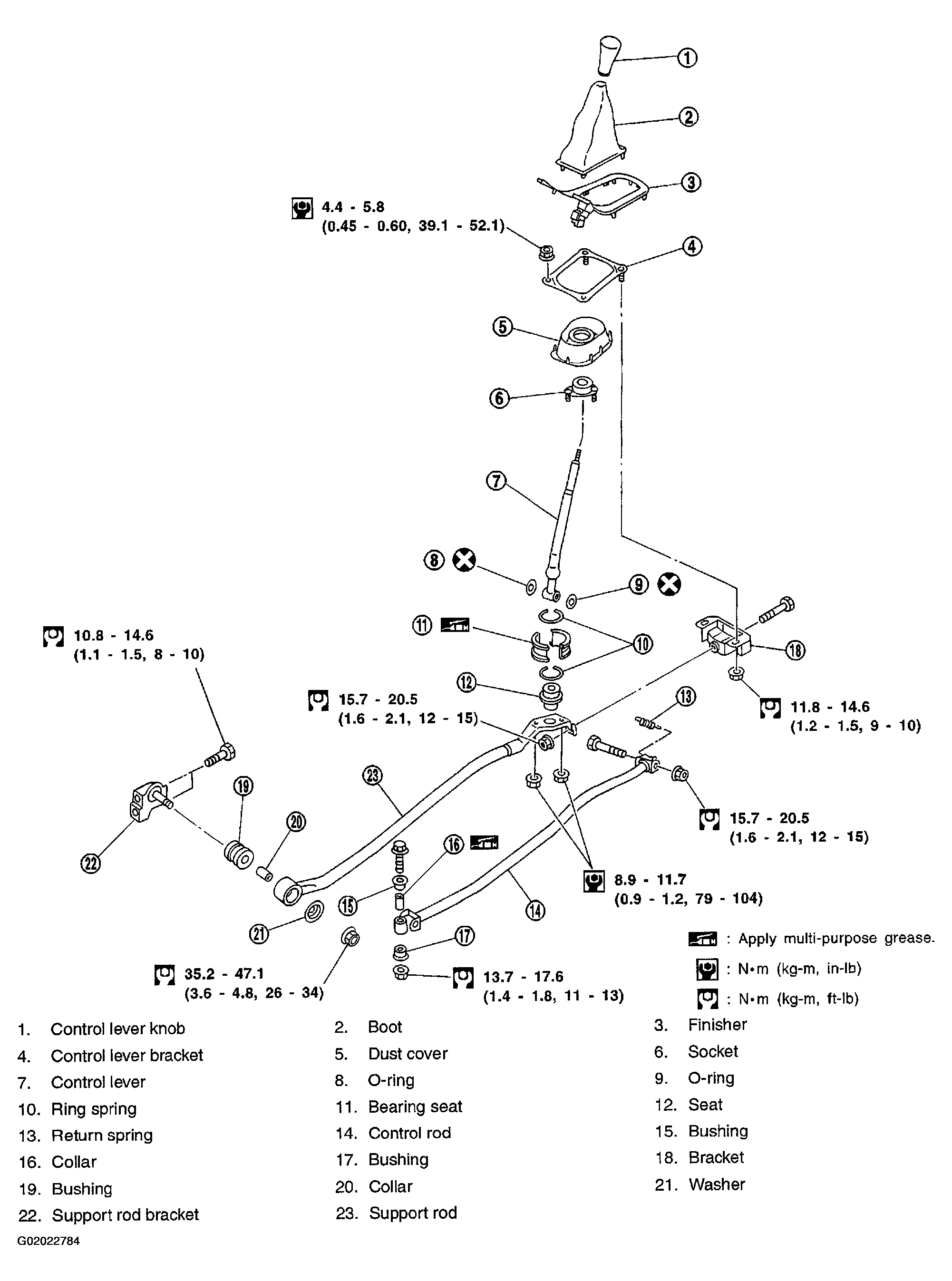

Fig 1: Exploded View Of Transaxle Gear Control Linkage
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
