Shift Control Components

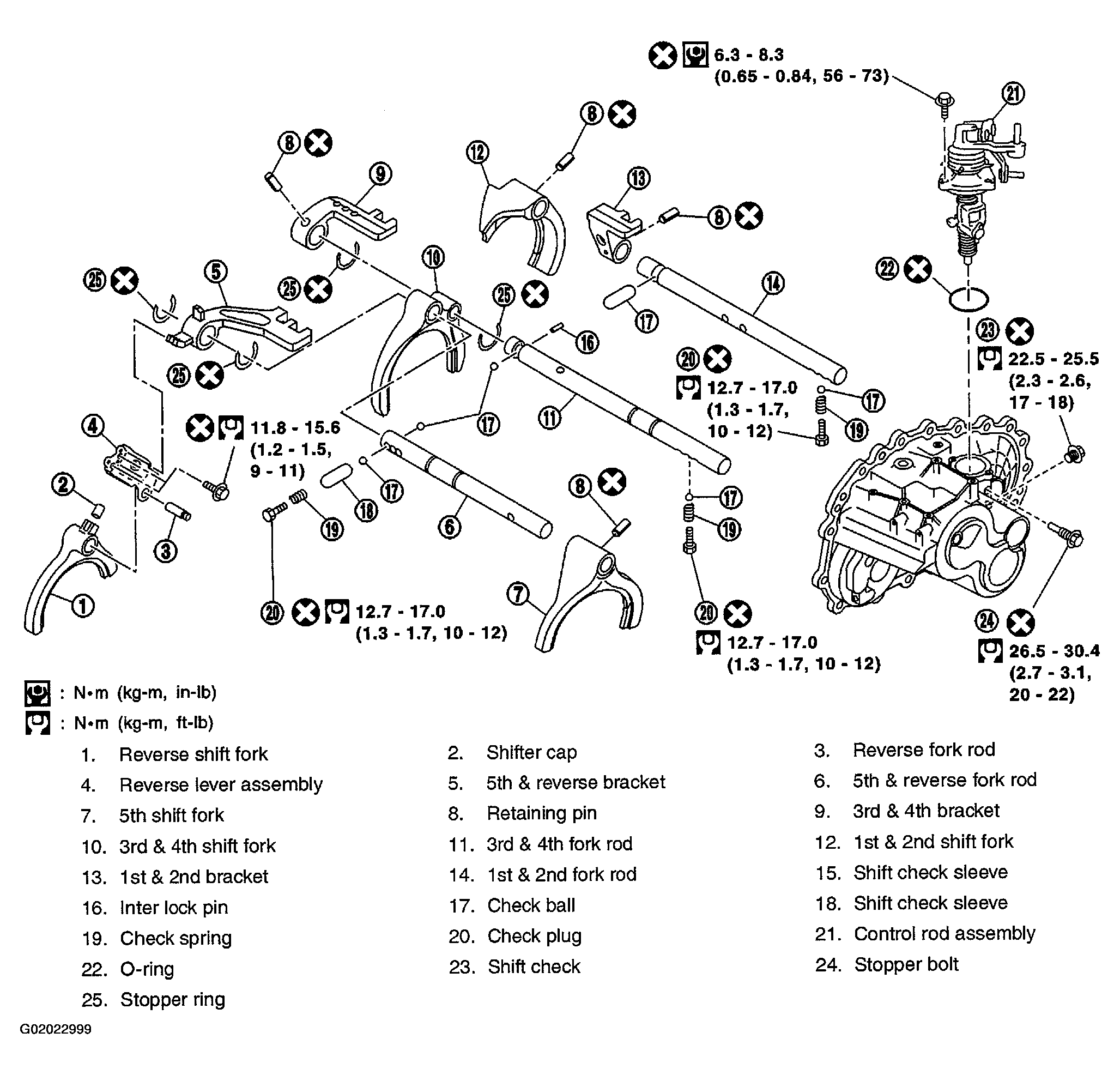

Fig 1: Identifying Transaxle RS5F51A Shift Control Components
G02022999Courtesy of NISSAN MOTOR CO., U.S.A.
