BCM (Body Control Module): Schematic: Notes

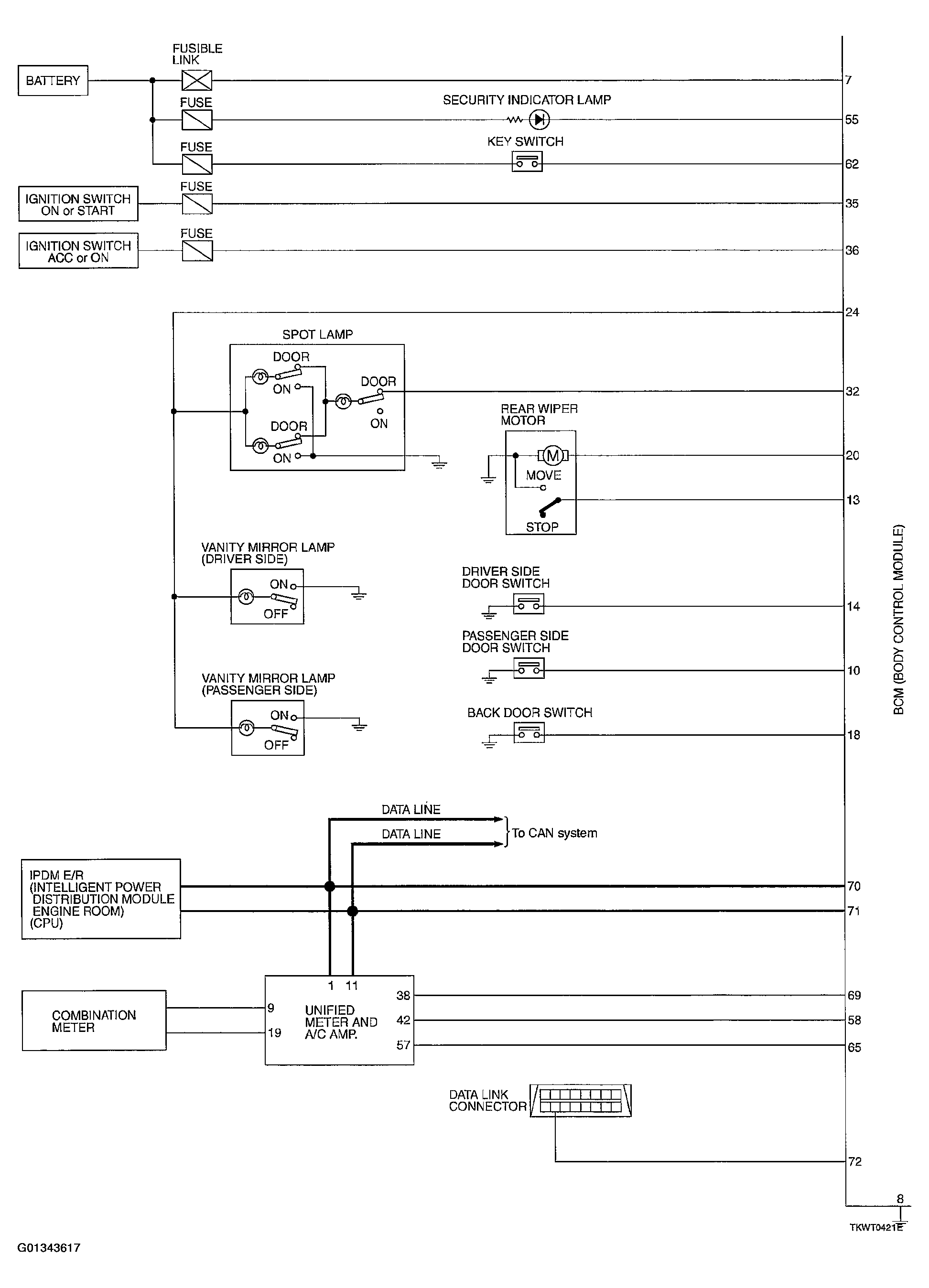

Fig 1: BCM Schematics (1 Of 2)
G01343617Courtesy of NISSAN MOTOR CO., U.S.A.
Fig 2: BCM Schematics (2 Of 2)
G01343618Courtesy of NISSAN MOTOR CO., U.S.A.
