Component Inspection

Fuel Tank Vacuum Relief Valve

For component inspection, see Fig 1.

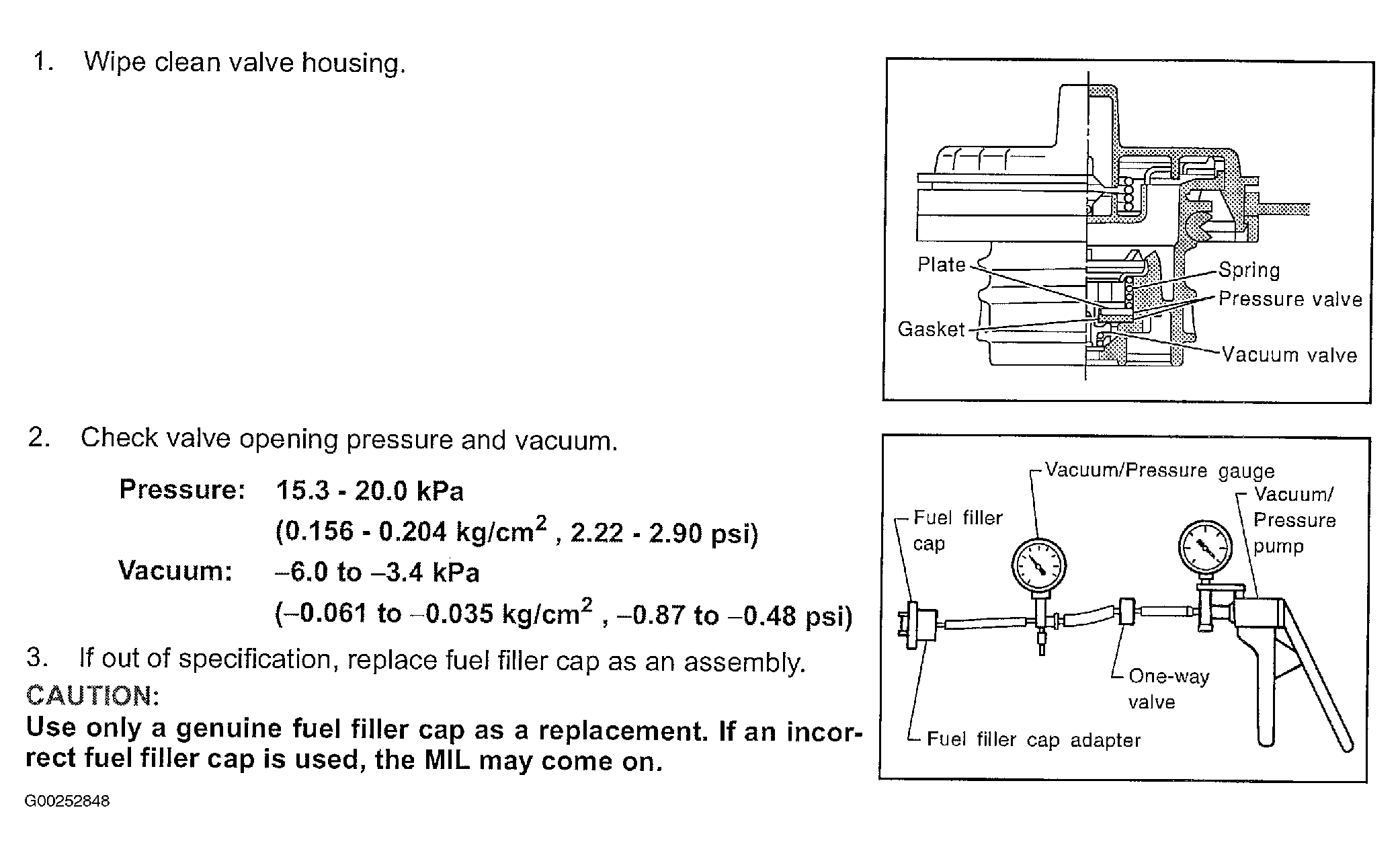

Fig 1: Inspecting Fuel Tank Vacuum Relief Valve
G00252848Courtesy of NISSAN MOTOR CO., U.S.A.
