Fail-Safe Modes

When the DTC listed in illustration is detected, the ECM enters the fail-safe mode and the MIL illuminates. See Fig 1.

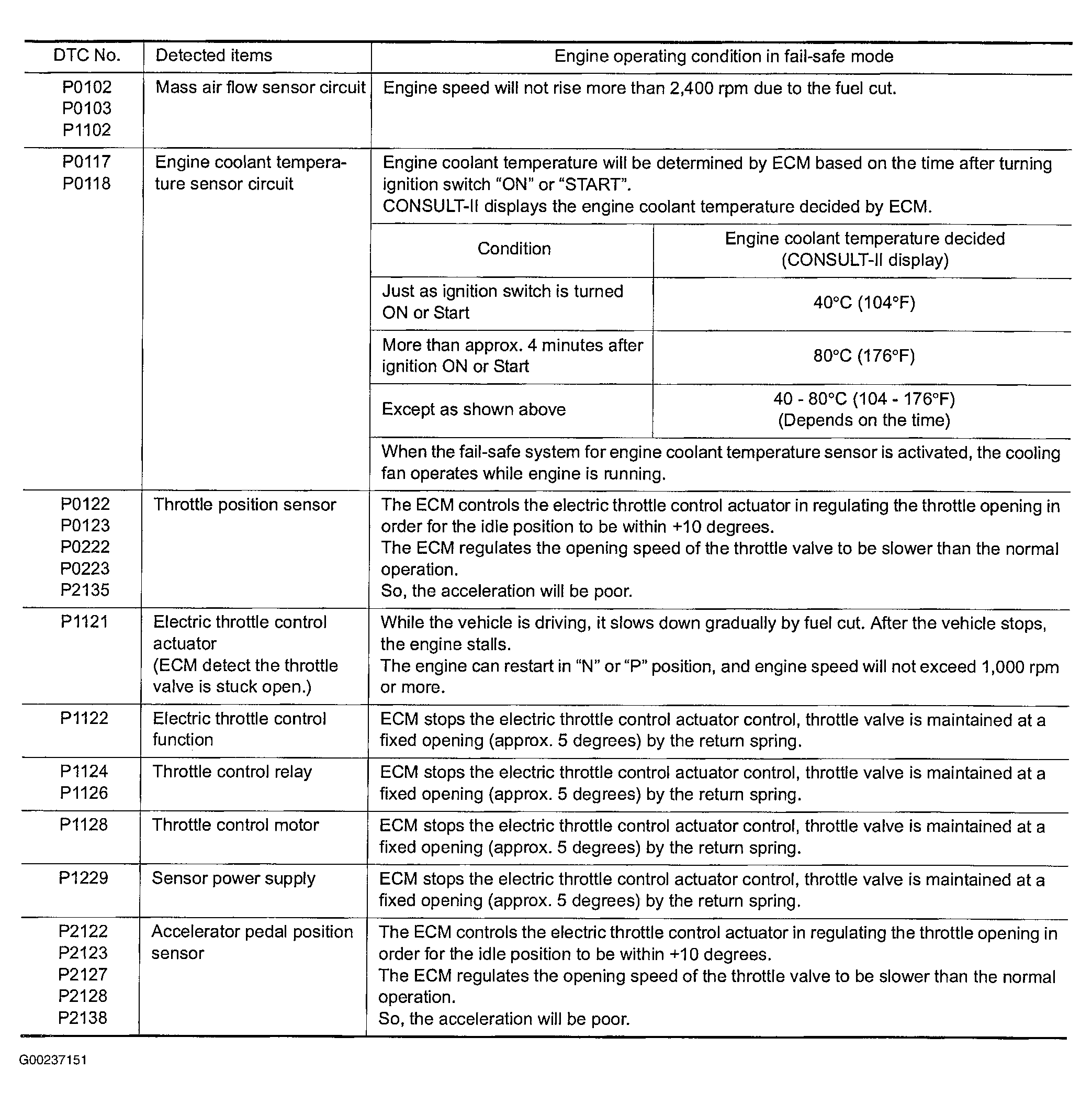

Fig 1: Identifying Fail-Safe Modes

Courtesy of NISSAN MOTOR CO., U.S.A.
