Consult-II Inspection Procedure: Notes

NOTE: For data monitor, see DATA MONITOR  , for active test, see ACTIVE TEST  and for work support, see WORK SUPPORT  .

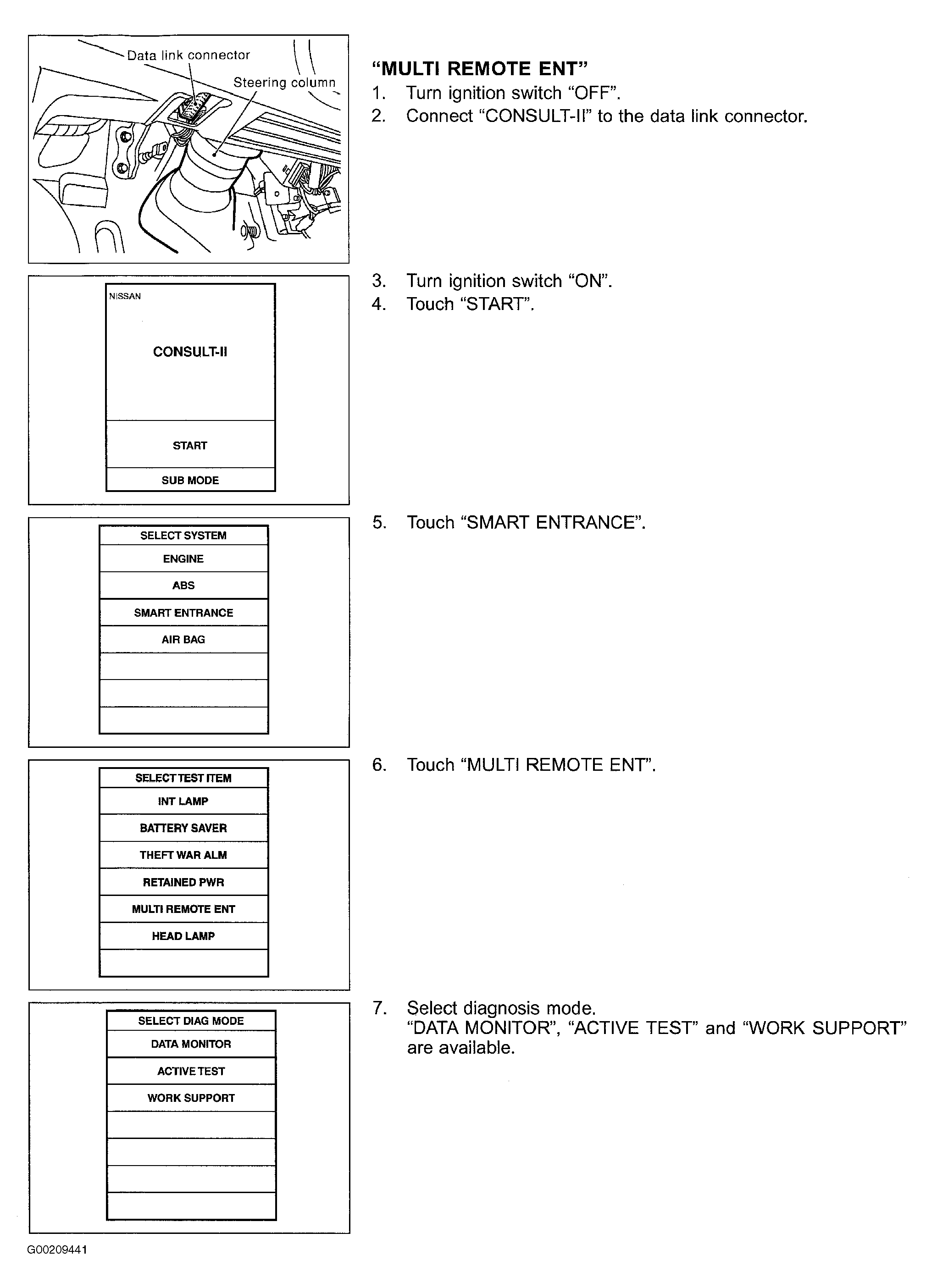

Fig 1: Identifying Consult-II Inspection Procedure
G00209441Courtesy of NISSAN MOTOR CO., U.S.A.
