ABS Wheel Sensor

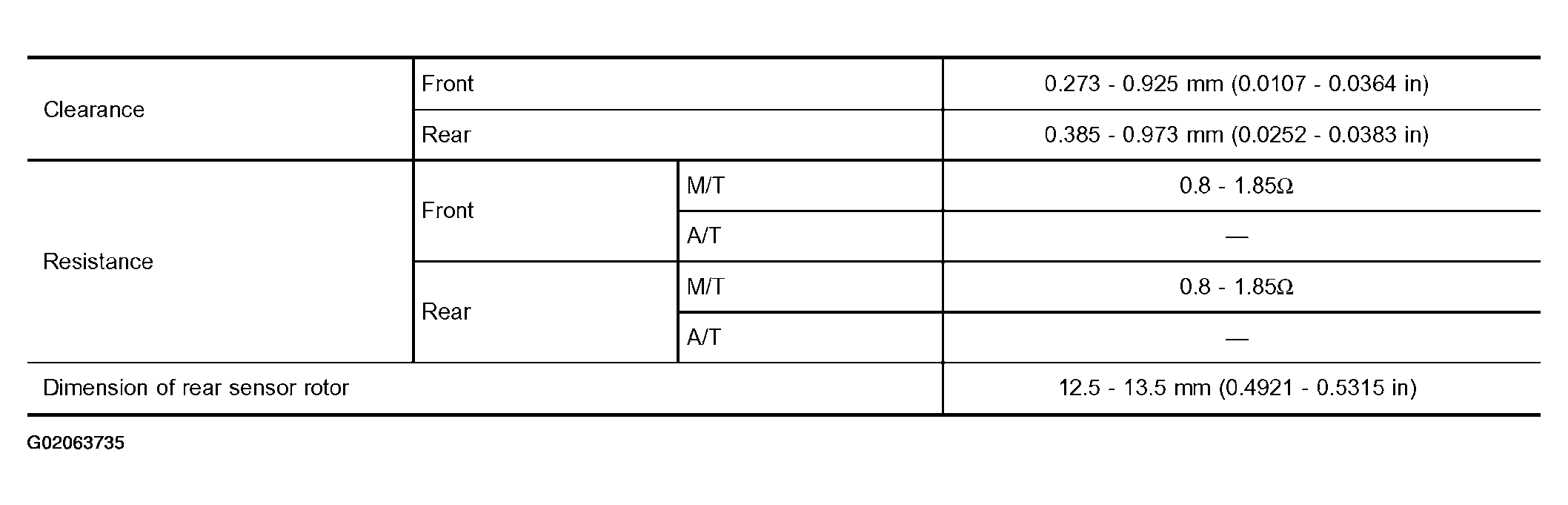

Fig 1: ABS Wheel Sensor Service Specification
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
