Fuse Check

WARNING: This page is about a different car, the 2003 Nissan Altima. However, it is still accessible from the selected car via links, so may be relevant.

FUSE INSPECTION
- Check the following BCM fuse and fusible link.

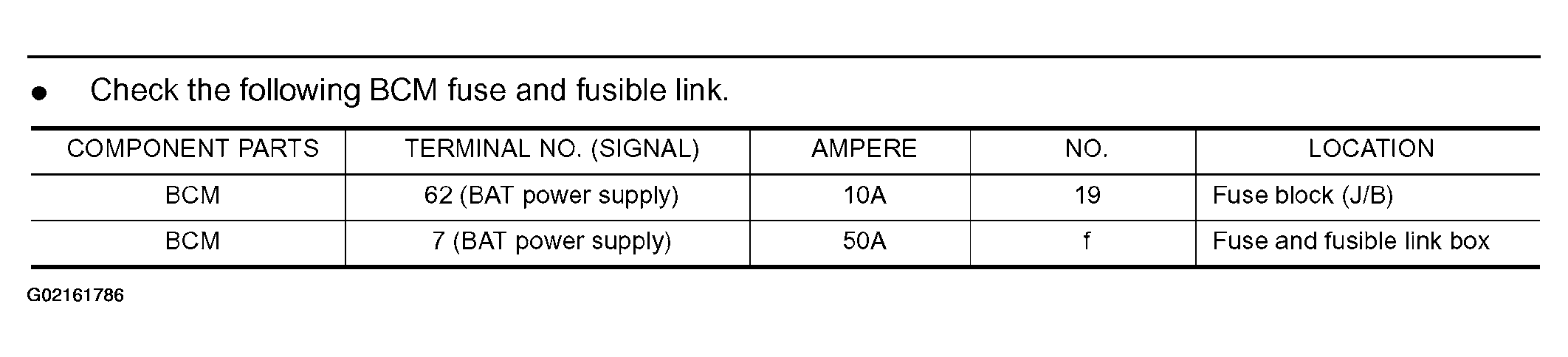

  Fig 1: Fuse Check Table
  Courtesy of NISSAN MOTOR CO., U.S.A.
NOTE: Refer to "COMPONENT PARTS AND HARNESS CONNECTOR LOCATION ".

OK or NG?
1. OK: Inspection End.
2. NG: If fuse is blown, be sure to eliminate cause of problem before installing new fuse, Refer to "POWER SUPPLY ROUTING CIRCUIT ".
