Cross-sectional View: Notes

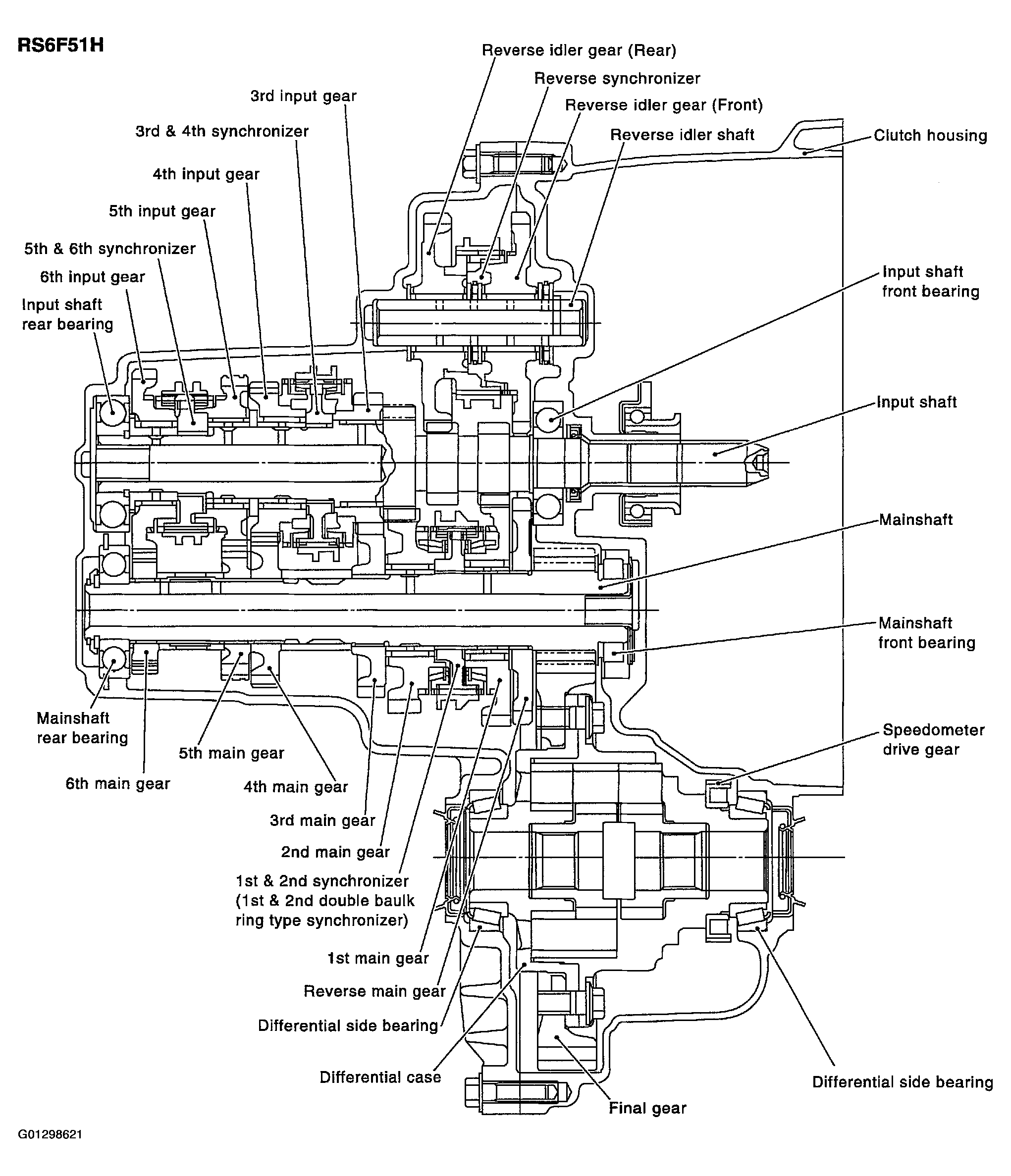

Fig 1: Cross-Sectional View Of Manual Transaxle
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
