Wheel Hub: Components

WARNING: This page is about a different car, the 2004 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.

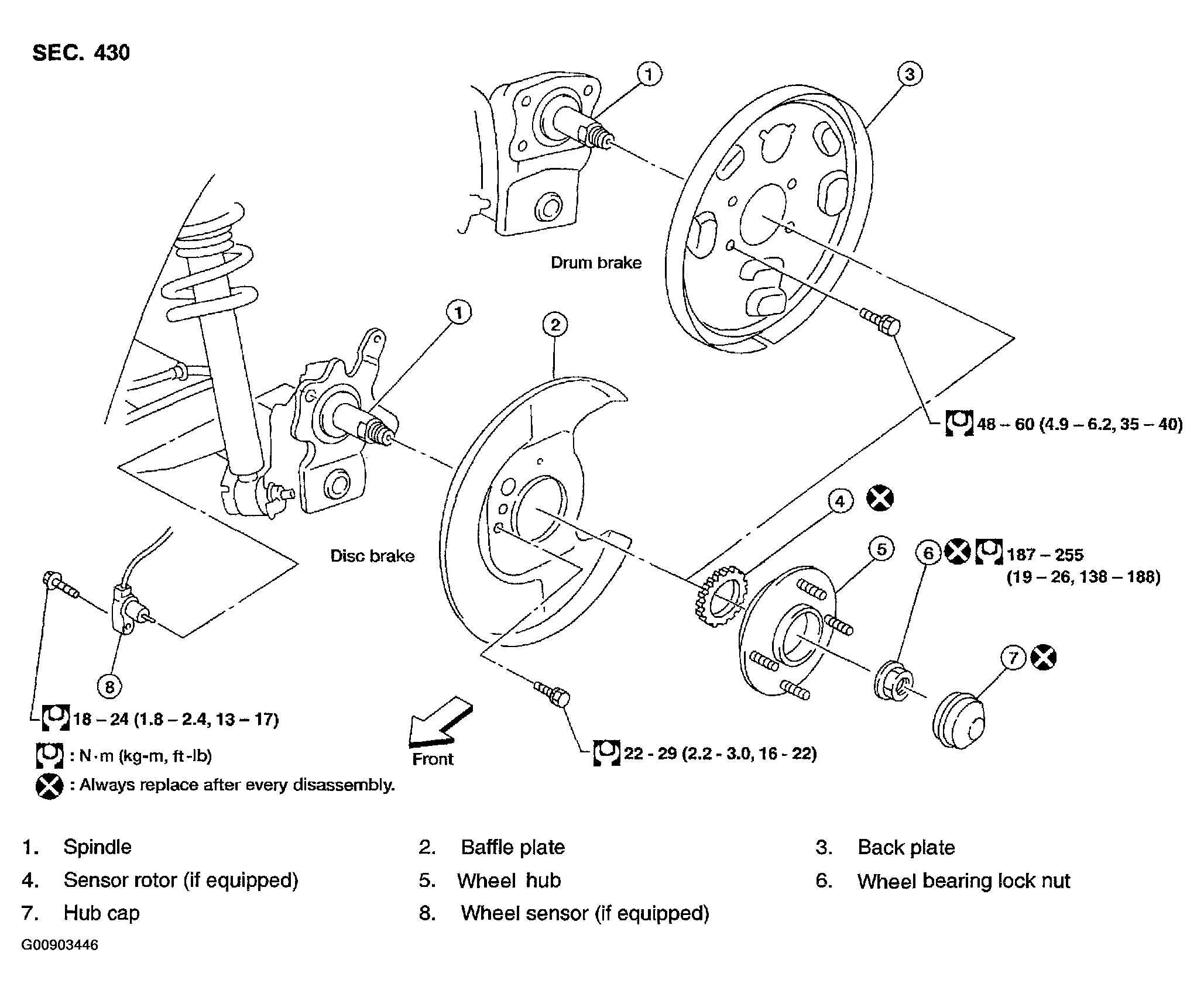

Fig 1: Wheel Hub Replacement Components With Torque Specifications
G00903446Courtesy of NISSAN MOTOR CO., U.S.A.
