Component Inspection

WARNING: This page is about a different car, the 2005 Nissan Frontier. However, it is still accessible from the selected car via links, so may be relevant.

Turn ignition switch "OFF". (Stay for at least 5 seconds.)
Remove transfer shut off relay 1 and transfer shut off relay 2. Refer to "LOCATION OF ELECTRICAL PARTS ".
Apply 12V direct current between transfer shut off relay terminals 1 and 2.

Check continuity between relay terminals 3 and 5.

TRANSFER SHUT OFF RELAY TERMINAL CONNECTOR VOLTAGE

Condition	Continuity
12V direct current supply between terminals 1 and 2	Yes
OFF	No

If NG, replace the transfer shut off relay 1 or 2. Refer to "LOCATION OF ELECTRICAL PARTS ".

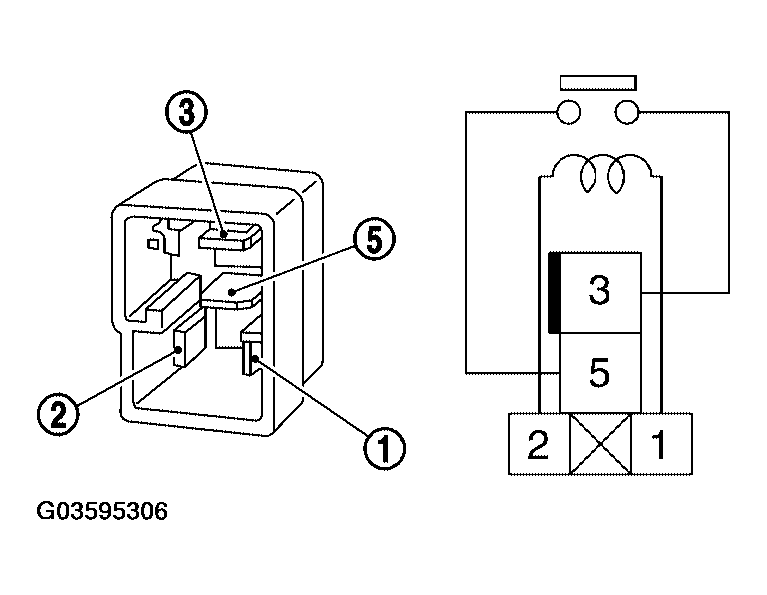

Fig 1: Checking Continuity Between Relay Terminals 3 And 5
Courtesy of NISSAN MOTOR CO., U.S.A.
