Snap Ring

WARNING: This page is about a different car, the 2004 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.

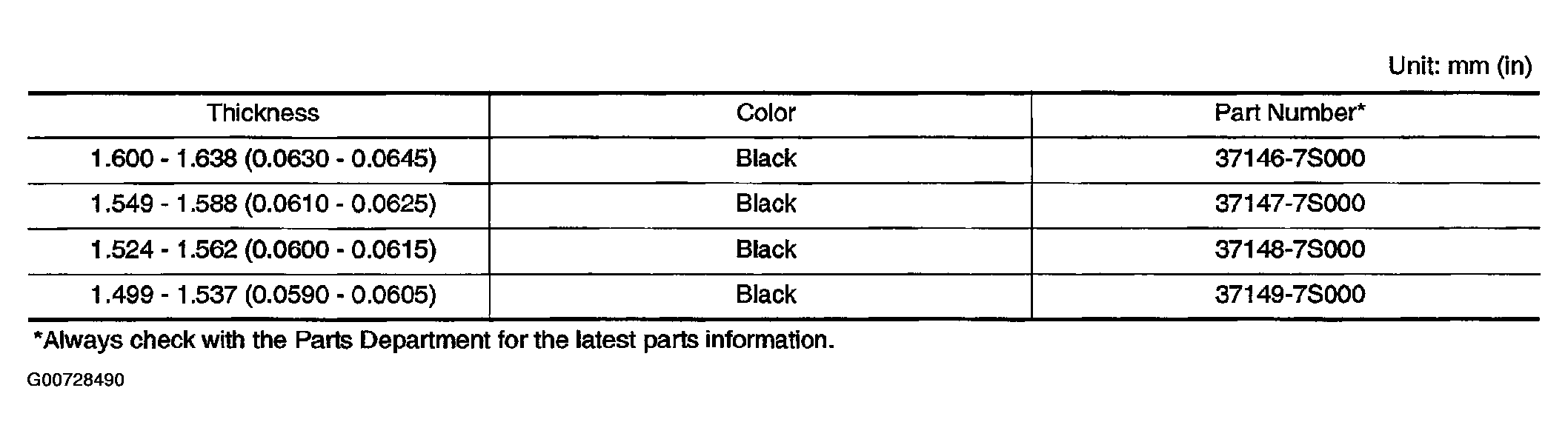

Fig 1: Model 2F1310

Courtesy of NISSAN MOTOR CO., U.S.A.

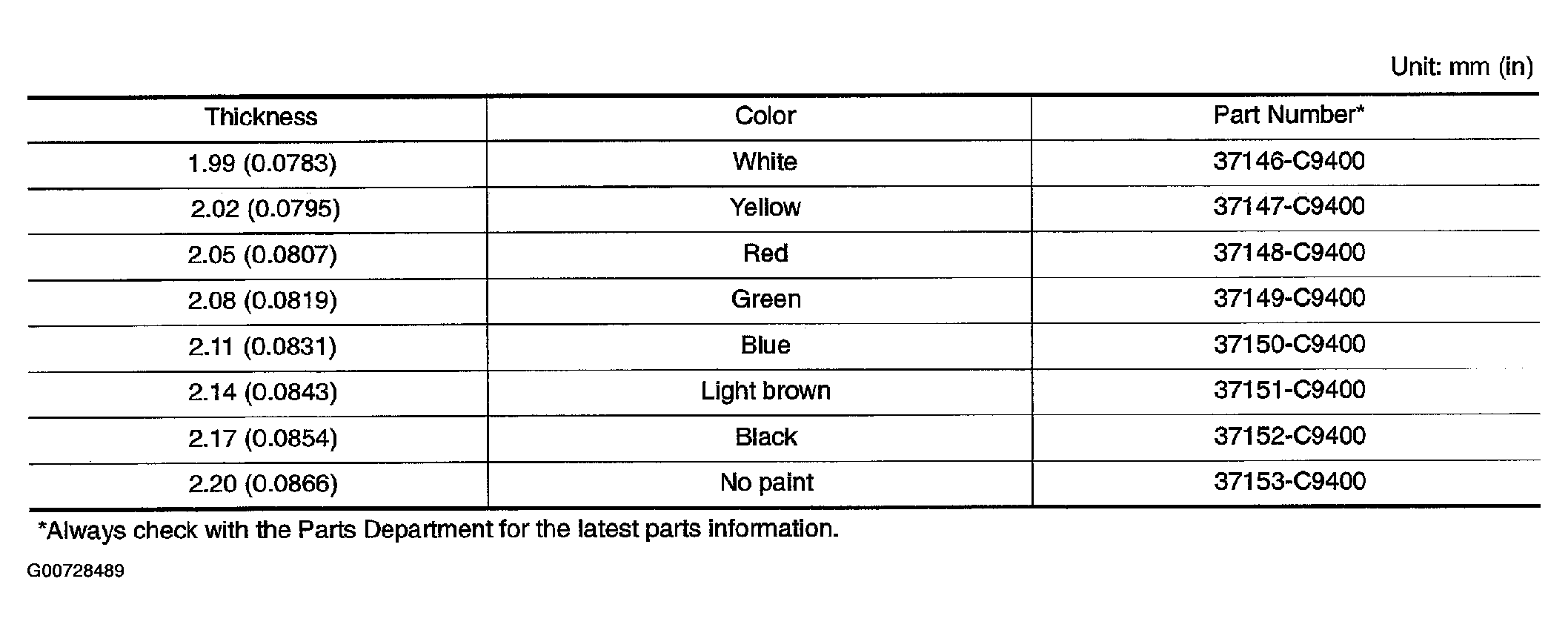

Fig 2: Model 2S1350 / 3S1350

Courtesy of NISSAN MOTOR CO., U.S.A.
