Removal and Installation
WARNING:
This page is about a different car, the 2004 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.

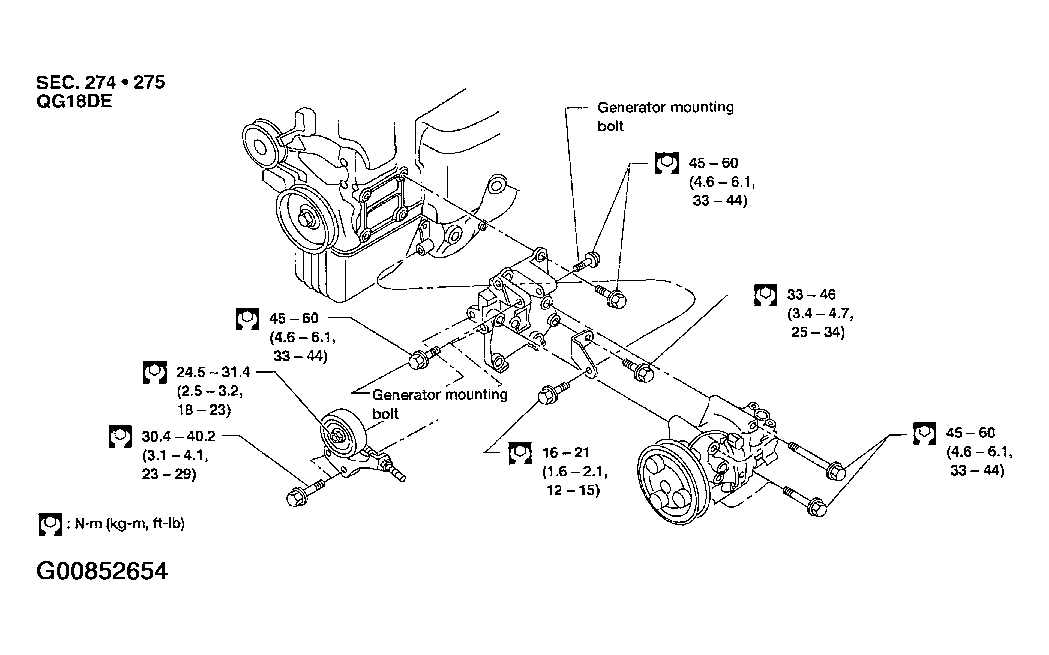

Fig 1: Removing Compressor QG18DE
Courtesy of NISSAN MOTOR CO., U.S.A.
Fig 2: Removing Compressor QR25DE
Courtesy of NISSAN MOTOR CO., U.S.A.
