Relation between Illustrations and Descriptions
WARNING: This page is about a different car, the 2006 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.
The following sample explains the relationship between the part description in an illustration, the part name in the text and the service procedures.

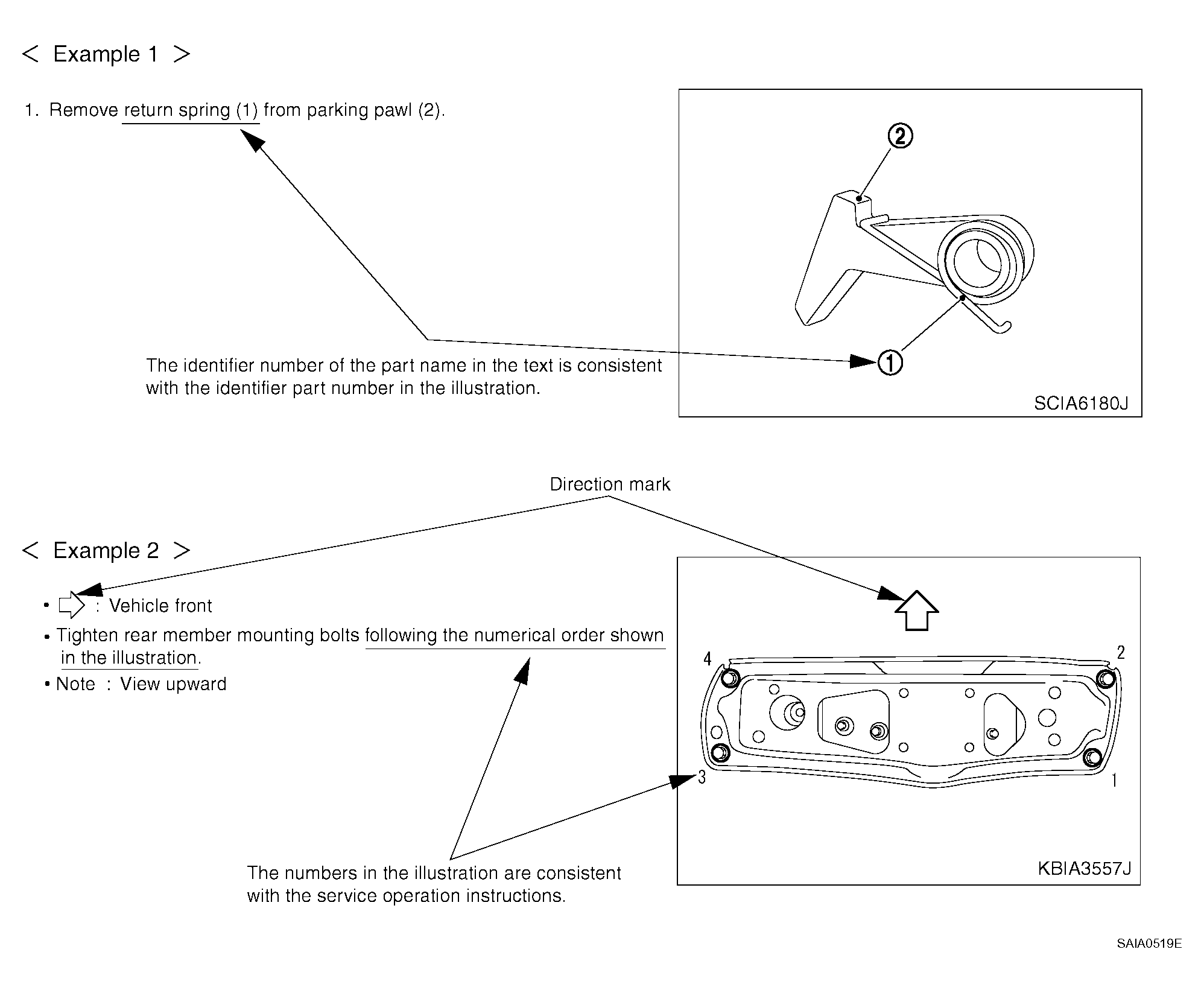

Fig 1: Identifying Relation Between Illustrations And Descriptions
