Revolution Sensor Replacement
WARNING: This page is about a different car, the 2002 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.

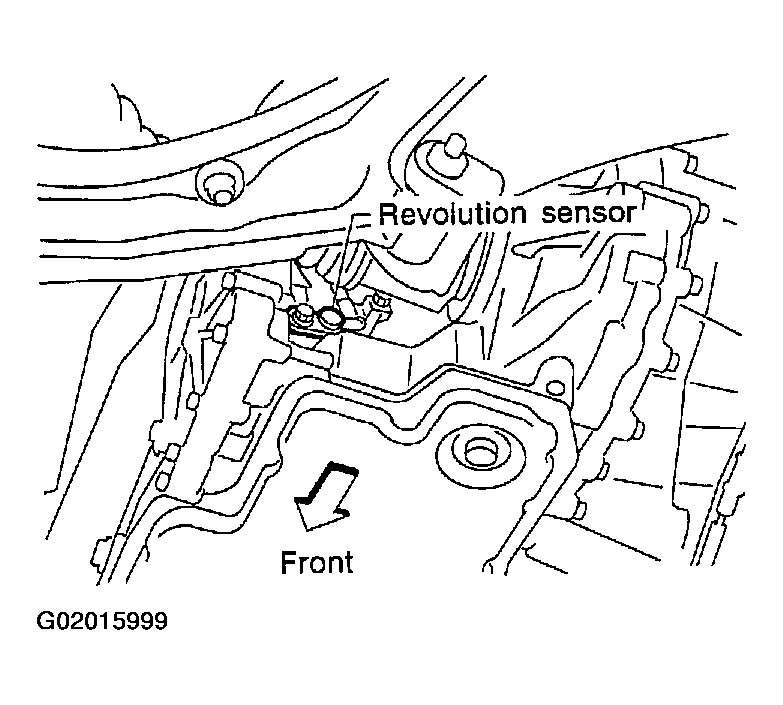

- Disconnect revolution sensor harness connector.
Courtesy of NISSAN MOTOR CO., U.S.A.
- Remove harness bracket from A/T.
- Remove revolution sensor from A/T.
- Reinstall any part removed.
Always use new sealing parts
.
