Double-Cone Synchronizer

Double-cone synchronizer is adopted for 1st and 2nd gears to reduce operating force of the shift lever.

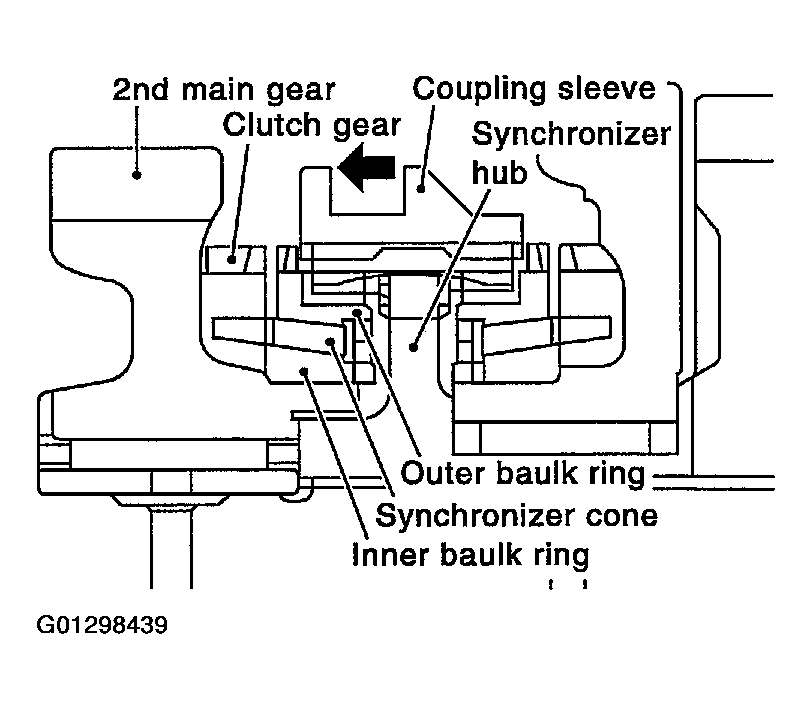

Fig 1: Identifying Synchronizer Cone, 2nd Main Gear And Synchronizer Hub

Courtesy of NISSAN MOTOR CO., U.S.A.
