Inspection Procedure

CAUTION: If CONSULT-II is used with no connection of CONSULT-II CONVERTER, malfunctions might be detected in self-diagnosis depending on control unit which carry out CAN communication.

Turn ignition switch OFF.
Connect "CONSULT-II" and "CONSULT-II CONVERTER" to data link connector, which is located under LH dash panel near the hood opener handle.
Turn ignition switch ON.

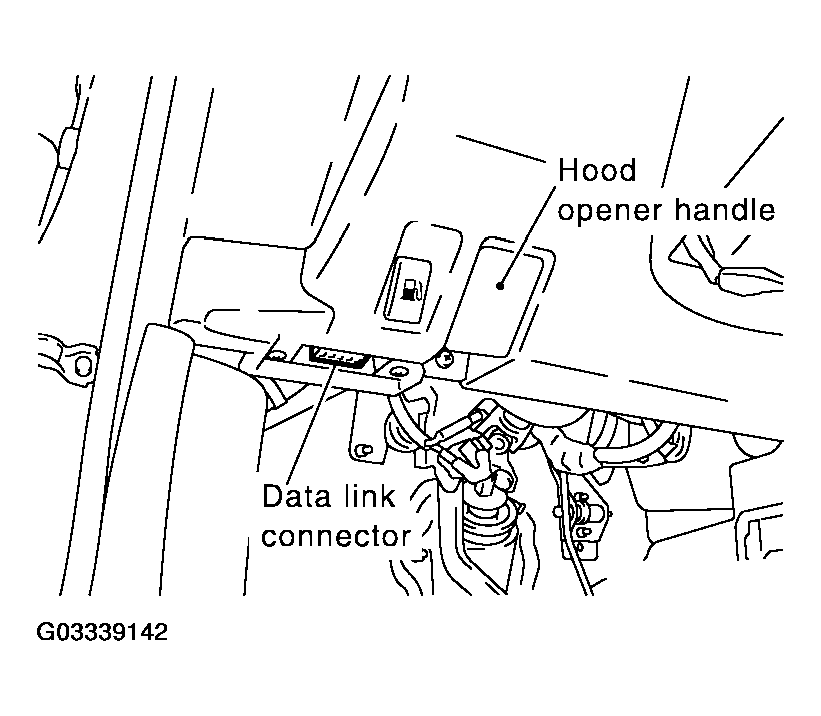

Fig 1: Identifying Data Link Connector
Courtesy of NISSAN MOTOR CO., U.S.A.
Touch "START (NISSAN BASED VHCL)".

Fig 2: Touching START (NISSAN BASED VHCL) On Screen
Courtesy of NISSAN MOTOR CO., U.S.A.
Touch "ENGINE".
If "ENGINE" is not indicated, go to CONSULT-II DATA LINK CONNECTOR (DLC) CIRCUIT .

Fig 3: Touching ENGINE On Screen
Courtesy of NISSAN MOTOR CO., U.S.A.
Perform each diagnostic test mode according to each service procedure.
For further information, see the CONSULT-II Operation Manual .

Fig 4: Displaying Diagnostic Test Mode On Screen
Courtesy of NISSAN MOTOR CO., U.S.A.
