Data Monitor Procedure

  1. Turn ignition switch OFF.
  2. Connect CONSULT-II to data link connector.

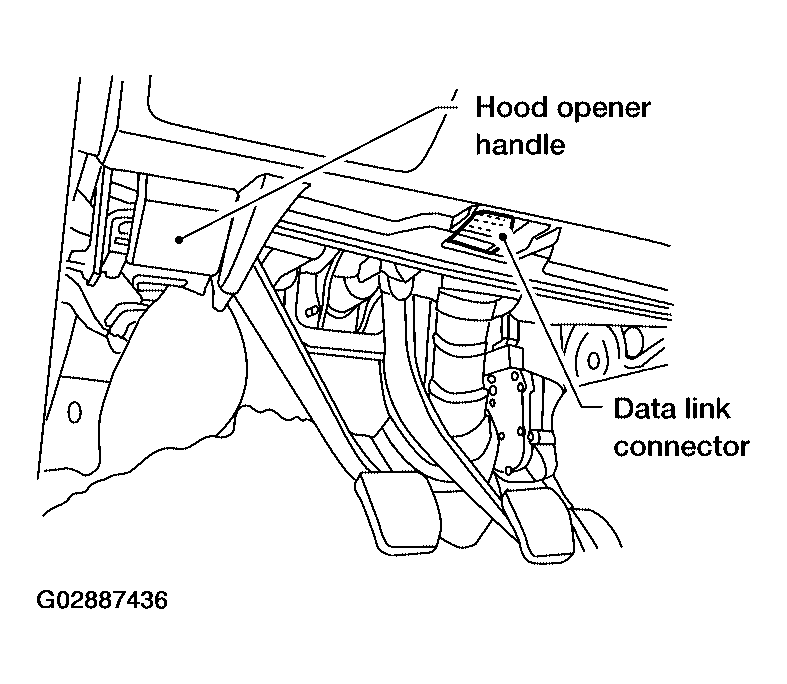

    Fig 1: Identifying Data Link Connector
    G02887436Courtesy of NISSAN MOTOR CO., U.S.A.
  3. Turn ignition switch ON.
  4. Touch "START (NISSAN BASED VHCL)" on CONSULT-II screen.
    Fig 2: Scan Tool Display "Consult II"
    G02887437Courtesy of NISSAN MOTOR CO., U.S.A.
  5. Touch "ABS".
    Fig 3: Scan Tool Display "Diagnosis System Selection"
    G02887438Courtesy of NISSAN MOTOR CO., U.S.A.
  6. Touch "DATA MONITOR".
    Fig 4: Scan Tool Display "Select Diag Mode"
    G02887439Courtesy of NISSAN MOTOR CO., U.S.A.
  7. Touch "SETTING" on "SELECT MONITOR ITEM" screen.
  8. Touch "LONG TIME" on "SET RECORDING COND" screen.
  9. Touch "START" on "SELECT MONITOR ITEM".
