General Specifications: Transaxle

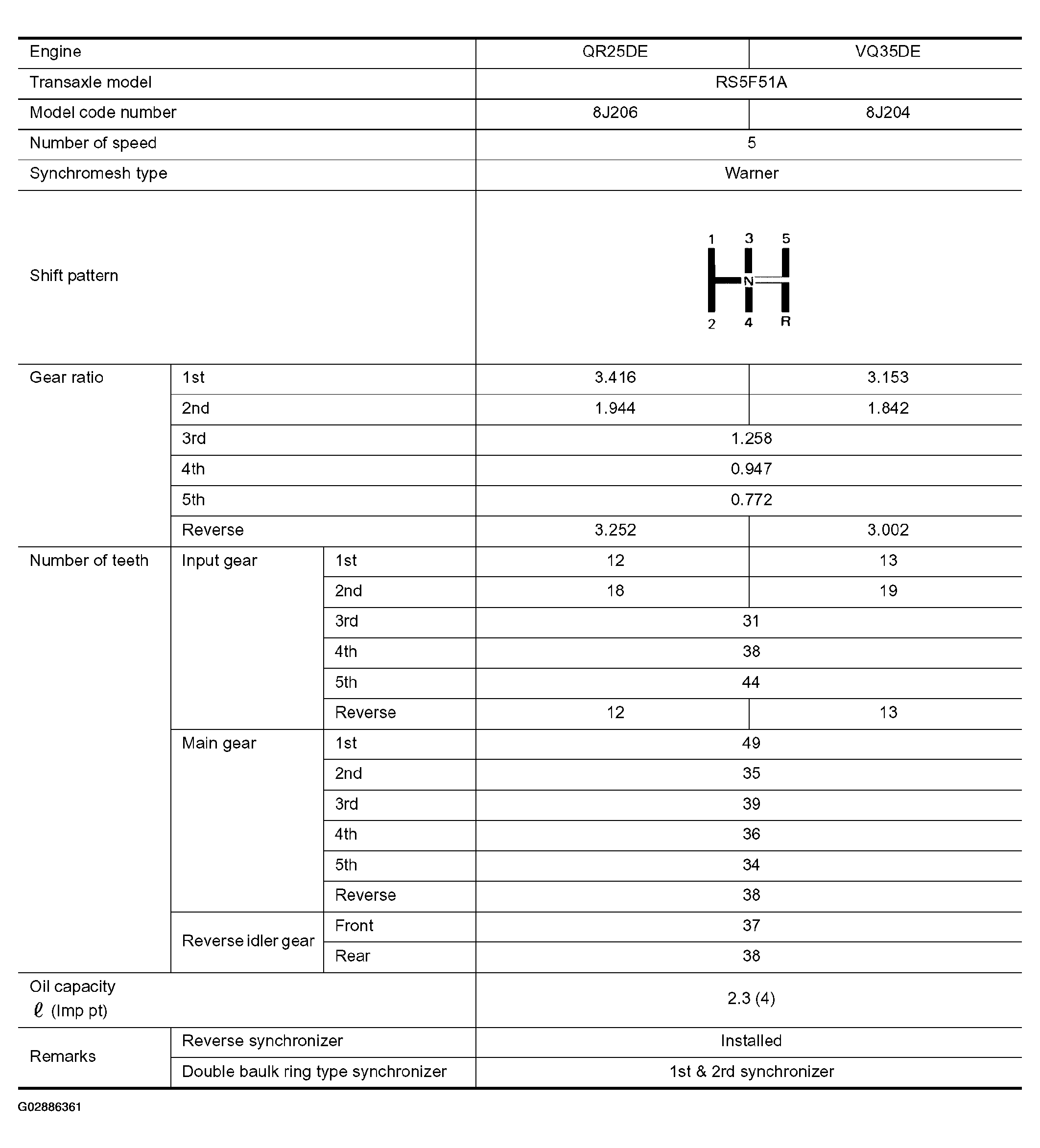

Fig 1: General Transaxle Specifications
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
