Removal and Installation: Notes

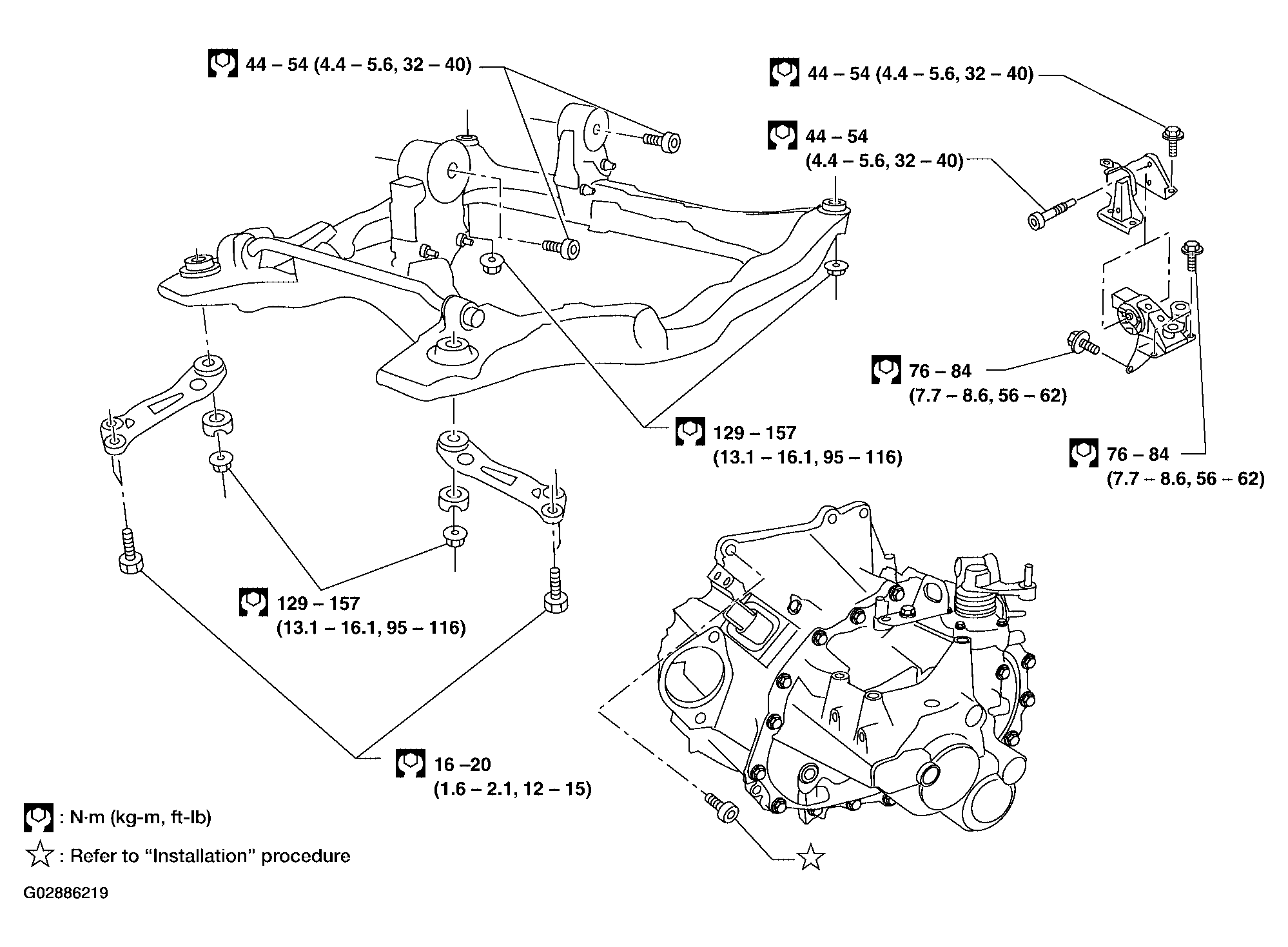

Fig 1: Removing Transaxle Assembly
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
