Torque Converter Clutch Control Valve Operation

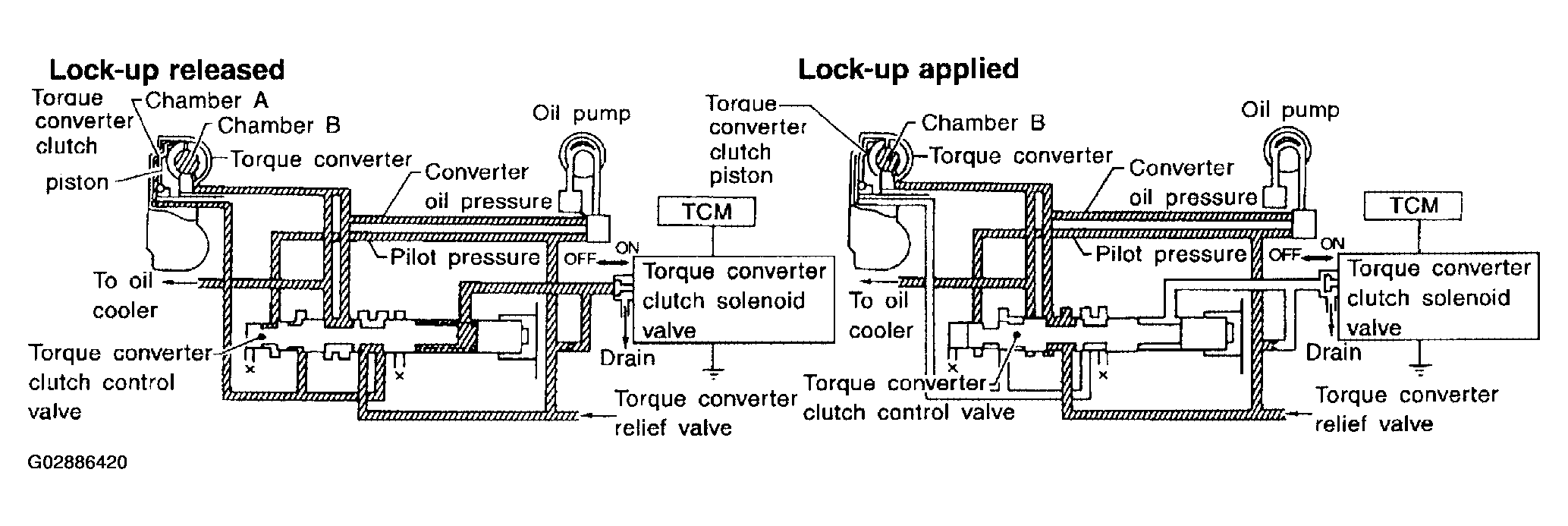

Fig 1: Torque Converter Clutch Control Valve Operation
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
