Power Window System: Schematic

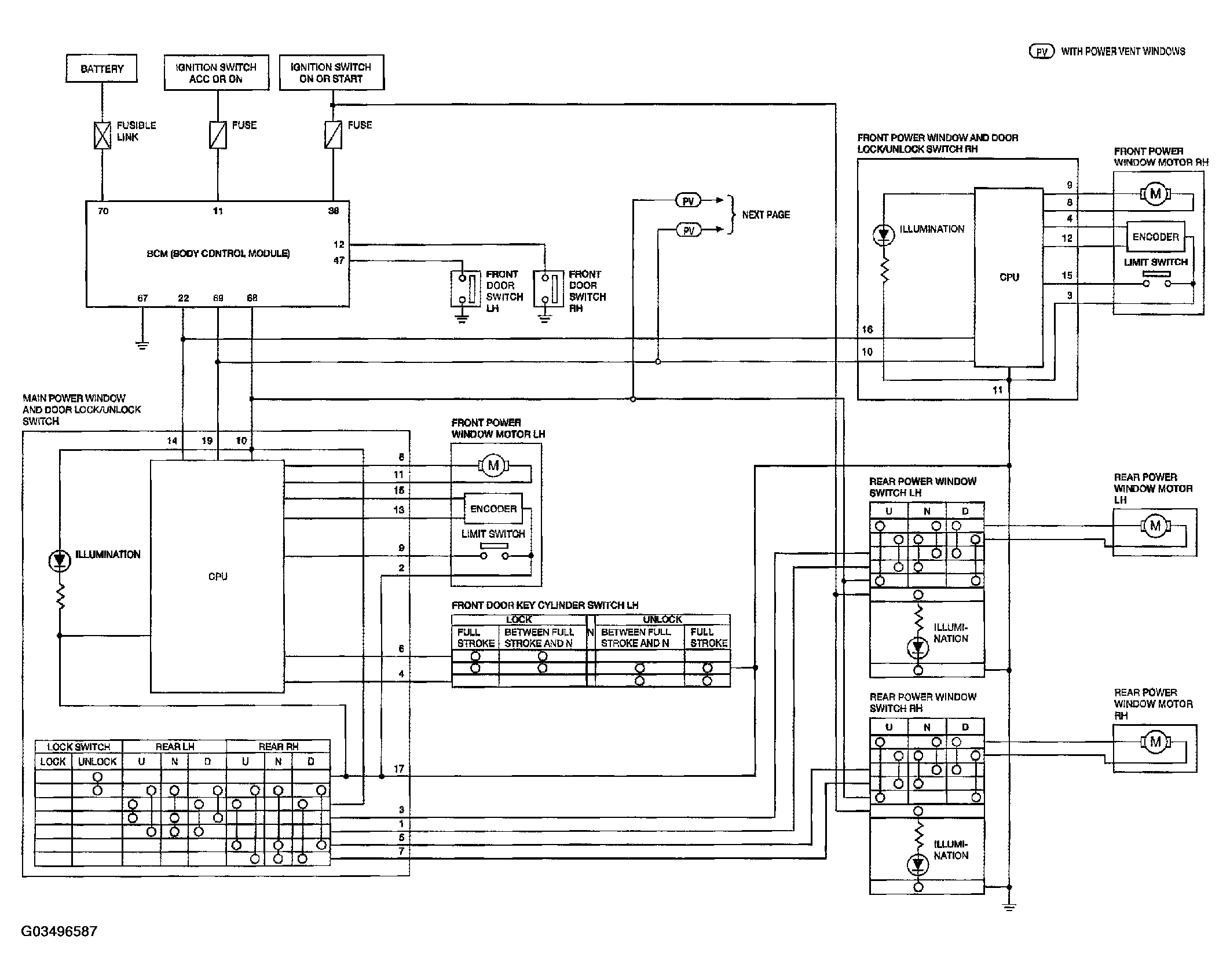

Fig 1: Identifying Schematic
G03496587Courtesy of NISSAN MOTOR CO., U.S.A.

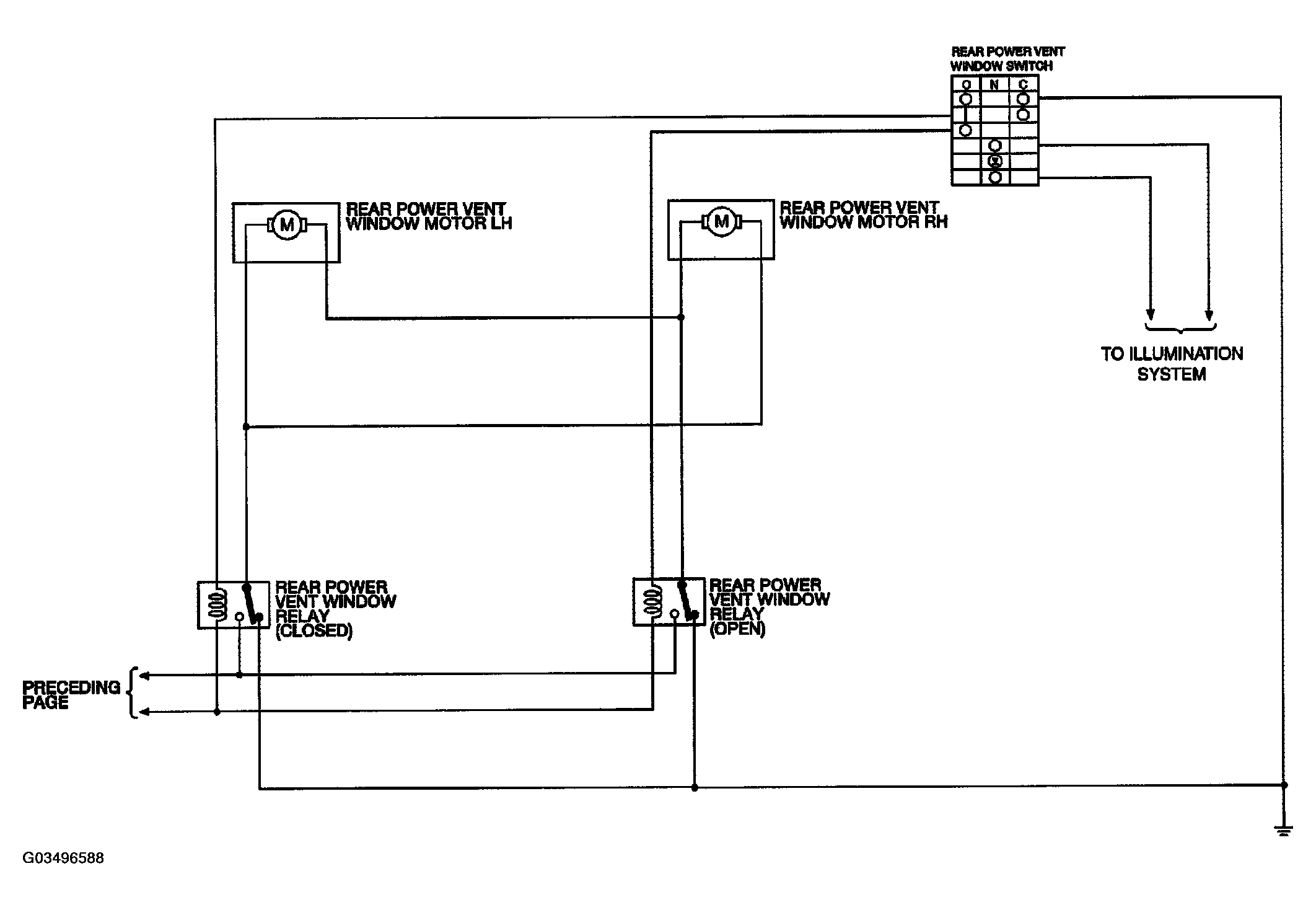

Fig 2: Identifying Schematic
G03496588Courtesy of NISSAN MOTOR CO., U.S.A.
