Terminal And Reference Value For BCM

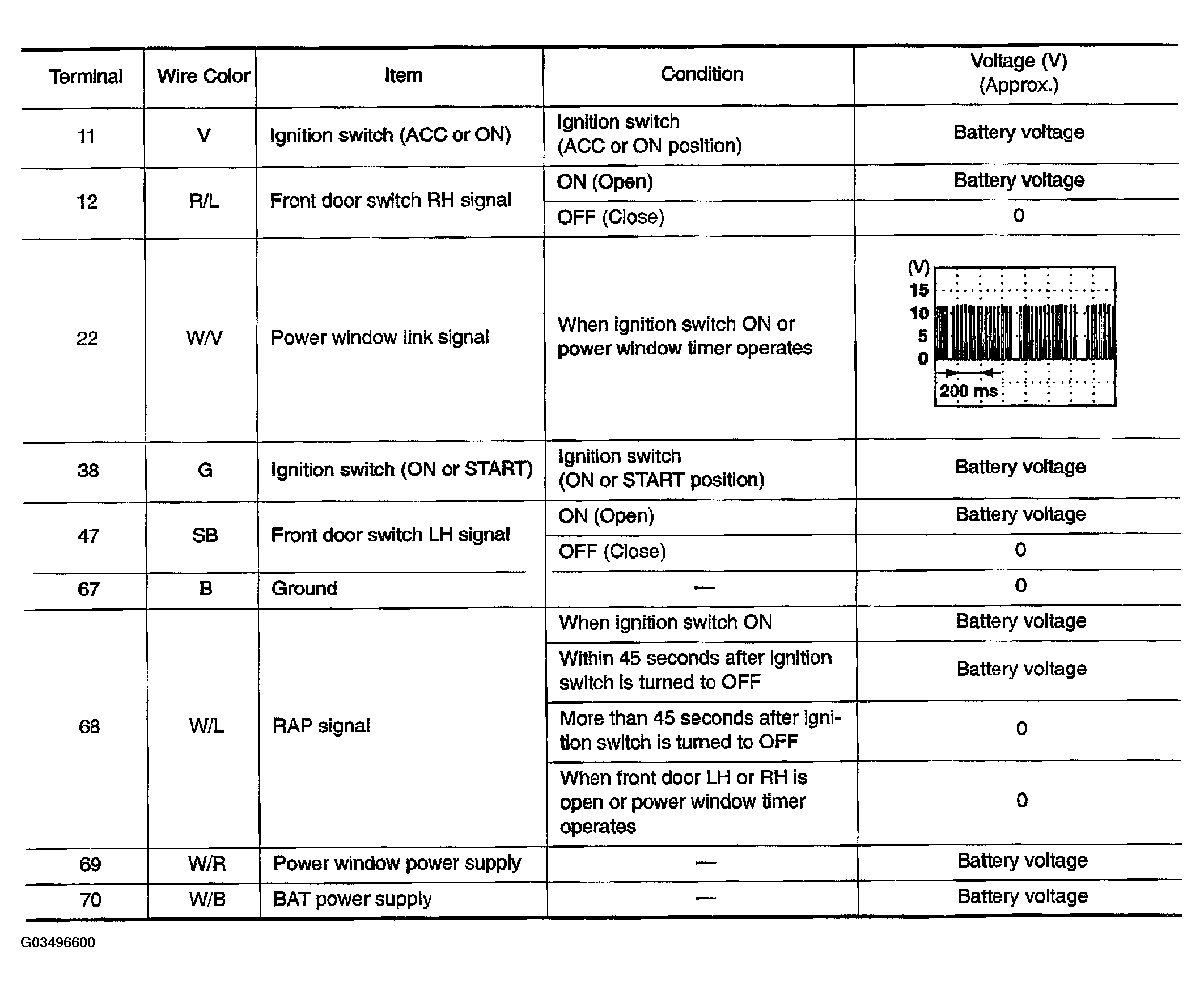

Fig 1: Terminal And Reference Value For BCM
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
