Terminal And Reference Value For Main Power Window And Door Lock/Unlock Switch

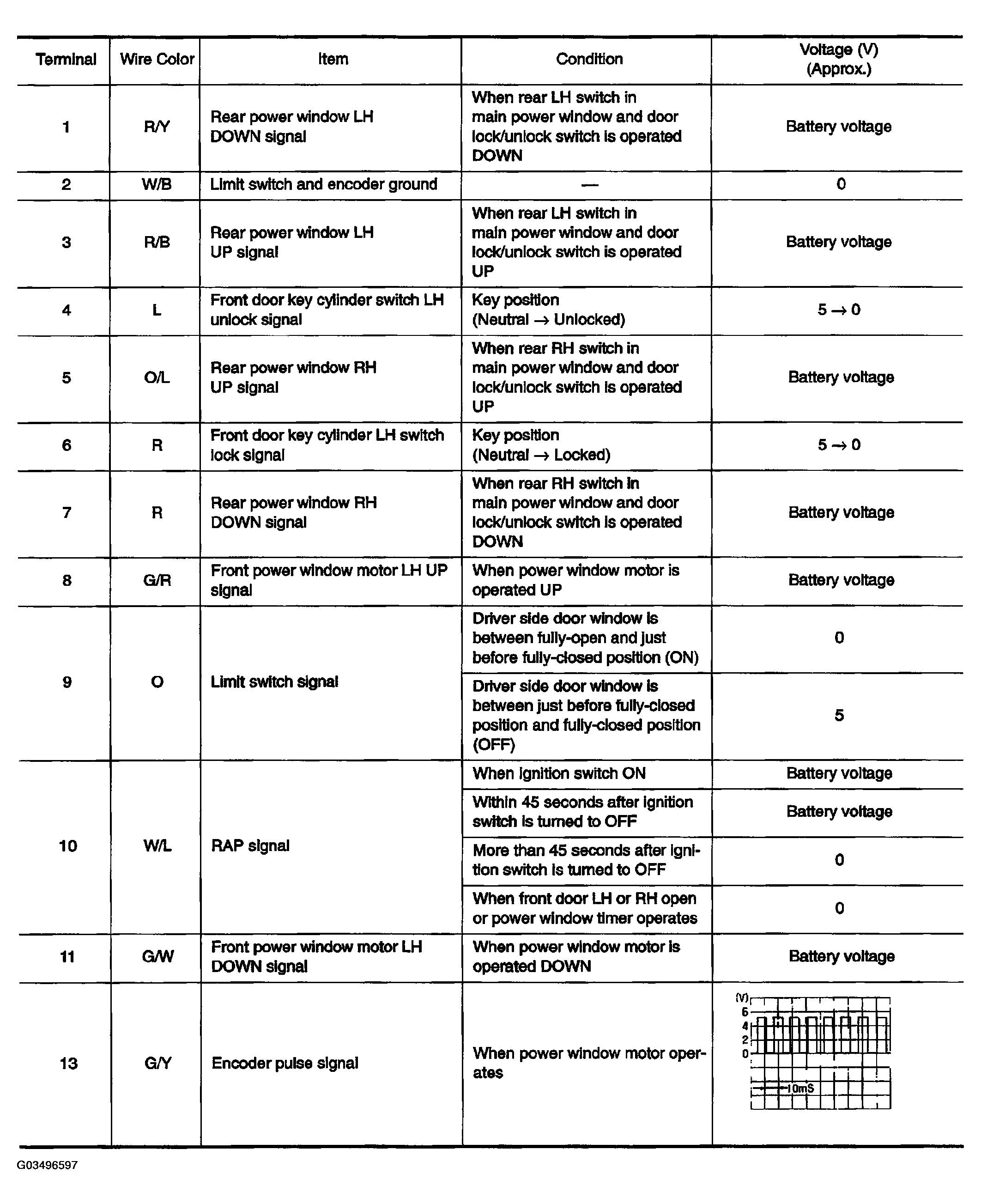

Fig 1: Terminal And Reference Value For Main Power Window And Door Lock/Unlock Switch Chart (1 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.

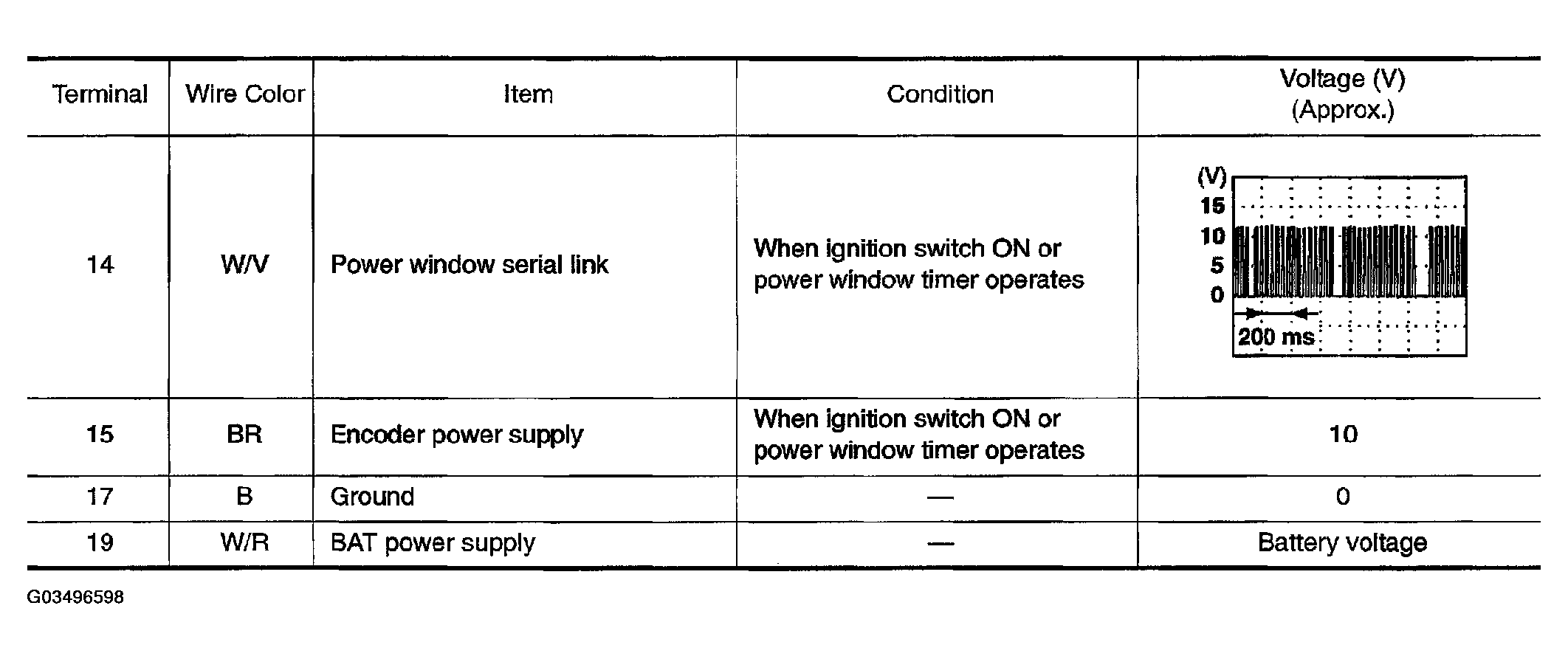

Fig 2: Terminal And Reference Value For Main Power Window And Door Lock/Unlock Switch Chart (2 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.
