Removal and Installation: Removal

  1. Move the accelerator and brake pedals to the front-most position.
  2. Turn the ignition switch OFF and disconnect the negative battery terminal.
  3. Disconnect the adjustable brake pedal cable from the adjustable brake pedal.
    • Unlock, then pull the adjustable brake pedal cable to disconnect it from the adjustable brake pedal.
  4. Disconnect the adjustable pedal electric motor electrical connector.

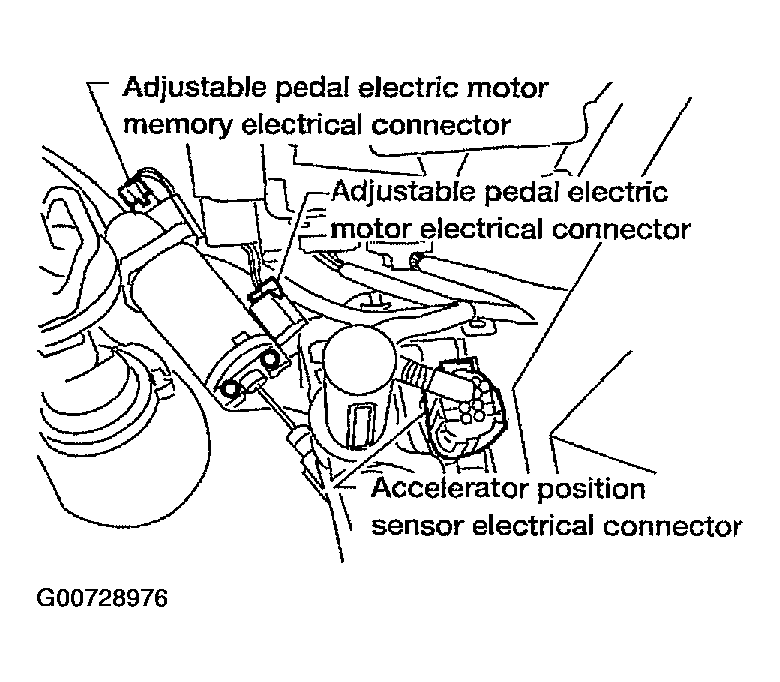

    Fig 1: Locating Adjustable Accelerator Pedal Electrical Connectors
    G00728976Courtesy of NISSAN MOTOR CO., U.S.A.
  5. Disconnect the adjustable pedal electric motor memory electrical connector, if equipped.
  6. Disconnect the accelerator position sensor electrical connector.
  7. Remove the two upper and one lower accelerator pedal nuts.
  8. Remove the adjustable accelerator pedal assembly.
    CAUTION:
    • Do not disassemble the accelerator pedal assembly.
    • Do not remove the accelerator pedal position sensor from the accelerator pedal bracket.
    • Do not disassemble the accelerator pedal adjusting mechanism.
    • Avoid damage from dropping the accelerator pedal assembly during handling.
    • Keep the accelerator pedal assembly away from water.
