ASCD Steering Switch

Disconnect combination switch (spiral cable).
Check continuity between ASCD steering switch terminals 14 and 15 with pushing each switch.

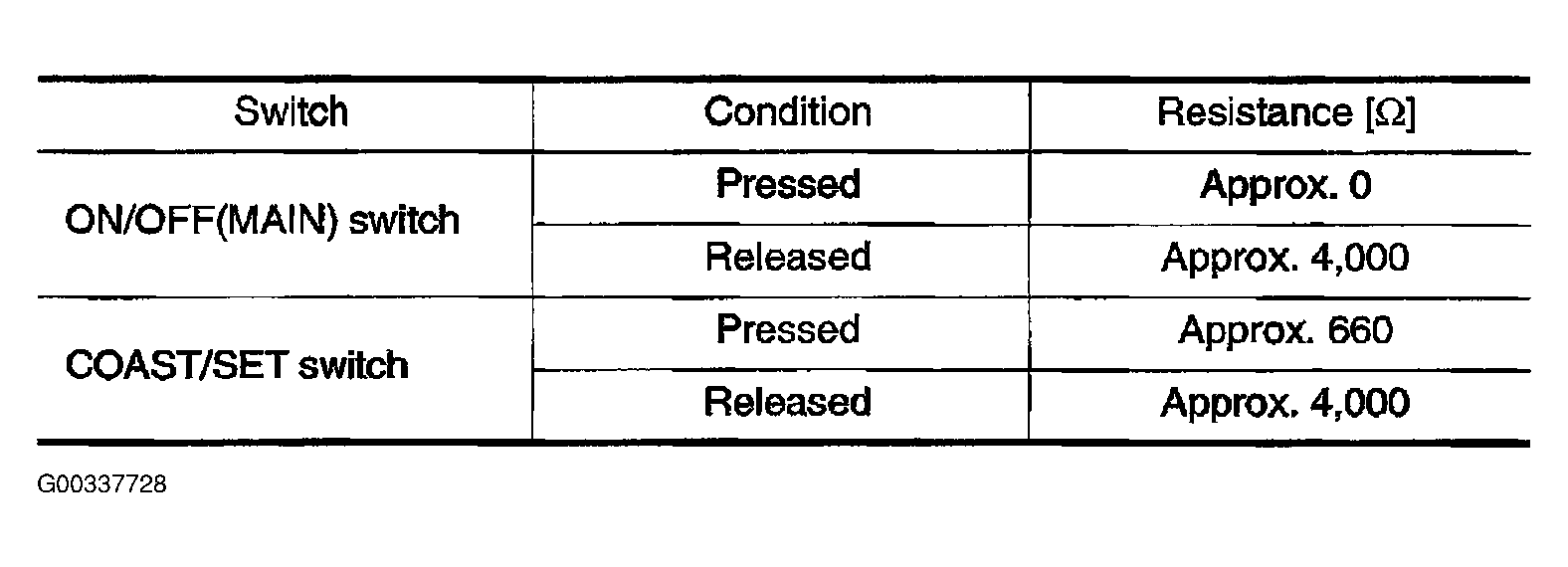

Fig 1: Checking ASCD Steering Switch (1 Of 3)

Courtesy of NISSAN MOTOR CO., U.S.A.

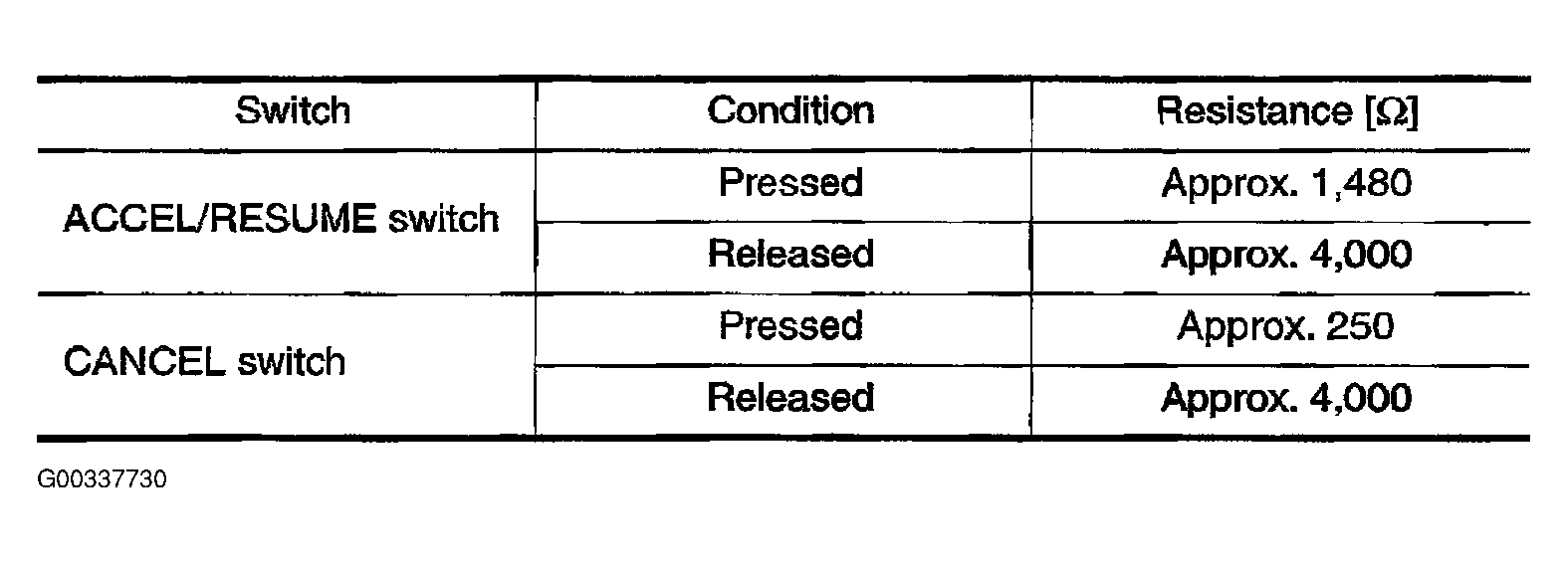

Fig 2: Checking ASCD Steering Switch (2 Of 3)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 3: Checking ASCD Steering Switch (3 Of 3)

Courtesy of NISSAN MOTOR CO., U.S.A.
