Stop Lamp Switch

Turn ignition switch OFF.
Disconnect stop lamp switch harness connector.
Check harness continuity between stop lamp switch terminals 1 and 2 under the following conditions.

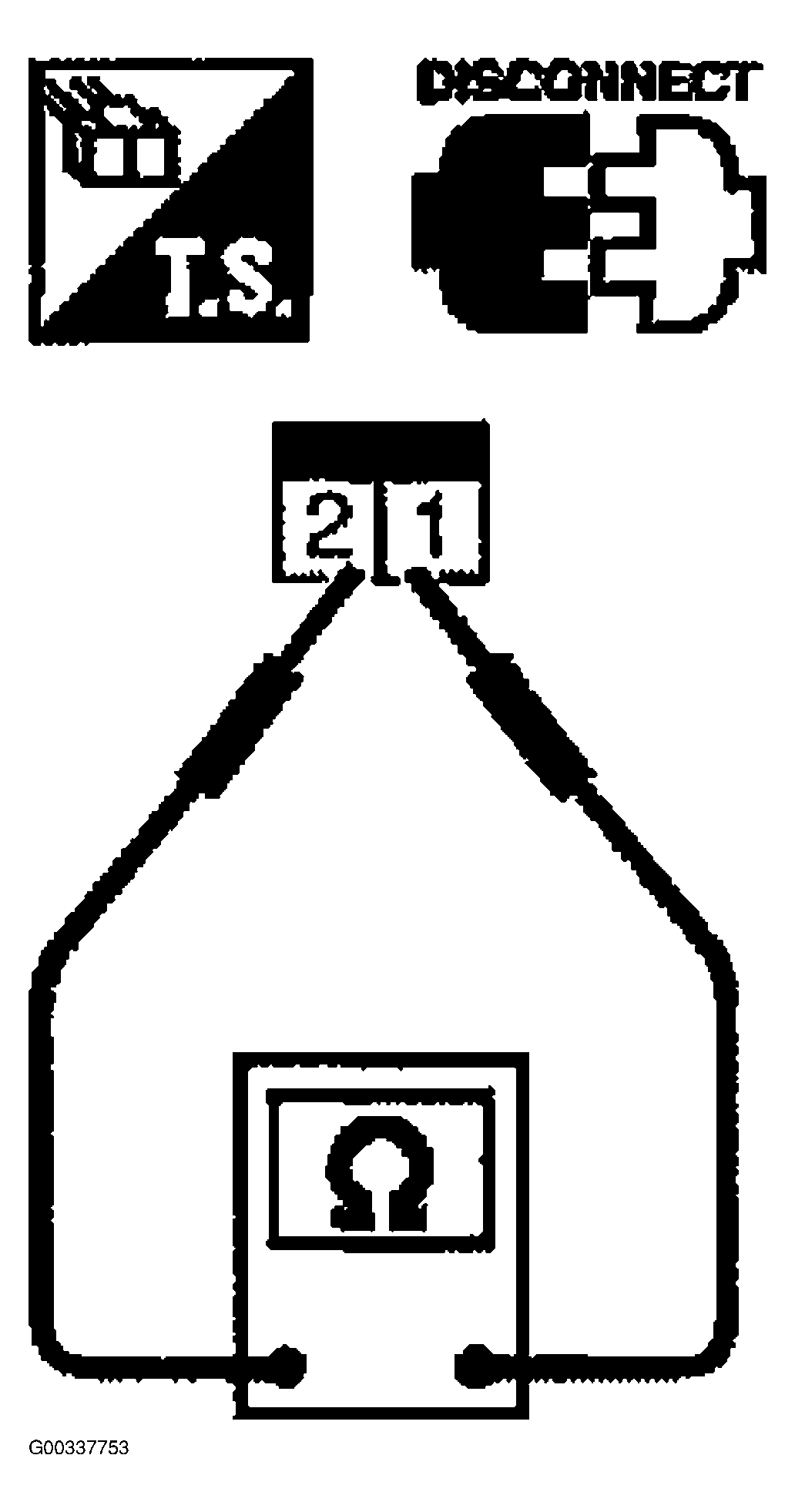

Fig 1: Checking Switch Continuity (1 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.

If NG, adjust stop lamp switch installation, refer to ADJUSTMENTS and perform step 3 again.

Fig 2: Checking Switch Continuity (2 Of 2)

G00337753

Courtesy of NISSAN MOTOR CO., U.S.A.
