Monitored Item

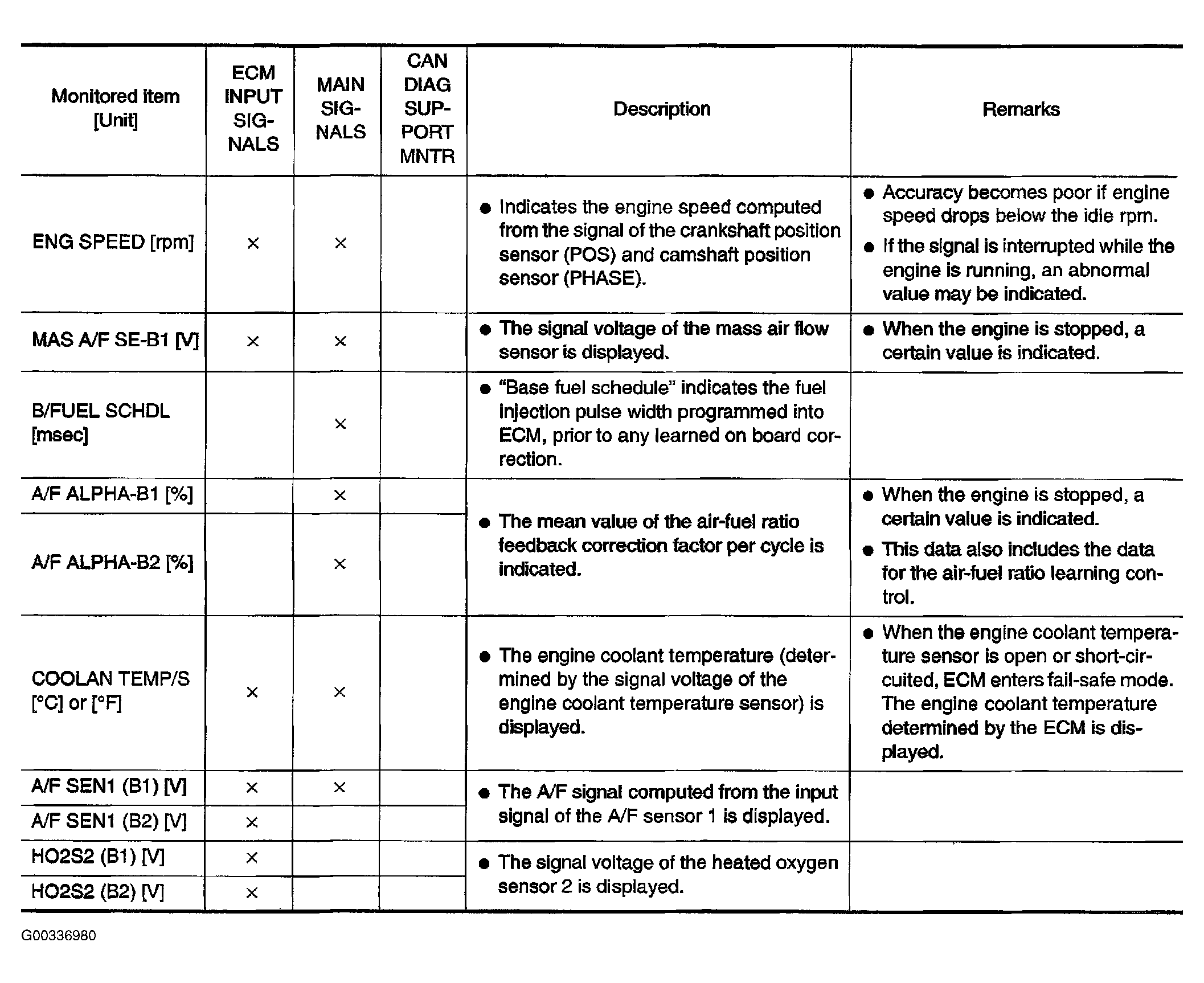

Fig 1: Monitored Item (1 Of 5)

Courtesy of NISSAN MOTOR CO., U.S.A.

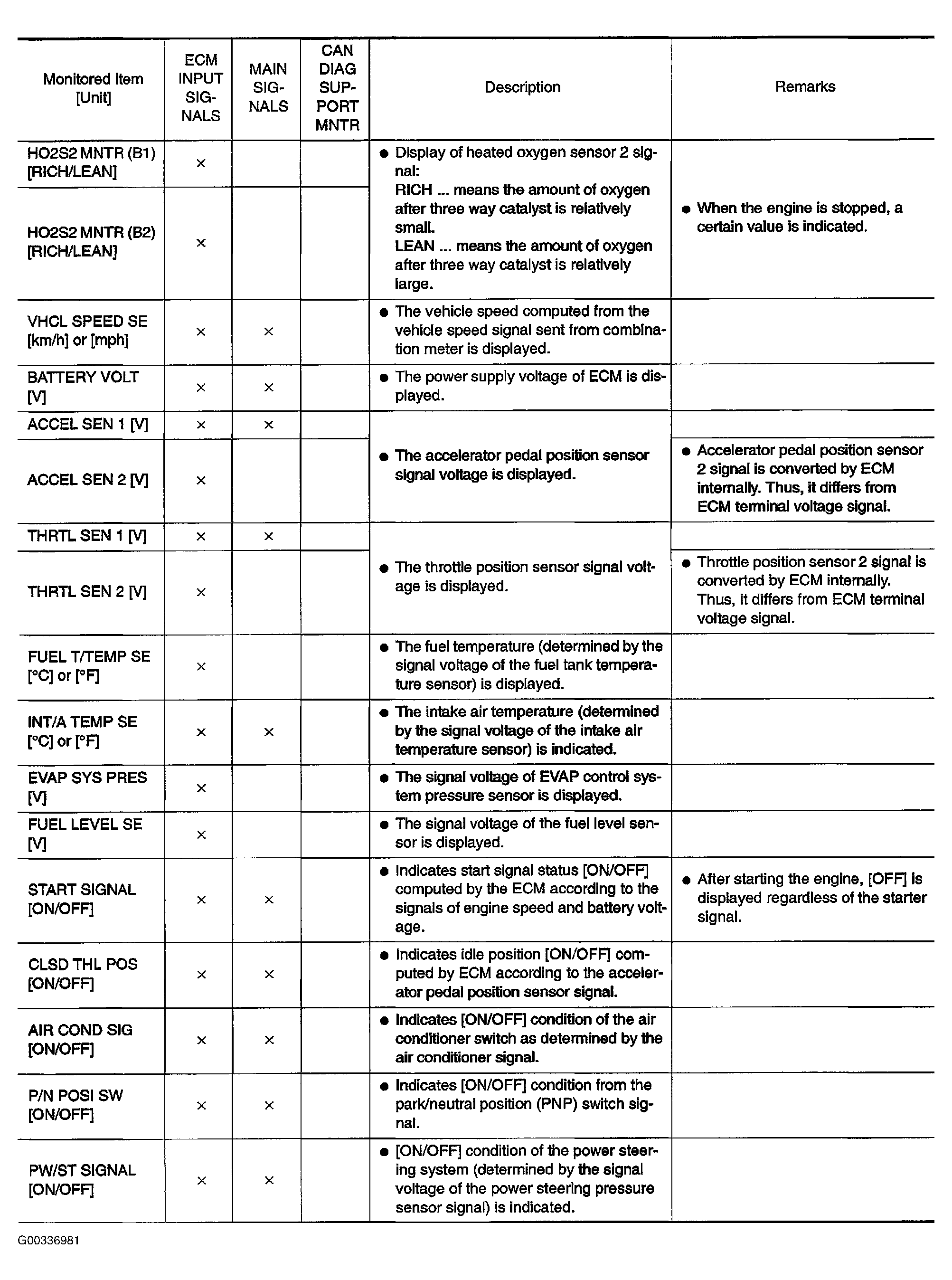

Fig 2: Monitored Item (2 Of 5)

Courtesy of NISSAN MOTOR CO., U.S.A.

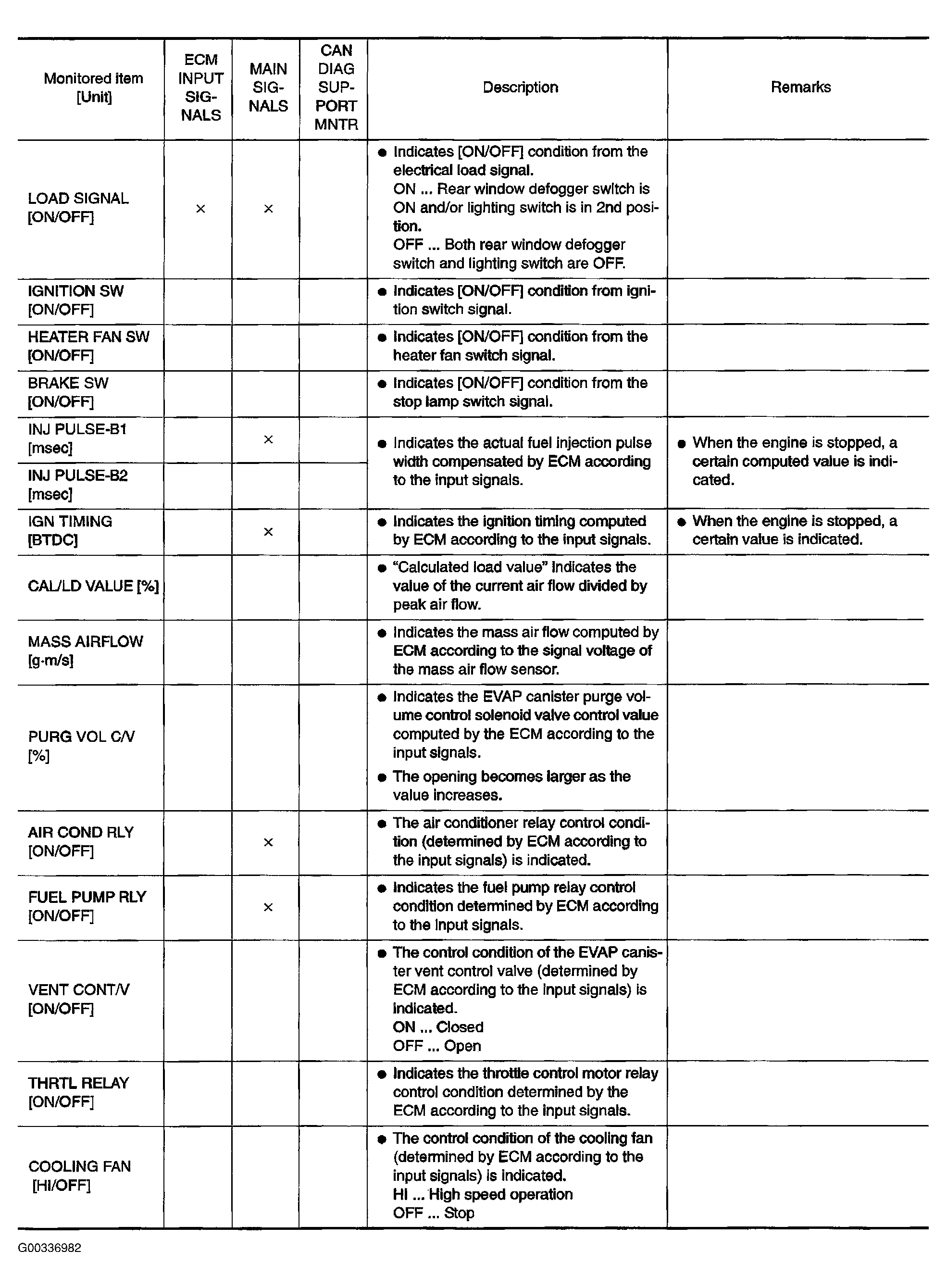

Fig 3: Monitored Item (3 Of 5)

Courtesy of NISSAN MOTOR CO., U.S.A.

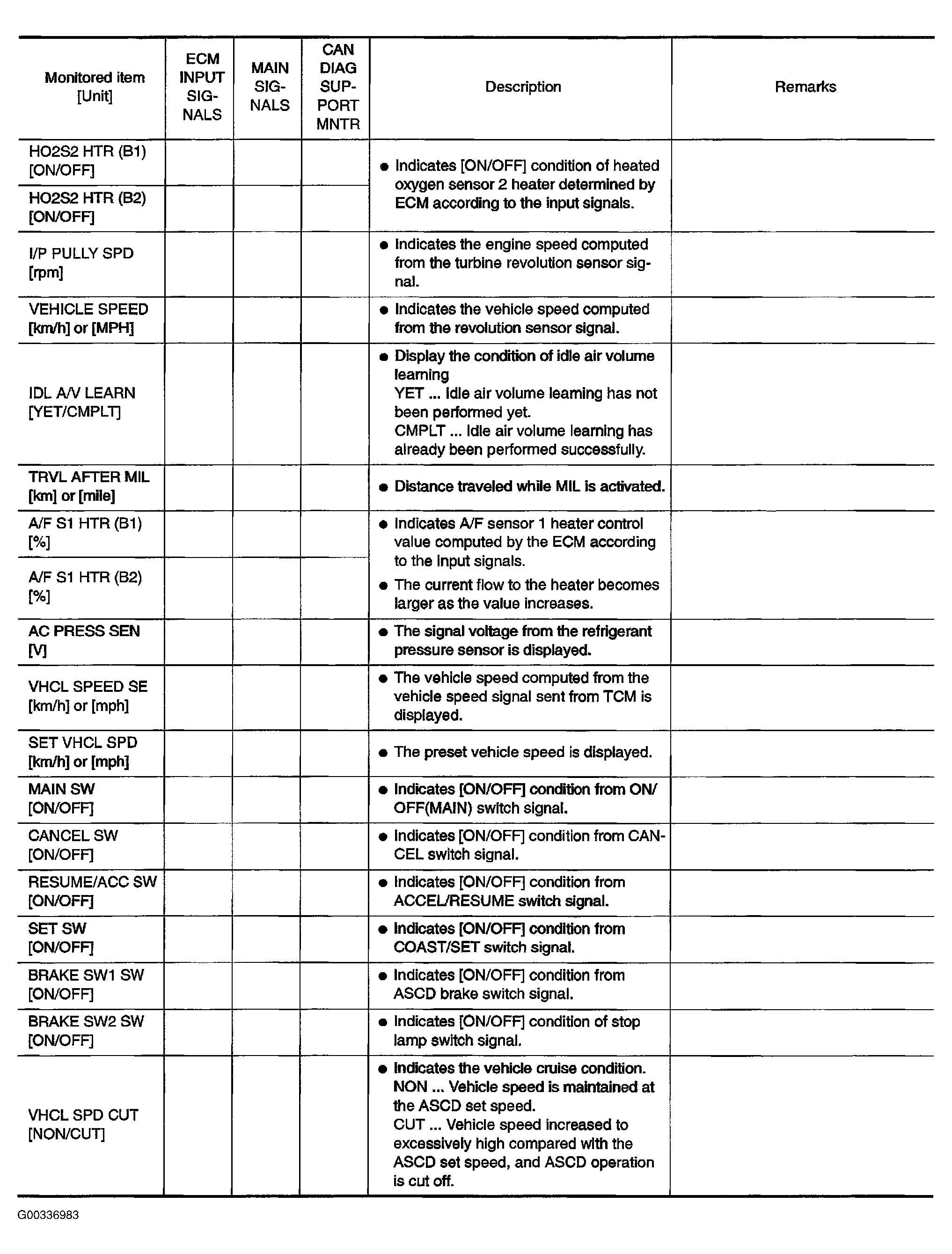

Fig 4: Monitored Item (4 Of 5)

Courtesy of NISSAN MOTOR CO., U.S.A.

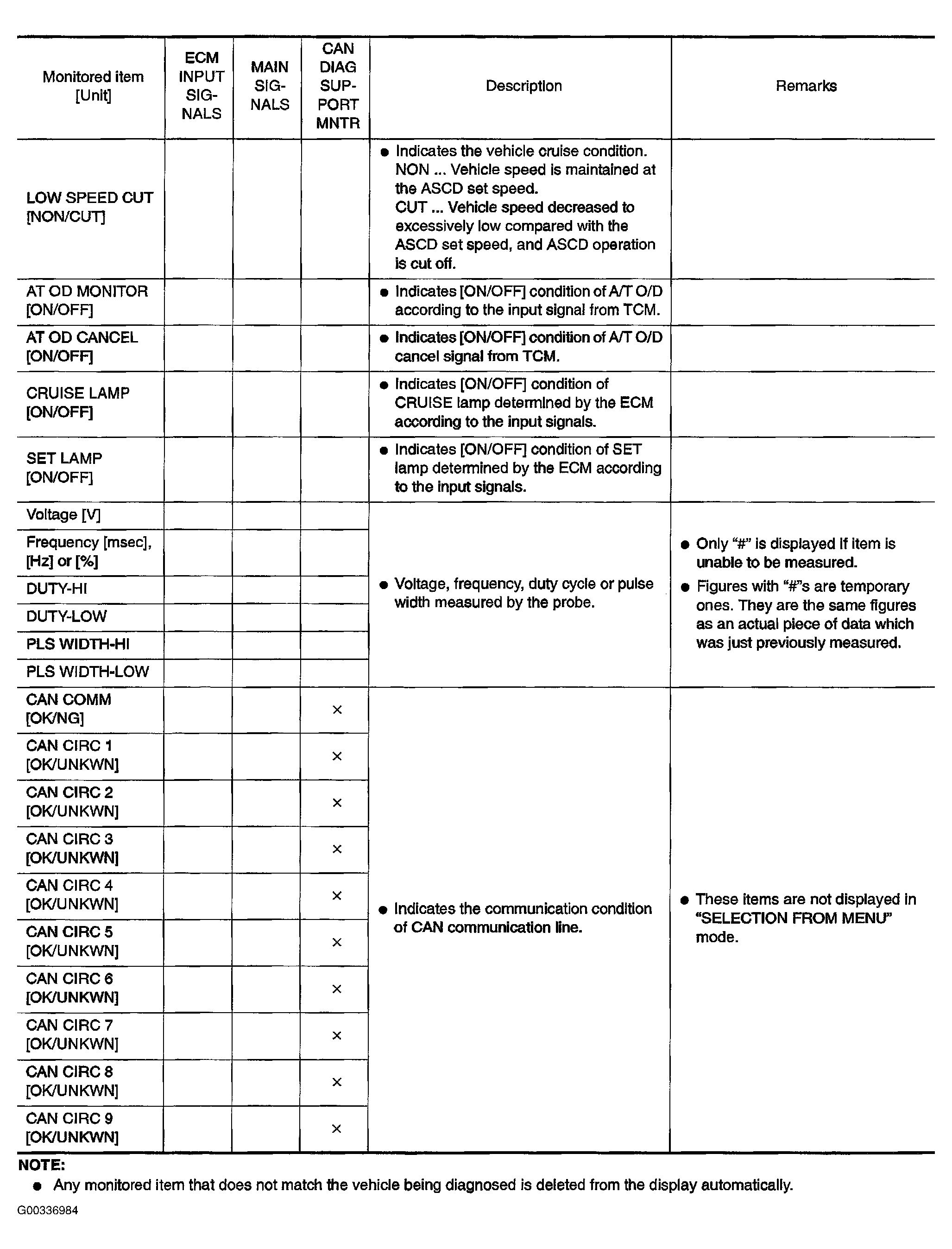

Fig 5: Monitored Item (5 Of 5)

Courtesy of NISSAN MOTOR CO., U.S.A.

NOTE: Any monitored item that does not match the vehicle being diagnosed is deleted from the display automatically.

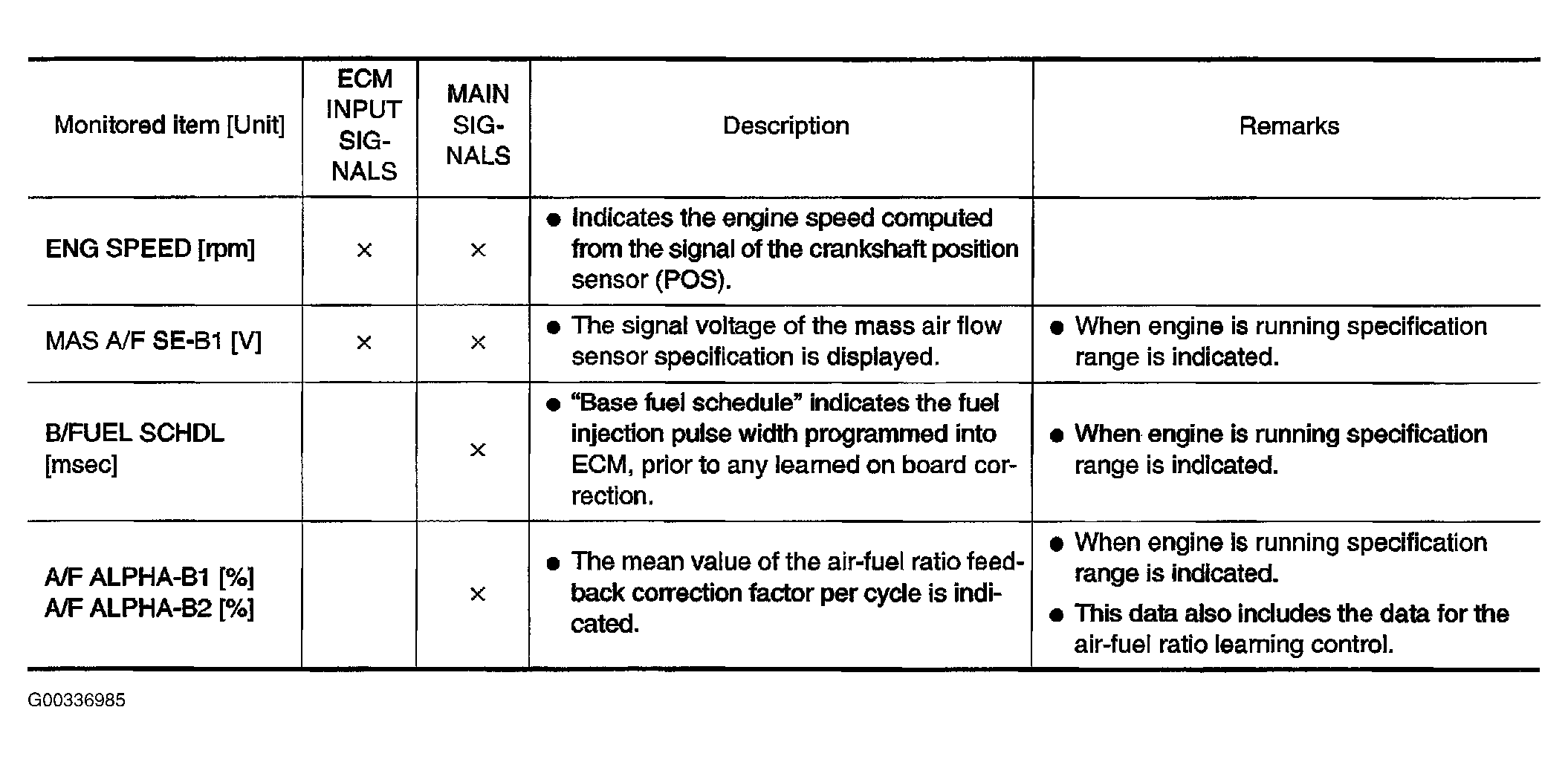

Fig 1: Monitored Item

Courtesy of NISSAN MOTOR CO., U.S.A.

NOTE: Any monitored item that does not match the vehicle being diagnosed is deleted from the display automatically.
