1. Check Ground Connections

  1. Turn ignition switch OFF.
  2. Loosen and retighten ground three screws on the body.

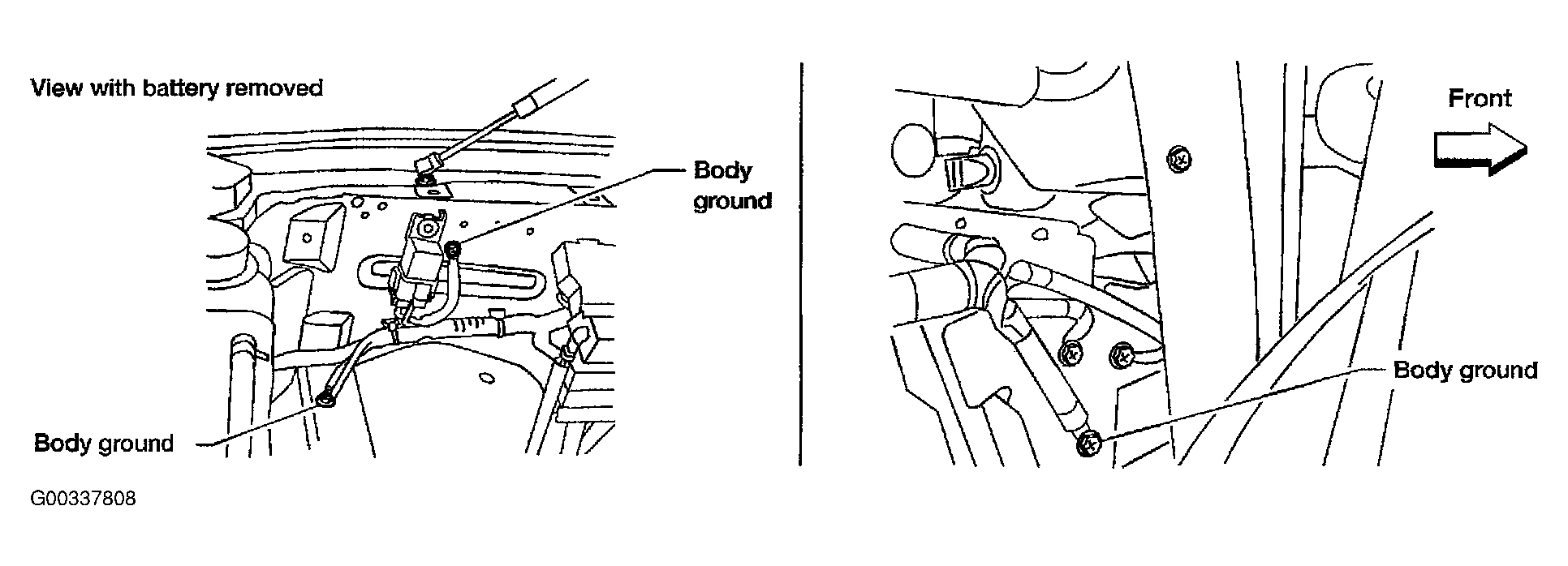

    Fig 1: Locating Ground Screws
    G00337808Courtesy of NISSAN MOTOR CO., U.S.A.

    Refer to Ground Inspection  .

OK or NG

OK >> GO TO 2. CHECK THROTTLE POSITION SENSOR POWER SUPPLY CIRCUIT-I .

NG >> Repair or replace ground connections.
