Inspection Procedure

WARNING: This page is about a different variant/trim than selected.

Turn ignition switch OFF.
Connect CONSULT-II and CONSULT-II CONVERTER to data link connector which is located under LH dash panel near the fuse box cover.

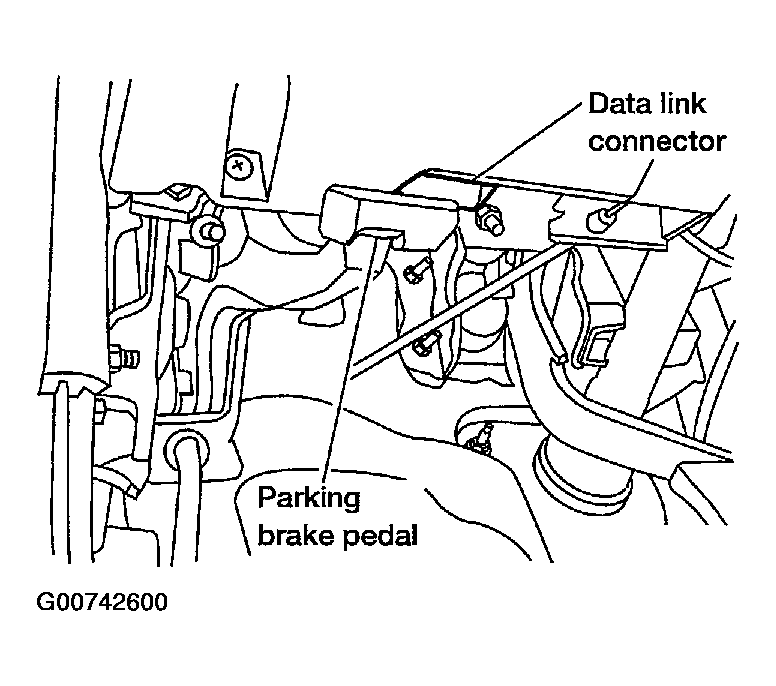

Fig 1: Locating Data Link Connector
Courtesy of NISSAN MOTOR CO., U.S.A.
Turn ignition switch ON.
Touch "START (NISSAN BASED VHCL)".

Fig 2: Reading "START" In "CONSULT-II" Mode
Courtesy of NISSAN MOTOR CO., U.S.A.
Touch "ENGINE".
1. If "ENGINE" is not indicated, go to "CONSULT-II DATA LINK CONNECTOR (DLC) CIRCUIT ".
Fig 3: Reading "ENGINE" In "CONSULT-II" Mode
Courtesy of NISSAN MOTOR CO., U.S.A.
Perform each diagnostic test mode according to each service procedure.

For further information, see the CONSULT-II Operation Manual.

Fig 4: Reading Diagnostic Test Modes In "SELECT DIAG MODE"

Courtesy of NISSAN MOTOR CO., U.S.A.
