With CONSULT-II

  1. Start engine
  2. Read vehicle speed sensor signal in "DATA MONITOR" mode with CONSULT-II. The vehicle speed on CONSULT-II should exceed 10 Km/h (6 MPH) when rotating wheels with suitable gear position.
  3. If NG, go to "WIRING DIAGRAM ".

    If OK, go to following step.

  4. Select "DATA MONITOR" mode with CONSULT-II.

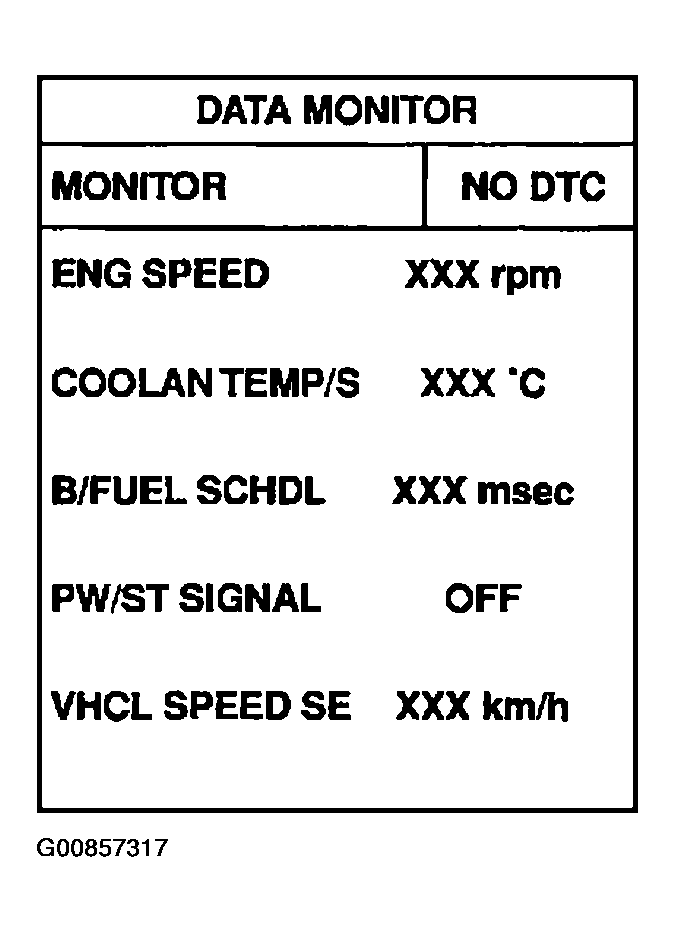

    Fig 1: Scan Tool Display - Data Monitor
    G00857317Courtesy of NISSAN MOTOR CO., U.S.A.
  5. Warm engine up to normal operating temperature.
  6. Maintain the following conditions for at least 1 minute.
    Fig 2: Engine Speed Chart
    G00857318Courtesy of NISSAN MOTOR CO., U.S.A.
  7. If 1st trip DTC is detected, go to "WIRING DIAGRAM ".
