Description for Work Flow

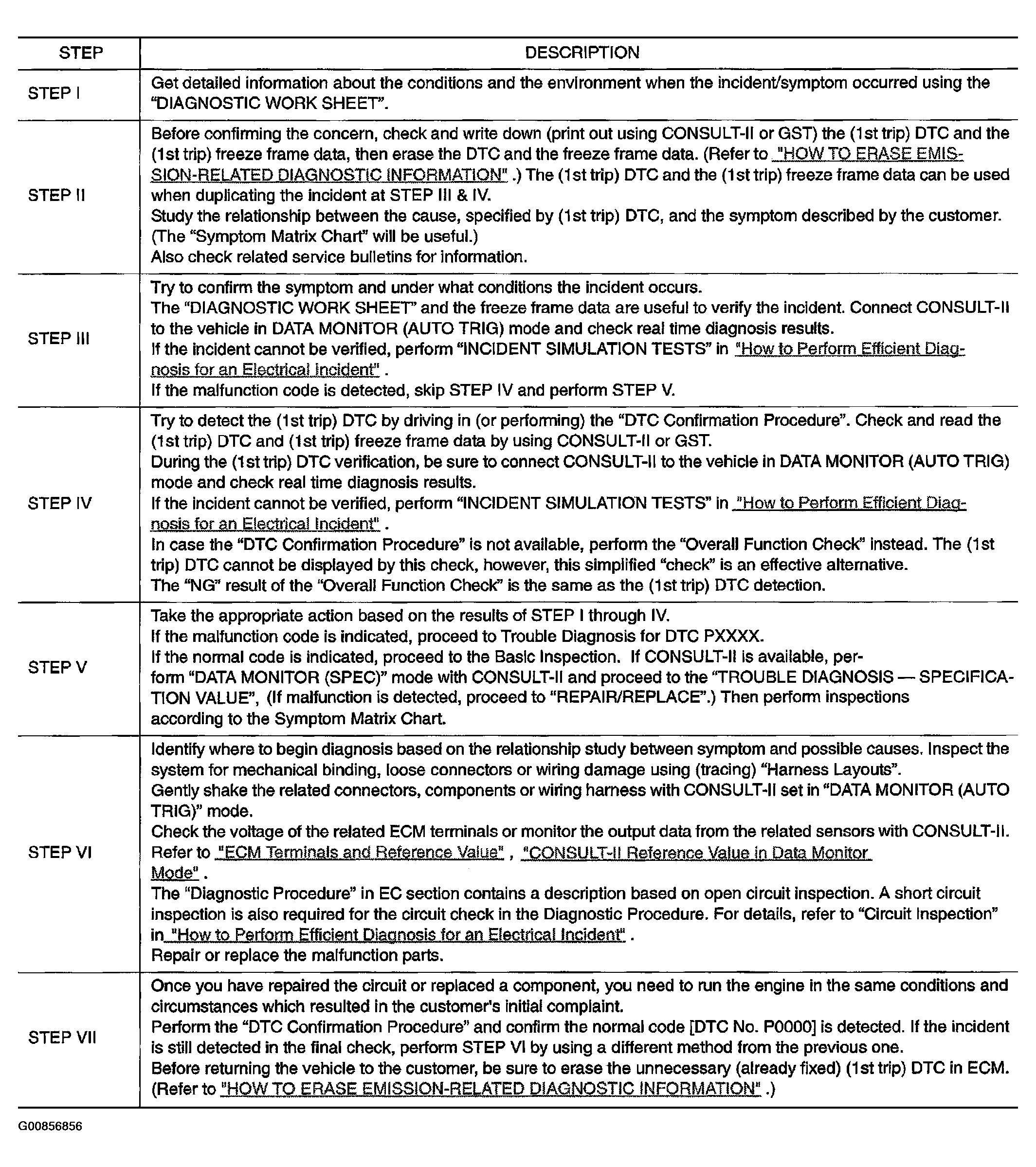

Fig 1: Description For Work Flow Chart

G00856856

Courtesy of NISSAN MOTOR CO., U.S.A.
