SRT Service Procedure

If a vehicle has failed the State emissions inspection due to one or more SRT items indicating "INCMP", review the following flowchart diagnostic sequence on the next page.

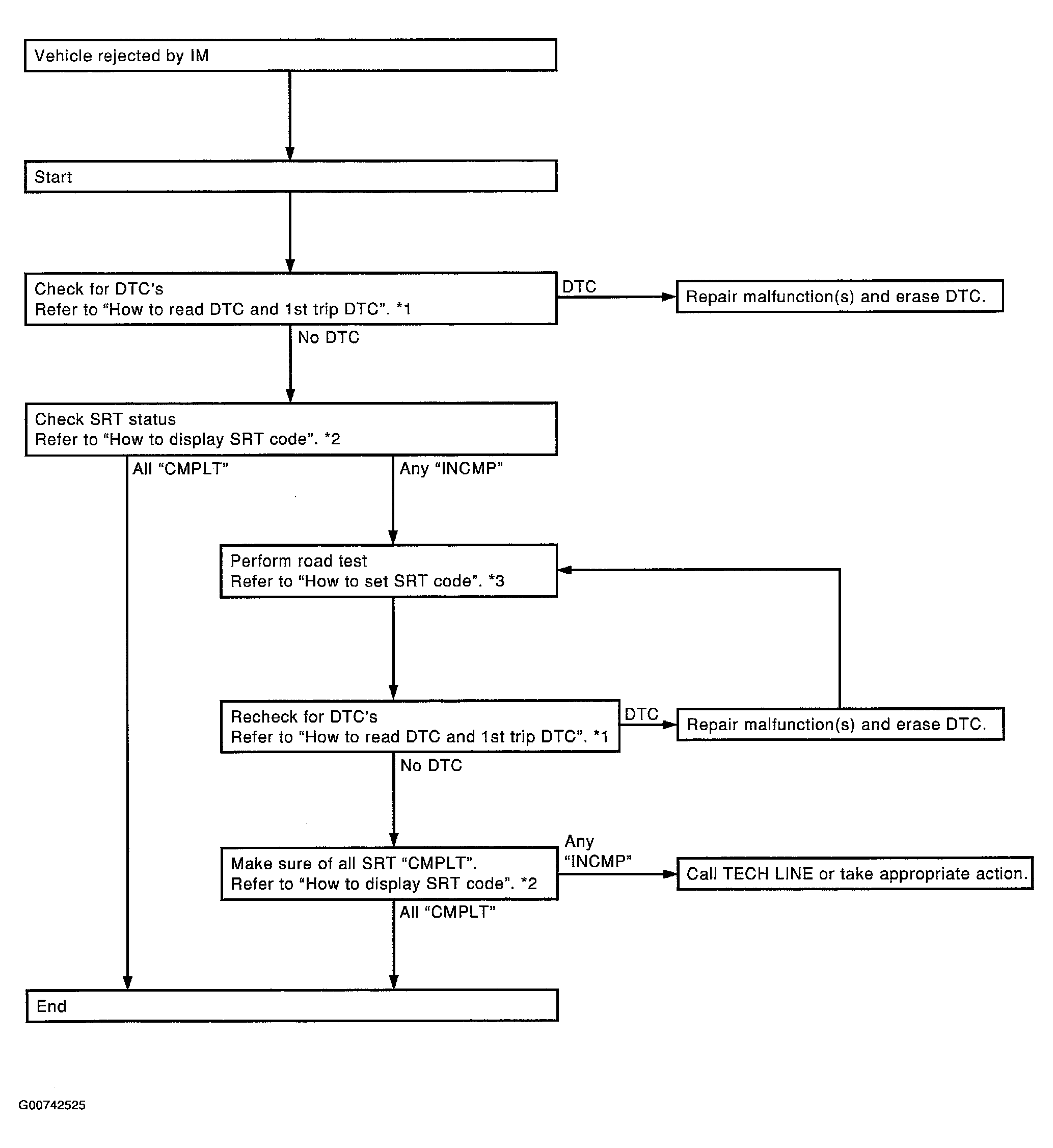

Fig 1: SRT Service Procedure Flowchart

Courtesy of NISSAN MOTOR CO., U.S.A.

*1  Refer to How to Read DTC and 1st Trip DTC .

*2  Refer to How to Display SRT Code .

*3  Refer to How to Set SRT Code .
