Fail-safe Chart
When the DTC listed below is detected, the ECM enters the fail-sate mode and the MIL illuminates.

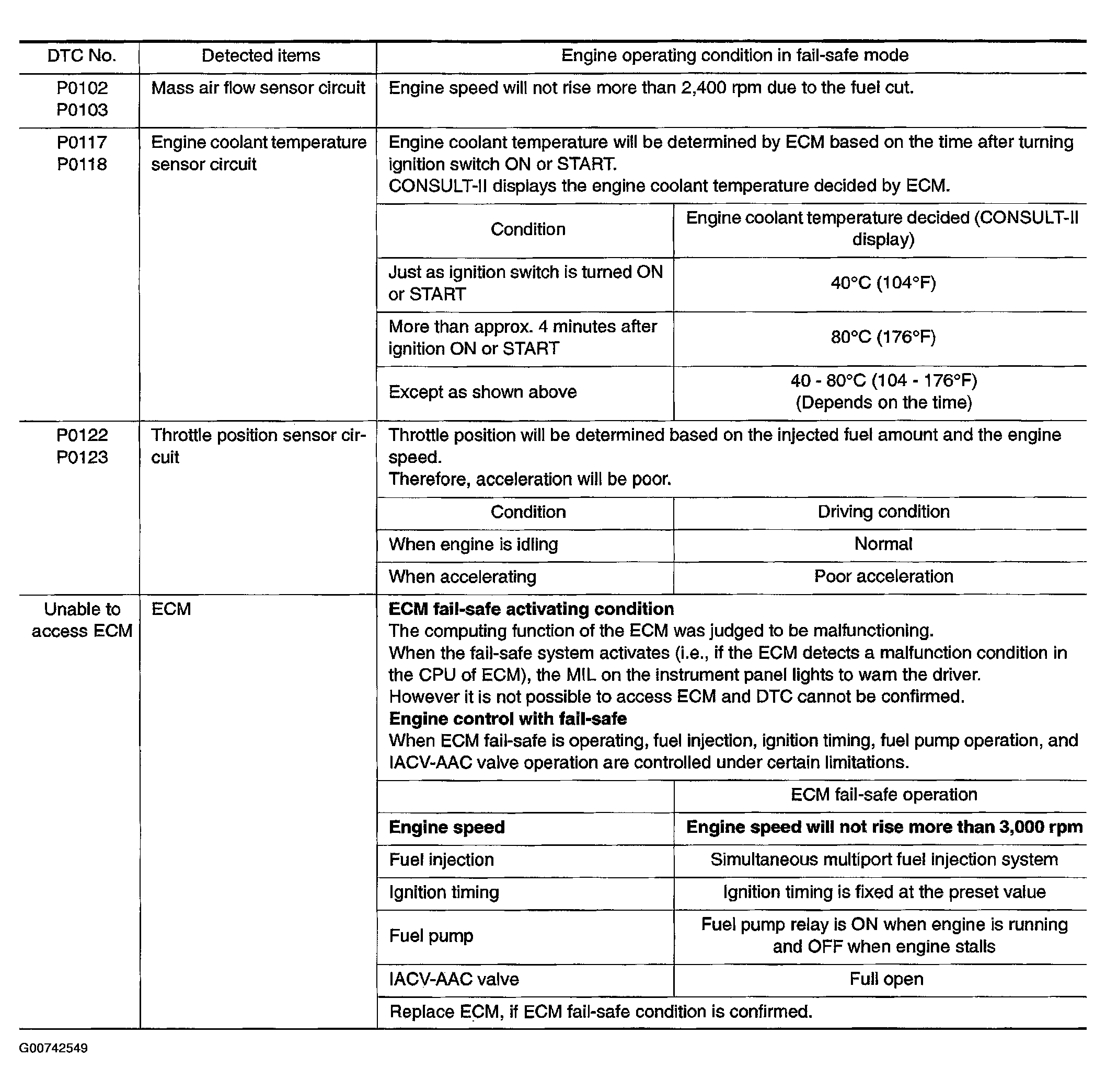

Fig 1: Fail-Safe Chart
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
