Procedure For Malfunction B

With CONSULT-II

1. Start engine and warm it up to normal operating temperature.
2. Turn ignition switch OFF and wait at least 5 seconds.
3. Turn ignition switch ON.
4. Select "MANU TRIG" in "DATA MONITOR" mode with CONSULT-II.
5. Select "THRTL POS SEN" and "ABSOL TH.P/S" in "DATA MONITOR" mode with CONSULT-II.
6. Press RECORD on CONSULT-II screen at the same time accelerator pedal is depressed.
7. Print out the recorded graph and check the following:
   • The voltage rise is linear in response to accelerator pedal depression.
   • The voltage when accelerator pedal is fully depressed is approximately 4V.
   1. If NG, go to "DIAGNOSTIC PROCEDURE ".
   2. If OK, go to following step.
      Fig 1: Reading "THRTL POS SEN" And "ABSOL TH.P/S" In "DATA MONITOR" Mode

      Courtesy of NISSAN MOTOR CO., U.S.A.

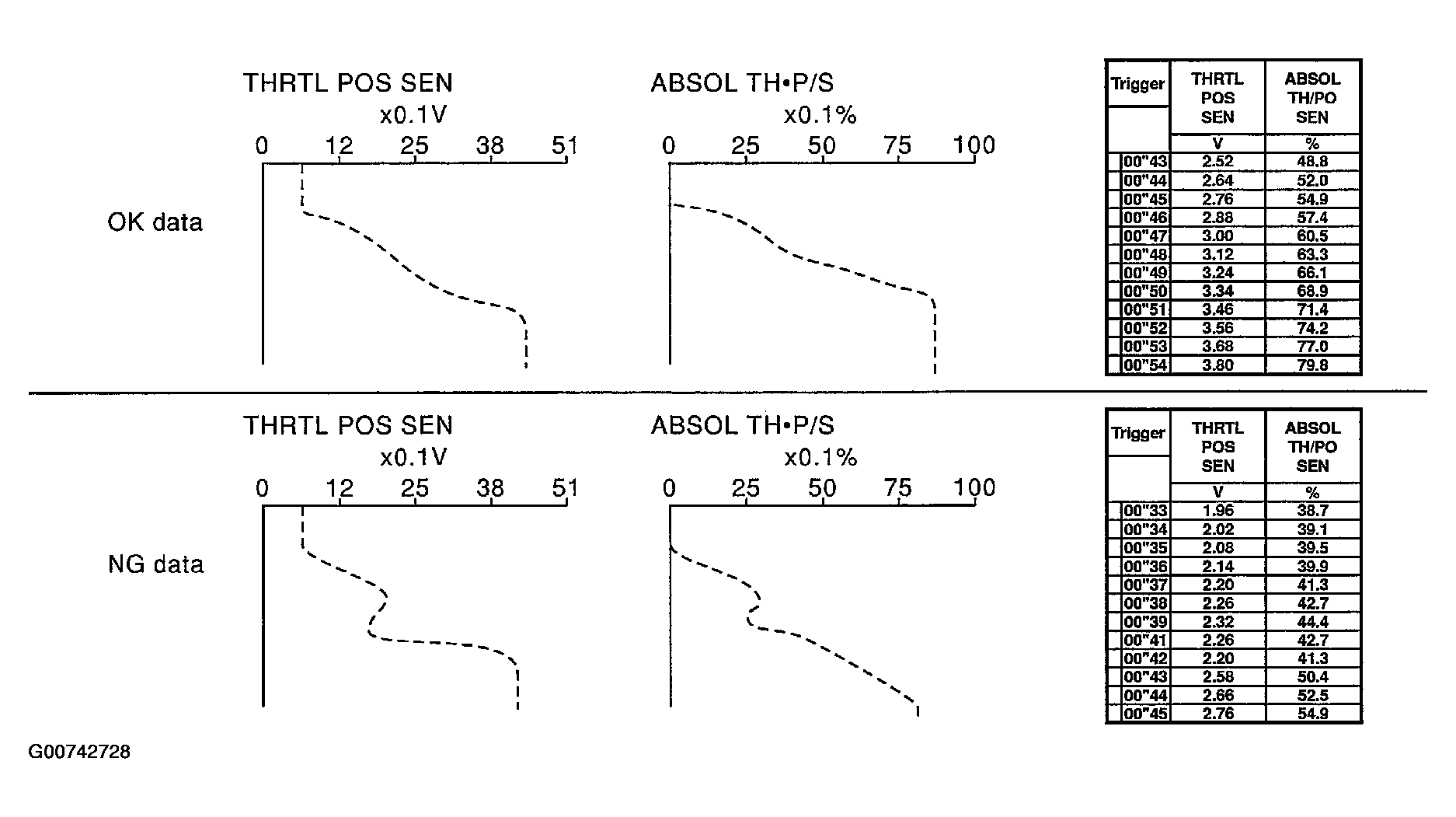

      Fig 2: "THRTL POS SEN" And "ABSOL TH.P/S" Graph

      Courtesy of NISSAN MOTOR CO., U.S.A.
8. Select "AUTO TRIG" in "DATA MONITOR" mode with CONSULT-II.
9. Maintain the following conditions for at least 10 consecutive seconds.
   Fig 3: Conditions Chart

   Courtesy of NISSAN MOTOR CO., U.S.A.
   Fig 4: Reading "Data Monitor"

   Courtesy of NISSAN MOTOR CO., U.S.A.
10. If 1st trip DTC is detected, go to "DIAGNOSTIC PROCEDURE ".

With GST

Follow the procedure "With CONSULT-II".
